Wastewater/Activity/PacpInspection/1.0Oct 26, 2016, 10:32 AM
02 0868_02 0867_20161026_033929.mp4
- Date
- 10/26/2016
- W/O
- 591974
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00297
- PipeID
- P03435
- Time
- 3:32 AM
- Certificate
- U-507-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3749
- Sewer Name
- 02 OLD RIVER SCHOOL ROAD RELIEF TRUNK, SECTS 2&3
- City
- DOWNEY, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 24
- Purpose
- Routine Assessment
- Project
- WO_591974_TV02216_SEP2016
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Width
- 27 in.
- Upstream MH
- 02 0868
- Downstream MH
- 02 0867
- Dir. of Survey
- Downstream
- Length Surveyed
- 10.1 ft.
- Total Length
- 10.2 ft.
- Structural Index
- 3
- Structural Quick
- 3200
- Structural Rating
- 6
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (2)

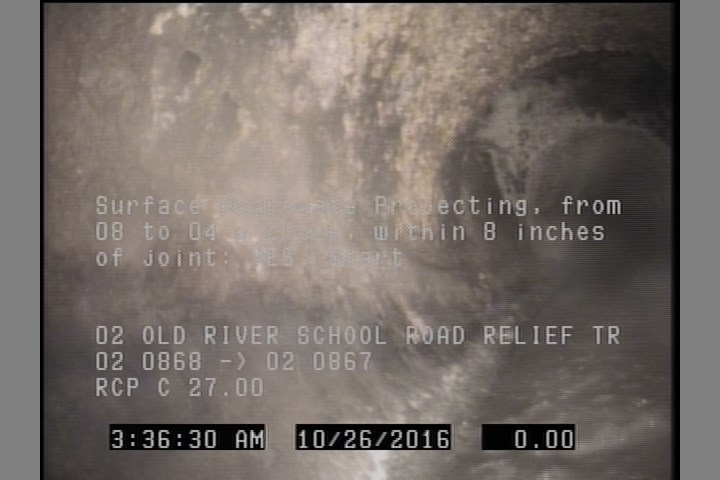

1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

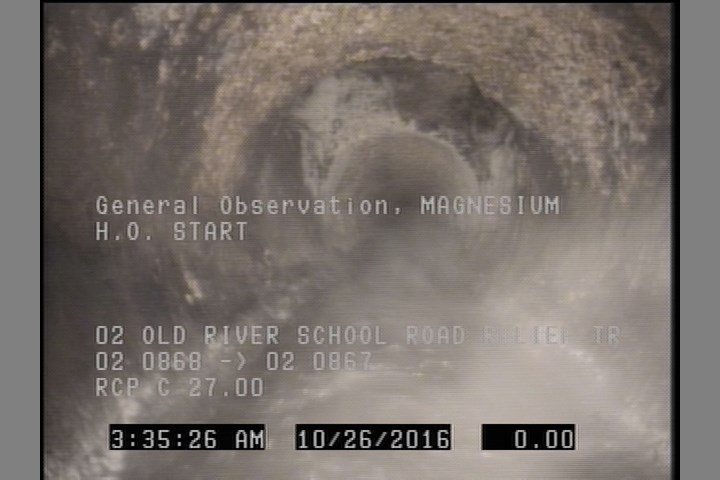

2 ft. - General Observation - MAGNESIUM H.O. START
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 1 | SAP | — |
| 0 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 0 | MWM | — |
| 10.2 | AMH | 02 0867 |
| 0 | MWL | — |
| 10.2 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 2 | MGO | MAGNESIUM H.O. START |
| 10.2 | MGP | CONNECTION ABANDONED 9 O'CLOCK |
| 2 | MGO | RIBCAGE EFFECT |
| 0 | AMH | 02 0868 |
| 8.9 | SAP | — |
Properties (5)
- additional_info
- SC303740
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-10-26T03:32:00-07:00
- sewer_category
- Gravity
