Wastewater/Activity/PacpInspection/1.0Oct 27, 2016, 09:21 AM
D 0107_D 0106 _20161027_015218.mp4
- Date
- 10/27/2016
- W/O
- 591730
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00156
- PipeID
- P10013
- Time
- 2:21 AM
- Certificate
- U-507-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3750
- Sewer Name
- D JOINT OUTFALL D - UNIT 6
- City
- HAWTHORNE, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 16
- Purpose
- Routine Assessment
- Project
- WO_591730_TV05172_SEP2016
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 33 in.
- Width
- 33 in.
- Upstream MH
- D 0107
- Downstream MH
- D 0106
- Dir. of Survey
- Downstream
- Length Surveyed
- 560 ft.
- Total Length
- 560 ft.
- Structural Index
- 2
- Structural Quick
- 322U
- Structural Rating
- 224
- O&M Index
- 2
- O&M Quick
- 2U00
- O&M Rating
- 222
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 446
Observation photos (4)

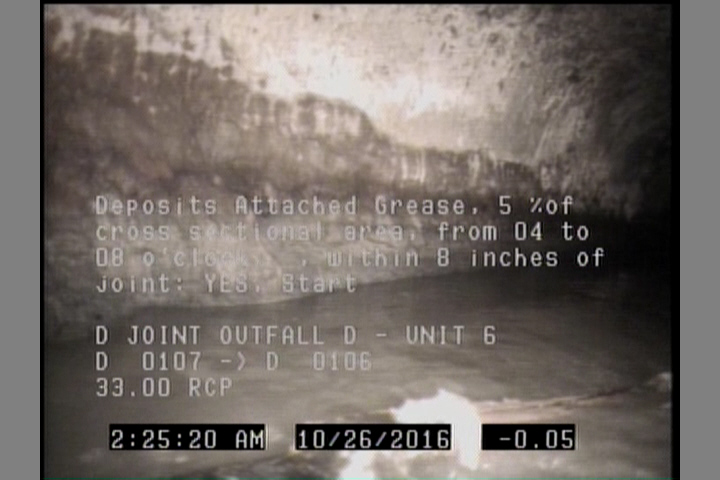

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

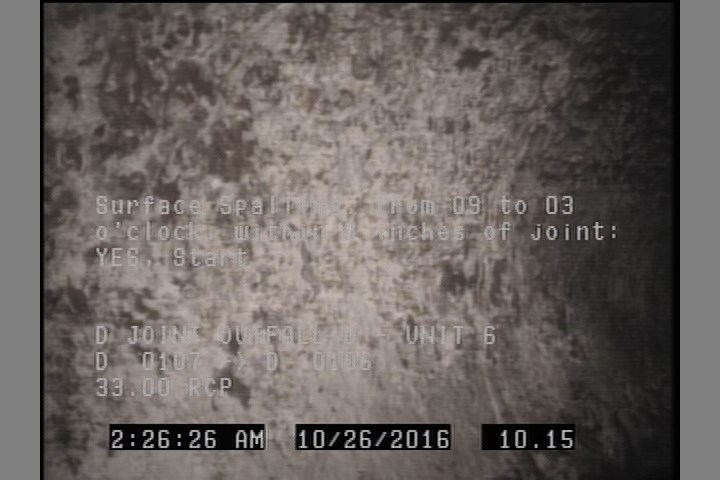

10.1 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

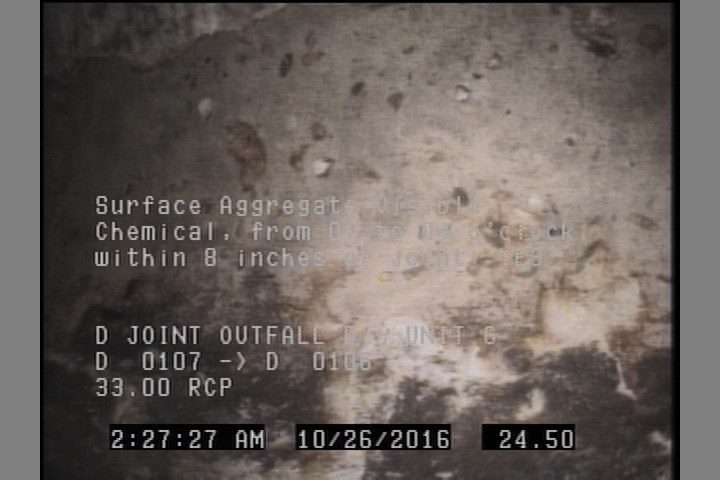

24.5 ft. - Surface Aggregate Visible Chemical, from 01 to 04 o'clock, within 8 inches of joint: YES

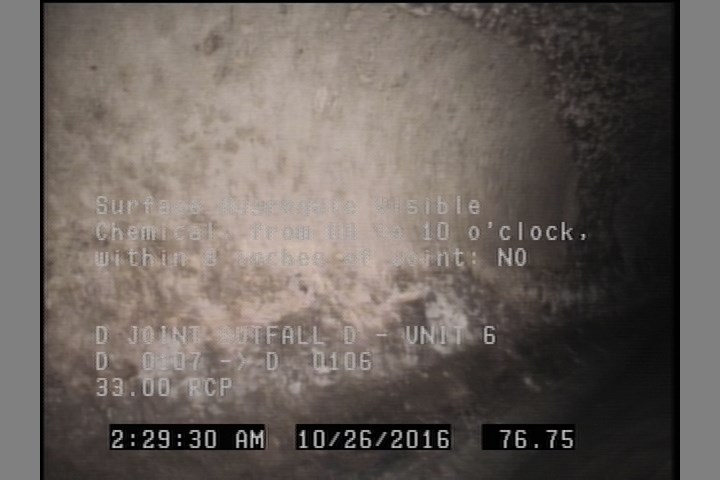

76.8 ft. - Surface Aggregate Visible Chemical, from 08 to 10 o'clock, within 8 inches of joint: NO
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 2 | MGO | MAGNESIUM H.O. START |
| 0 | MWM | — |
| 556.4 | SSS | — |
| 560 | AMH | D 0106 |
| 24.5 | SAVC | — |
| 76.8 | SAVC | — |
| 0 | MWL | — |
| 560 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 2 | DAGS | — |
| 10.1 | SSS | — |
| 0 | AMH | D 0107 |
| 0 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 556.3 | DAGS | — |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK |
Properties (5)
- additional_info
- SC303742
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-10-27T02:21:00-07:00
- sewer_category
- Gravity
