Wastewater/Activity/PacpInspection/1.0Jun 9, 2017, 04:44 PM
19 0180_19 0179_692017_094541.mp4
- Date
- 06/09/2017
- W/O
- 0645066
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00719
- PipeID
- P15148
- Time
- 9:44 AM
- Certificate
- 415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7431
- Sewer Name
- 19 CERRITOS TRUNK
- City
- CERRITOS
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 19
- Page No.
- 05
- Purpose
- Routine Assessment
- Project
- 20170608DF_CERRITOS_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 19 0180
- Downstream MH
- 19 0179
- Dir. of Survey
- Downstream
- Length Surveyed
- 347.7 ft.
- Total Length
- 347.7 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (6)

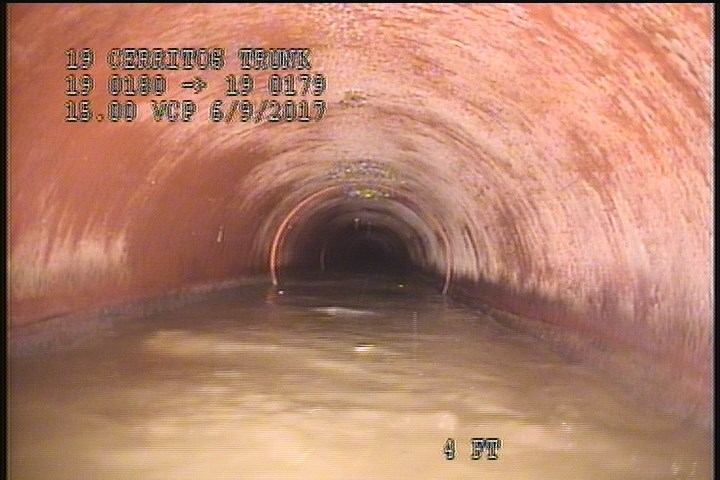

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
2.3 ft. - Deposits Attached Encrustation, 10 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

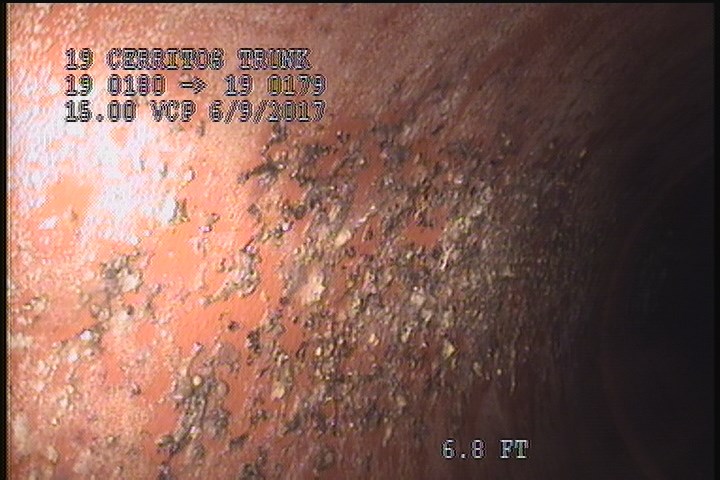

6.8 ft. - General Photograph - ENCRUSTATION

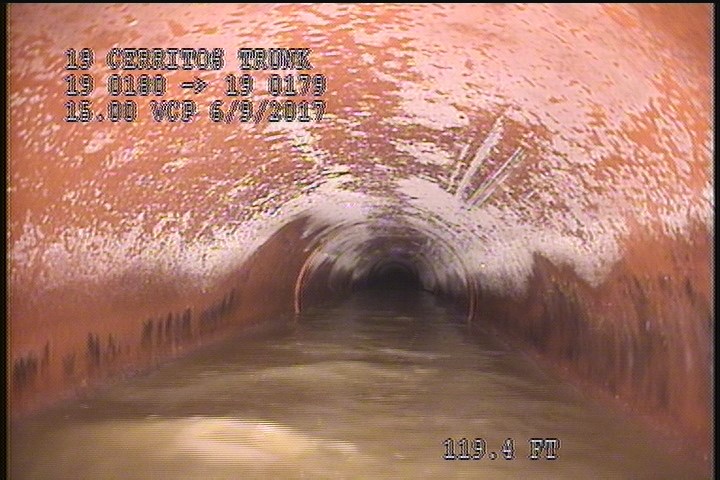

119.4 ft. - General Photograph - SPALLING

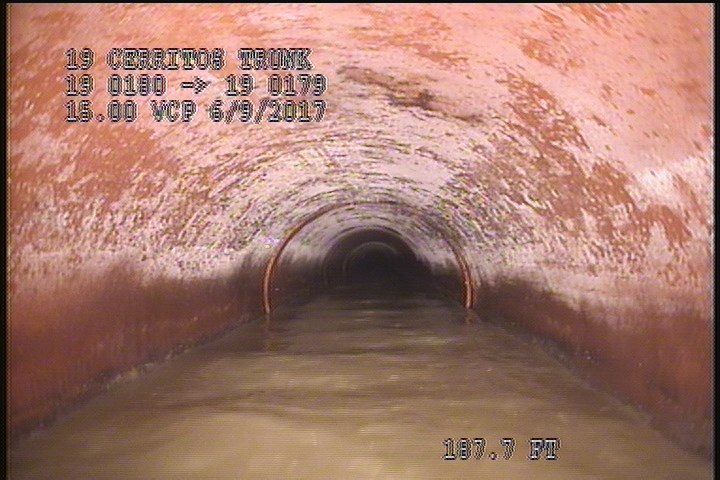

187.7 ft. - General Photograph - SPALLING

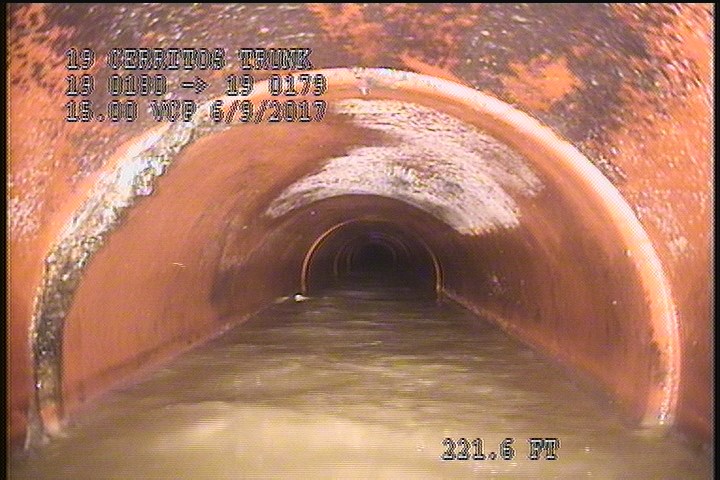

223.1 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 07 to 10 o'clock, , within 8 inches of joint: YES
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 6.8 | MGP | ENCRUSTATION |
| 345.9 | SSS | — |
| 345.9 | DAE | — |
| 2 | SSS | — |
| 223.1 | DAE | — |
| 119.4 | MGP | SPALLING |
| 0.1 | MWM | — |
| 187.7 | MGP | SPALLING |
| 0.1 | MWL | — |
| 2.3 | DAE | — |
| 347.7 | AMH | 10:05 AM |
| 0 | AMH | 9:45 AM |
| 347.7 | MGO | ROACHES @ MH |
Properties (3)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-06-09T09:44:59-07:00
