Wastewater/Activity/PacpInspection/1.0Jun 8, 2017, 06:17 PM
19 0182_19 0181_682017_112002.mp4
19 0182_19 0181_682017_112220.mp4
- Date
- 06/08/2017
- W/O
- PENDING
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00719
- PipeID
- P15151
- Time
- 11:17 AM
- Certificate
- 415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7431
- Sewer Name
- 19 CERRITOS TRUNK
- City
- CERRITOS
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 19
- Page No.
- 05
- Purpose
- Routine Assessment
- Project
- 20170608DF_CERRITOS_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 19 0182
- Downstream MH
- 19 0181
- Dir. of Survey
- Downstream
- Length Surveyed
- 138.8 ft.
- Total Length
- 138.8 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 2
- O&M Quick
- 2300
- O&M Rating
- 6
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (4)

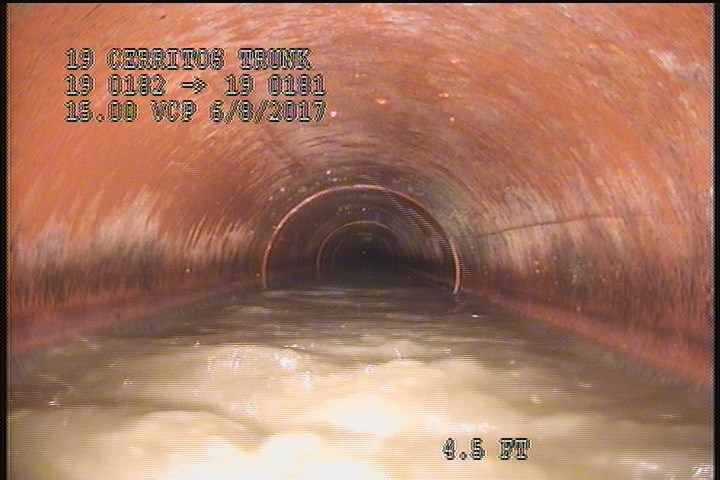

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

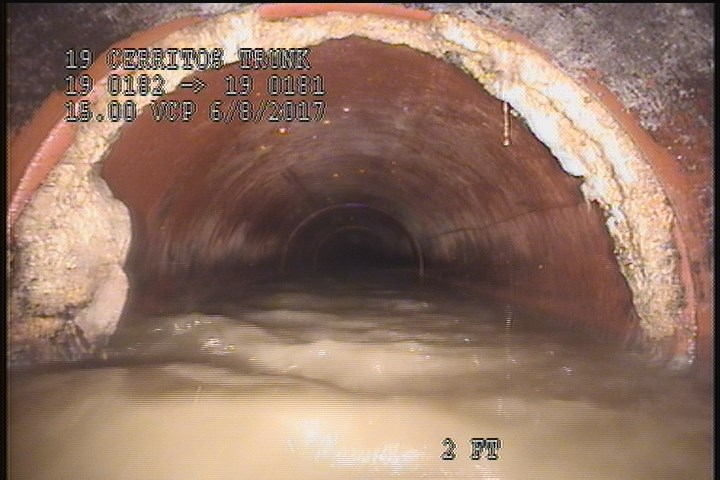

3.4 ft. - Deposits Attached Encrustation, 10 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES

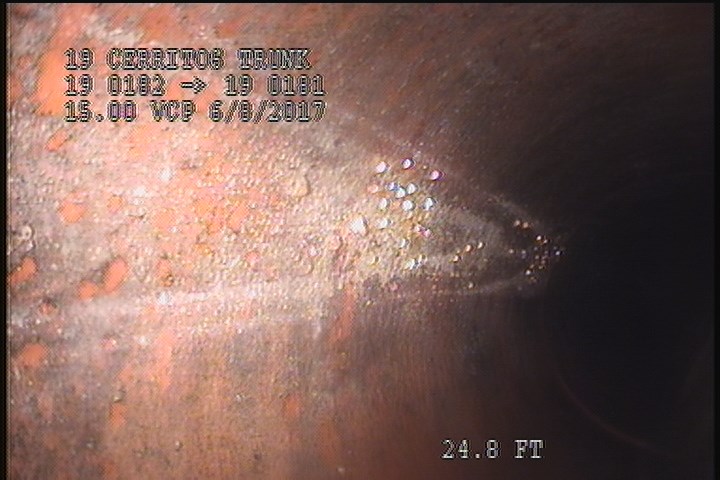

9.5 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 10 to 02 o'clock, , within 8 inches of joint: YES, Start

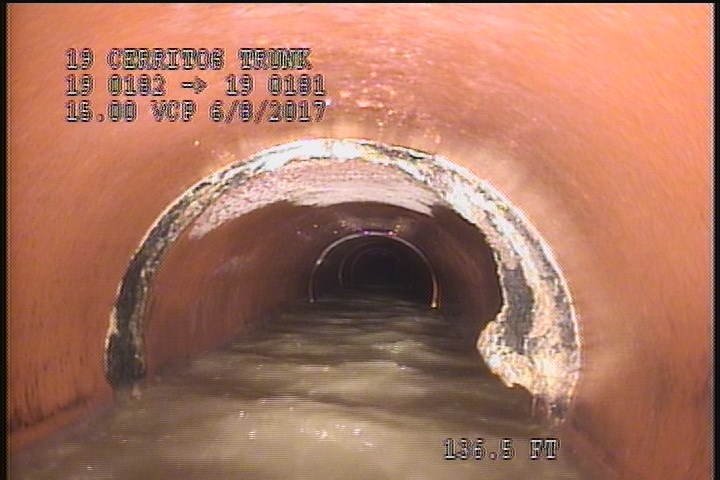

138.4 ft. - Deposits Settled Compacted, 10 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 138.8 | MSA | ENCRUSTATION |
| 138.8 | SSS | — |
| 138.4 | DSC | — |
| 9.5 | DAE | — |
| 3.4 | DAE | — |
| 2 | SSS | — |
| 0 | MWL | — |
| 138.8 | DAE | — |
| 0.1 | MWM | — |
| 0 | AMH | 11:18 AM |
Properties (2)
- customer
- LACSD
- datetime
- 2017-06-08T11:17:30-07:00
