Wastewater/Activity/PacpInspection/1.0Dec 2, 2016, 11:31 AM
05 0810_05 0809 _12022016_033524.mp4
- Date
- 12/02/2016
- W/O
- 602600
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00419
- PipeID
- P06041
- Time
- 3:31 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4026
- Sewer Name
- 05 ARLINGTON AVENUE EXTENSION TRUNK
- City
- HOLLY PARK
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 14
- Purpose
- Routine Assessment
- Project
- WO_602600_TV05009_NOV2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 10 in.
- Width
- 10 in.
- Upstream MH
- 05 0810
- Downstream MH
- 05 0809
- Dir. of Survey
- Downstream
- Length Surveyed
- 57.2 ft.
- Total Length
- 57.2 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2A00
- O&M Rating
- 22
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 22
Observation photos (1)

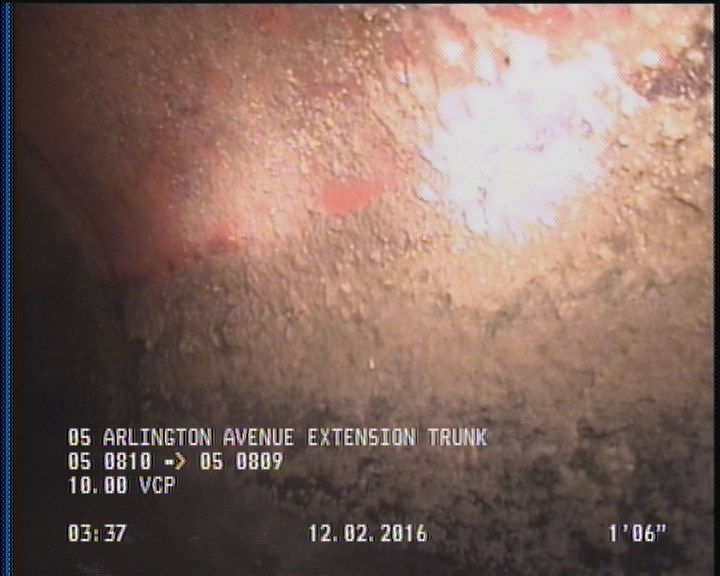

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 2 | DAGS | — |
| 0 | AMH | 05 0810 |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 0 | MWL | — |
| 57.2 | AMH | 05 0809 |
| 55.5 | DAGS | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 31.6 | TFC | — |
| 0 | MWM | — |
| 28.2 | TFC | — |
Properties (5)
- additional_info
- SC306418
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-12-02T03:31:52-08:00
- sewer_category
- Gravity
