Wastewater/Activity/PacpInspection/1.0Nov 29, 2016, 09:13 AM
05 0828_05 0827 _11292016_011357.mp4
- Date
- 11/29/2016
- W/O
- 602600
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00419
- PipeID
- P06058
- Time
- 1:13 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4023
- Sewer Name
- 05 ARLINGTON AVENUE EXTENSION TRUNK
- City
- LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 11
- Purpose
- Routine Assessment
- Project
- WO_602600_TV05009_NOV2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Width
- 8 in.
- Upstream MH
- 05 0828
- Downstream MH
- 05 0827
- Dir. of Survey
- Downstream
- Length Surveyed
- 258.7 ft.
- Total Length
- 258.7 ft.
- Structural Index
- 3
- Structural Quick
- 3I00
- Structural Rating
- 144
- O&M Index
- 2
- O&M Quick
- 2I00
- O&M Rating
- 102
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 246
Observation photos (3)

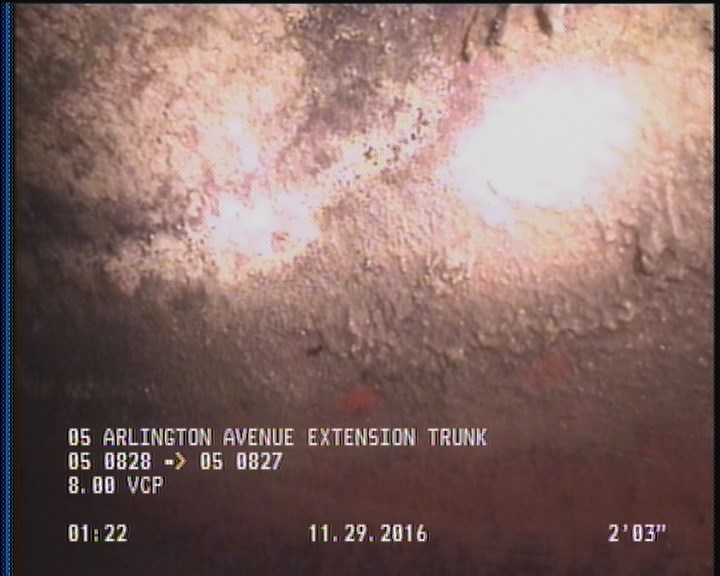

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

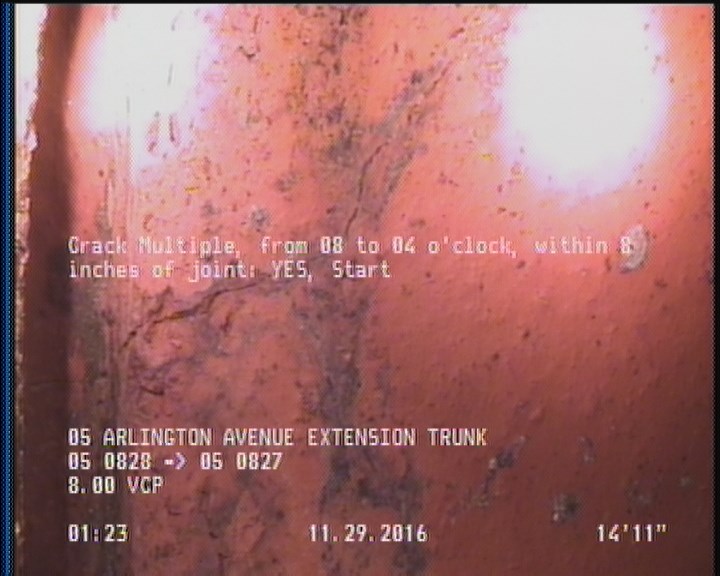

14.9 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

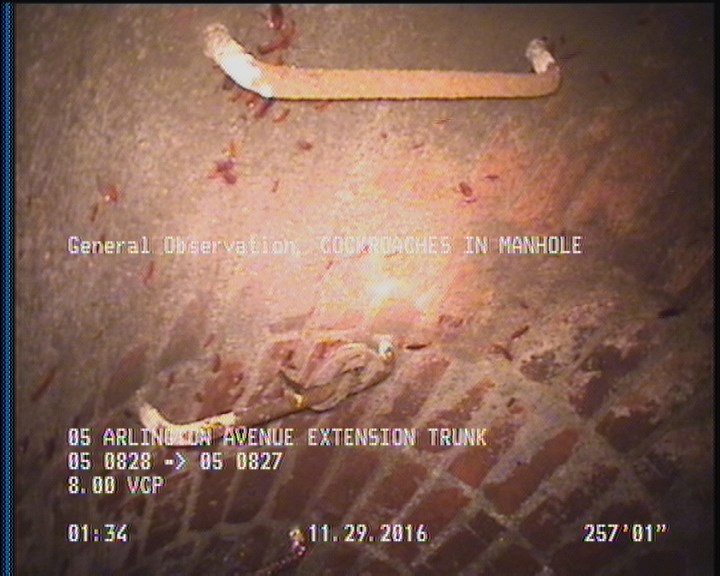

257.1 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (19)
| Distance | Code | Observation |
|---|---|---|
| 0 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 237.4 | TFA | — |
| 158.1 | TFA | — |
| 119.2 | TFA | — |
| 2 | DAGS | — |
| 14.9 | CM | — |
| 257.1 | MGO | COCKROACHES IN MANHOLE |
| 257.1 | DAGS | — |
| 258.7 | AMH | 05 0827 |
| 0 | MWL | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 257.1 | CM | — |
| 57.8 | TFA | — |
| 0 | MWM | — |
| 60.3 | TFA | — |
| 178.4 | TFA | — |
| 0 | AMH | 05 0828 |
| 207.7 | TFA | — |
| 110.7 | TFA | — |
Properties (5)
- additional_info
- SC306415
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-11-29T01:13:37-08:00
- sewer_category
- Gravity
