Wastewater/Activity/PacpInspection/1.0Nov 21, 2016, 08:17 AM
05 0353_05 0352 _22112016_001727.mp4
- Date
- 11/21/2016
- W/O
- 602767
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00432
- PipeID
- P05567
- Time
- 12:17 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3832
- Sewer Name
- 05 DISTRICT #5 MAIN RELIEF TRUNK
- City
- HAWTHORNE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 17
- Purpose
- Routine Assessment
- Project
- WO_602767_TV05325_NOV2016
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 36 in.
- Width
- 36 in.
- Upstream MH
- 05 0353
- Downstream MH
- 05 0352
- Dir. of Survey
- Downstream
- Length Surveyed
- 444.5 ft.
- Total Length
- 444.5 ft.
- Structural Index
- 4
- Structural Quick
- 5N3Q
- Structural Rating
- 639
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 639
Observation photos (3)

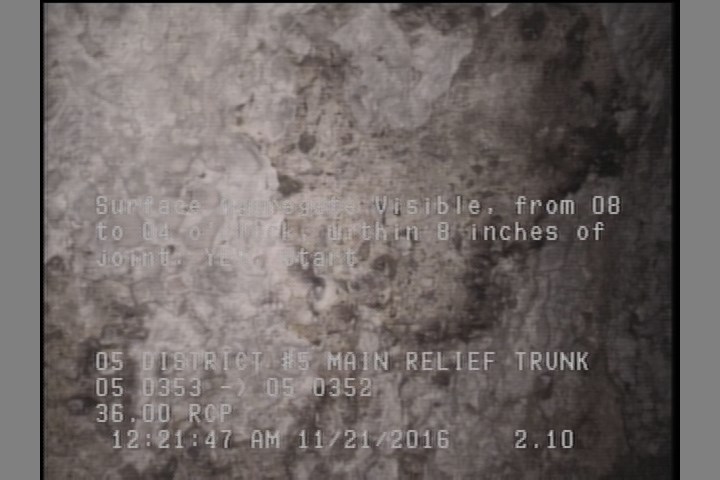

2.1 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

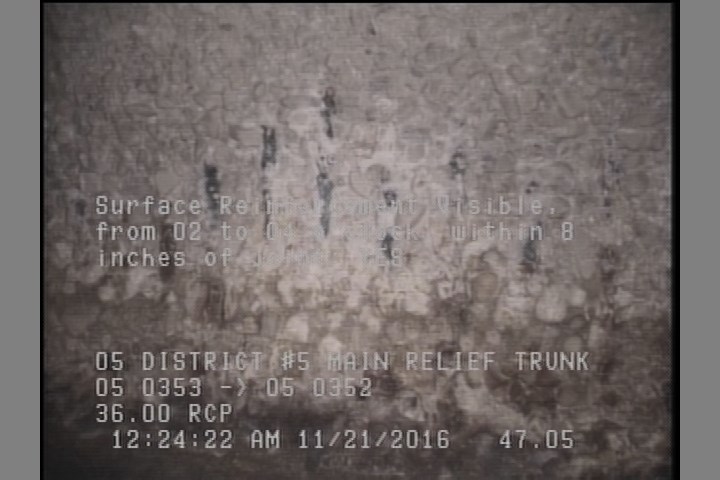

47.1 ft. - Surface Reinforcement Visible, from 02 to 04 o'clock, within 8 inches of joint: YES

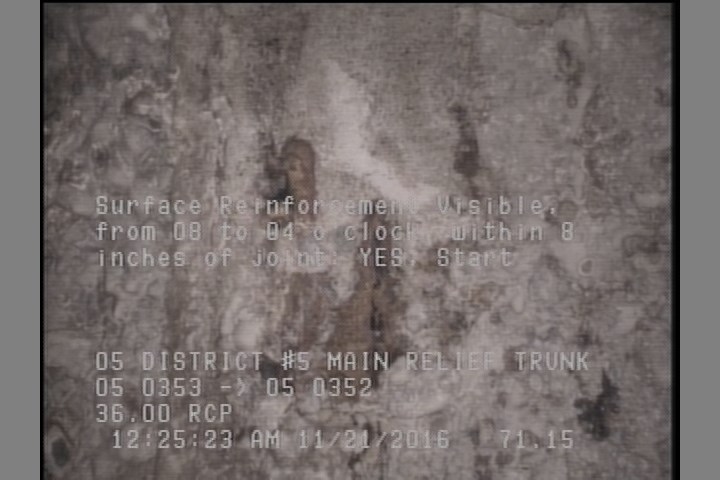

71.2 ft. - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 441 | SRV | — |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 47.1 | SRV | — |
| 2.1 | SAV | — |
| 71.2 | SRV | — |
| 2.1 | MGO | MAG COAT |
| 444.5 | AMH | 05 0352 |
| 441.1 | SAV | — |
| 0 | MWM | — |
| 0 | AMH | 05 0353 |
Properties (4)
- additional_info
- SC304581
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2016-11-21T00:17:00-08:00
