Wastewater/Activity/PacpInspection/1.0Nov 22, 2016, 04:03 PM
D 0062_D 0061 _11222016_082947.mp4
- Date
- 11/22/2016
- W/O
- 602615
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00153
- PipeID
- P09961
- Time
- 8:03 AM
- Certificate
- U-507-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3923
- Sewer Name
- D JOINT OUTFALL D - UNIT 3
- City
- GARDENA, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 21
- Purpose
- Routine Assessment
- Project
- WO_602615_TV05143_NOV2016
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 51 in.
- Width
- 51 in.
- Upstream MH
- D 0062
- Downstream MH
- D 0061
- Dir. of Survey
- Downstream
- Length Surveyed
- 509.5 ft.
- Total Length
- 509.5 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (2)

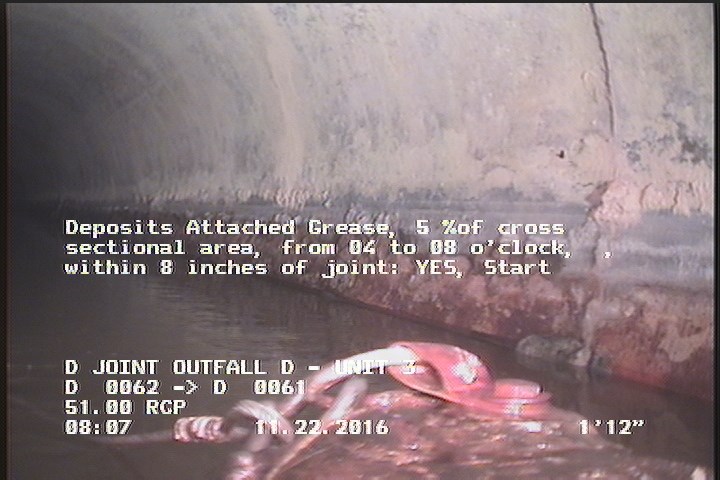

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

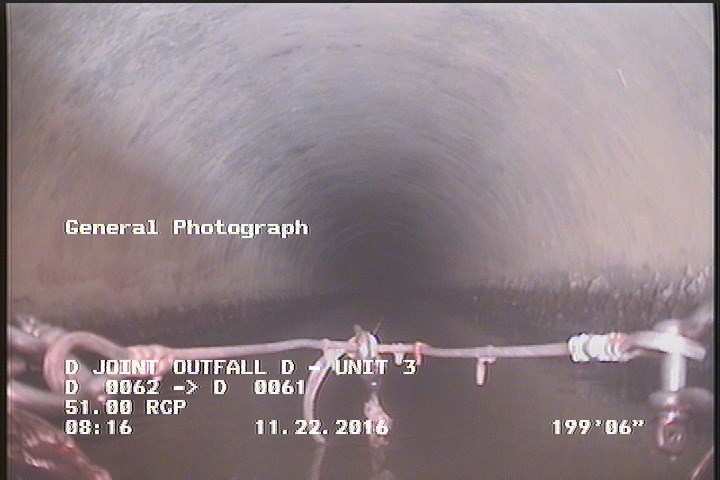

199.3 ft. - General Photograph
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 505.1 | DAGS | — |
| 0 | AMH | D 0062 |
| 199.3 | MGP | — |
| 0 | MGO | LATERAL AT MH 9 O CLOCK |
| 0 | MWM | — |
| 2 | DAGS | — |
| 509.5 | AMH | D 0061 |
Properties (6)
- additional_info
- SC317666
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-11-22T08:03:05-08:00
- lining
- FR POLY LINE
- year_laid
- 35780
