Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 2, 2016, 08:33 AM

  • 02 0114_02 0114_110216_015645.mp4

Date
11/02/2016
W/O
602602
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00237
PipeID
P02281
Time
1:33 AM
Certificate
U-507-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3754
Sewer Name
02 BELLFLOWER TRUNK
City
BELLFLOWER, CA
Loc. details
Alley
Location Code
H
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
36
Purpose
Routine Assessment
Project
WO_602602_TV02019_NOV2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Width
10 in.
Upstream MH
02 0113
Downstream MH
02 0114
Dir. of Survey
Upstream
Length Surveyed
293.5 ft.
Total Length
293.6 ft.
Structural Index
3
Structural Quick
3221
Structural Rating
8
O&M Index
2
O&M Quick
312C
O&M Rating
39
Overall Index
2
Overall Quick
—
Overall Rating
47
Pipe schematic from manhole 02 0113 to 02 0114
MH: 02 0113MH: 02 0114upstream0 ft. MSA - Survey Abandoned - DUE TO CALCIUM BUILD UP AT JOINT3.9 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 02 to 05 o'clock, , within 8 inches of joint: YES5.6 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES16.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 4"52.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 4"55.6 ft. DSF - Deposits Settled Fine, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish69.8 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES69.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 4"81.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 4"105.1 ft. DSF - Deposits Settled Fine, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start105.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 4"129.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 4"156 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 4"180 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 4"206.9 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"227.7 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"233.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 4"258.5 ft. DSF - Deposits Settled Fine, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO, Finish266.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"277.2 ft. CM - Crack Multiple, from 12 to 04 o'clock, within 8 inches of joint: YES291.5 ft. DSF - Deposits Settled Fine, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO, Start293.6 ft. AMH - Downstream Manhole, Survey Begins - 02 0113293.6 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK293.6 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK293.6 ft. MWL - Water Level, 10 %of cross sectional area293.6 ft. MWM - Water Mark, 20 %of cross sectional area

Observation photos (5)

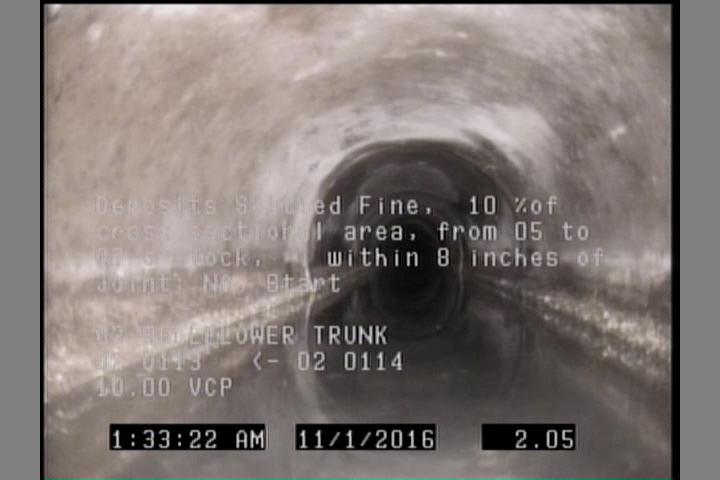

  • Deposits Settled Fine, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO, Start

    2.1 ft. - Deposits Settled Fine, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO, Start

  • Crack Multiple, from 12 to 04 o'clock, within 8 inches of joint: YES

    16.4 ft. - Crack Multiple, from 12 to 04 o'clock, within 8 inches of joint: YES

  • Deposits Settled Fine, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    188.5 ft. - Deposits Settled Fine, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    223.8 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

  • Deposits Attached Encrustation, 5 %of cross sectional area, from 02 to 05 o'clock, , within 8 inches of joint: YES

    289.7 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 02 to 05 o'clock, , within 8 inches of joint: YES

All inspections of P02281Work order 602602

Observations (26)

DistanceCodeObservation
16.4CM—
288CL—
0AMH02 0113
241TF—
188.5DSF—
137.6TF—
0MGOCONNECTION AT MH 3 O'CLOCK
35.1DSF—
238DSF—
0MGOCONNECTION AT MH 9 O'CLOCK
277.1TF—
289.7DAE—
223.8CM—
211.8TF—
0MWL—
293.6MSADUE TO CALCIUM BUILD UP AT JOINT
113.6TF—
65.9TFA—
223.8TF—
164.3TF—
0MWM—
86.7TFA—
60.3TF—
27.2TFC—
188.5TF—
2.1DSF—

Properties (4)

additional_info
SC303746
custom_field_two
5
customer
LACSD
datetime
2016-11-02T01:33:00-07:00
