02 0108_02 0108_110216_030350.mp4
- Date
- 11/02/2016
- W/O
- 602602
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00237
- PipeID
- P02275
- Time
- 2:35 AM
- Certificate
- U-507-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3754
- Sewer Name
- 02 BELLFLOWER TRUNK
- City
- BELLFLOWER, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 38
- Purpose
- Routine Assessment
- Project
- WO_602602_TV02019_NOV2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 10 in.
- Width
- 10 in.
- Upstream MH
- 02 0108
- Downstream MH
- 02 0107
- Dir. of Survey
- Downstream
- Length Surveyed
- 365.5 ft.
- Total Length
- 365.5 ft.
- Structural Index
- 3
- Structural Quick
- 4633
- Structural Rating
- 43
- O&M Index
- 2
- O&M Quick
- 352M
- O&M Rating
- 151
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 194
Observation photos (11)
2 ft. - Fracture Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES
7 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES
26.2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

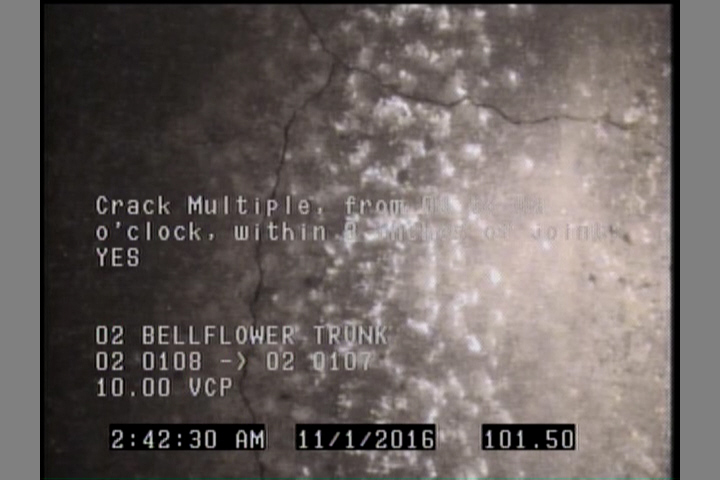

101.5 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

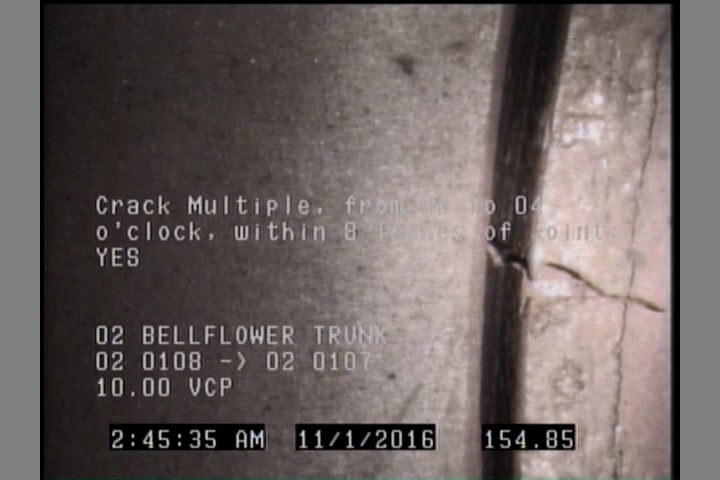

154.9 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

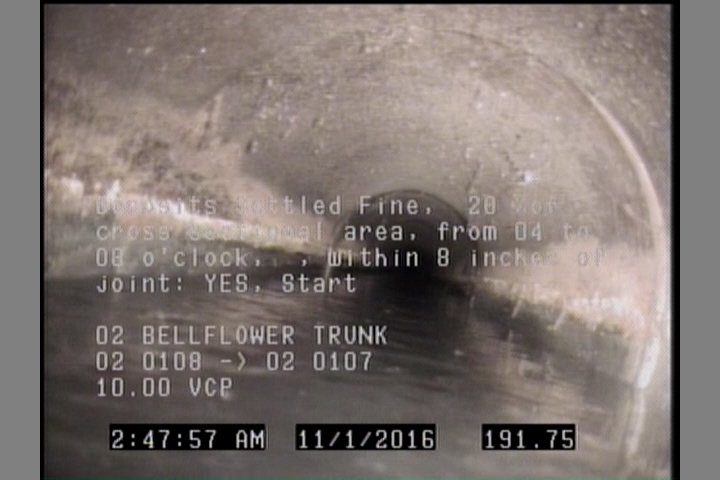

191.8 ft. - Deposits Settled Fine, 20 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

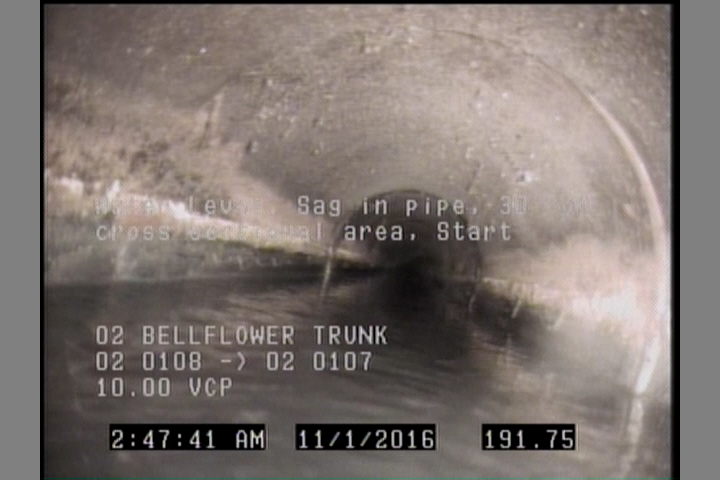

191.8 ft. - Water Level, Sag in pipe, 30 %of cross sectional area, Start
224.8 ft. - Water Level, Sag in pipe, 60 %of cross sectional area, Start

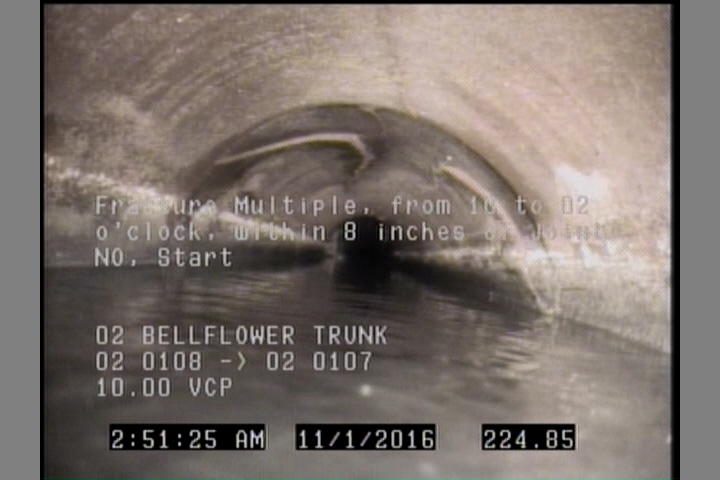

224.9 ft. - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: NO, Start

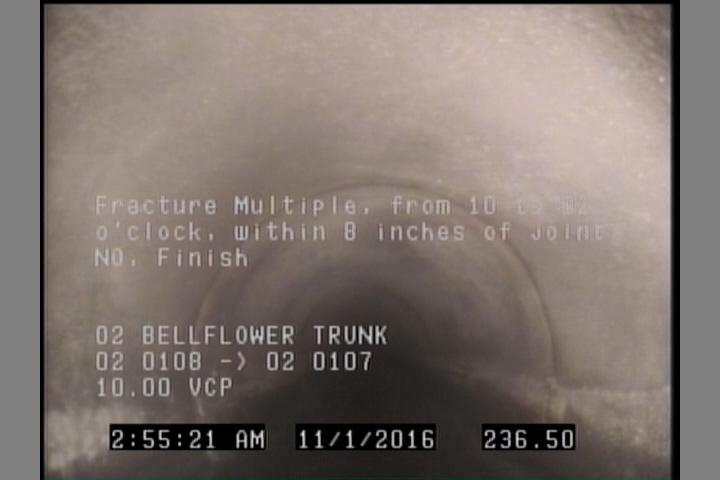

236.5 ft. - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: NO, Finish
359.8 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES
Observations (34)
| Distance | Code | Observation |
|---|---|---|
| 349.3 | TFA | — |
| 236.5 | TFA | — |
| 365.5 | DAGS | — |
| 57.9 | TF | — |
| 0 | MWM | — |
| 120.6 | TFA | — |
| 346.6 | TFC | — |
| 0 | AMH | 02 0108 |
| 224.9 | FM | — |
| 174 | TFA | — |
| 191.8 | DSF | — |
| 236.5 | MWLS | — |
| 191.8 | MWLS | — |
| 0 | MWL | — |
| 365.4 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 20.3 | TBA | — |
| 365.5 | AMH | 02 0107 |
| 236.5 | FM | — |
| 7 | FM | — |
| 154.9 | CM | — |
| 216.7 | MWLS | — |
| 108.3 | TFA | — |
| 170.7 | TFC | — |
| 224.8 | MWLS | — |
| 274.5 | TFA | — |
| 320.1 | TF | — |
| 359.8 | FL | — |
| 236.5 | TFA | — |
| 85 | TFA | — |
| 2 | FM | — |
| 26.2 | DAGS | — |
| 101.5 | CM | — |
| 247.5 | TFA | — |
| 216.7 | DSF | — |
Properties (4)
- additional_info
- SC303746
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2016-11-02T02:35:00-07:00
