Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 5, 2016, 09:52 AM

  • 05 2671_05 0637_12052016_021608.mp4

Date
12/05/2016
W/O
602595
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00509
PipeID
P05864
Time
1:52 AM
Certificate
U-507-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3930
Sewer Name
05 PRAIRIE AVENUE TRUNK
City
INGLEWOOD, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
05
Purpose
Routine Assessment
Project
WO_602595_TV05268_NOV2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Width
24 in.
Upstream MH
05 0637
Downstream MH
05 2671
Dir. of Survey
Upstream
Length Surveyed
369.1 ft.
Total Length
369.1 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
3
O&M Quick
3322
O&M Rating
13
Overall Index
3
Overall Quick
—
Overall Rating
13
Pipe schematic from manhole 05 0637 to 05 2671
MH: 05 0637MH: 05 2671upstream0 ft. MSA - Survey Abandoned - DUE TO HEAVY GREASE0 ft. DAGS - Deposits Attached Grease, 20 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish0 ft. DAGS - Deposits Attached Grease, 20 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES279.6 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: NO, 4"302.4 ft. DAGS - Deposits Attached Grease, 20 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start302.4 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish367.1 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start369.1 ft. MWM - Water Mark, 40 %of cross sectional area369.1 ft. MWL - Water Level, 10 %of cross sectional area369.1 ft. MGO - General Observation - LATERAL AT MH 9 O CLOCK369.1 ft. AMH - Downstream Manhole, Survey Begins - 05 0637

Observation photos (3)

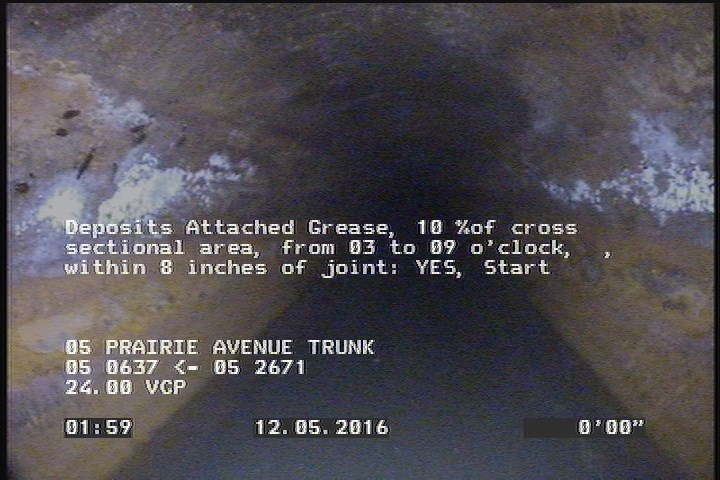

  • Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

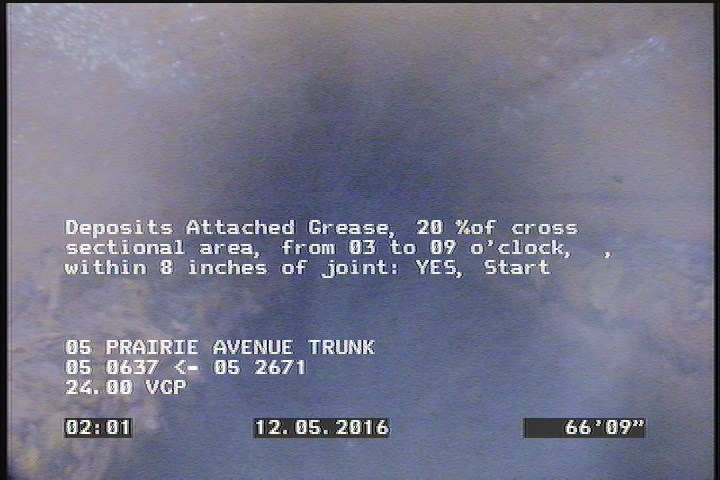

  • Deposits Attached Grease, 20 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    66.7 ft. - Deposits Attached Grease, 20 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

  • Deposits Attached Grease, 20 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES

    369.1 ft. - Deposits Attached Grease, 20 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES

All inspections of P05864Work order 602595

Observations (11)

DistanceCodeObservation
0MWM—
89.5TFA—
2DAGS—
0MWL—
369.1MSADUE TO HEAVY GREASE
0MGOLATERAL AT MH 9 O CLOCK
369.1DAGS—
369.1DAGS—
66.7DAGS—
0AMH05 0637
66.7DAGS—

Properties (4)

additional_info
SC317674
custom_field_two
5
customer
LACSD
datetime
2016-12-05T01:52:00-08:00
