Wastewater/Activity/PacpInspection/1.0Dec 5, 2016, 11:24 AM
05 0629_05 2206 _12052016_033454.mp4
- Date
- 12/05/2016
- W/O
- 602595
- Weather
- Damp
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00509
- PipeID
- P07354
- Time
- 3:24 AM
- Certificate
- U-507-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3930
- Sewer Name
- 05 PRAIRIE AVENUE TRUNK
- City
- HAWTHORNE, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 07
- Purpose
- Routine Assessment
- Project
- WO_602595_TV05268_NOV2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 05 0629
- Downstream MH
- 05 2206
- Dir. of Survey
- Downstream
- Length Surveyed
- 318.2 ft.
- Total Length
- 318.2 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 3
- O&M Quick
- 3121
- O&M Rating
- 5
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (2)

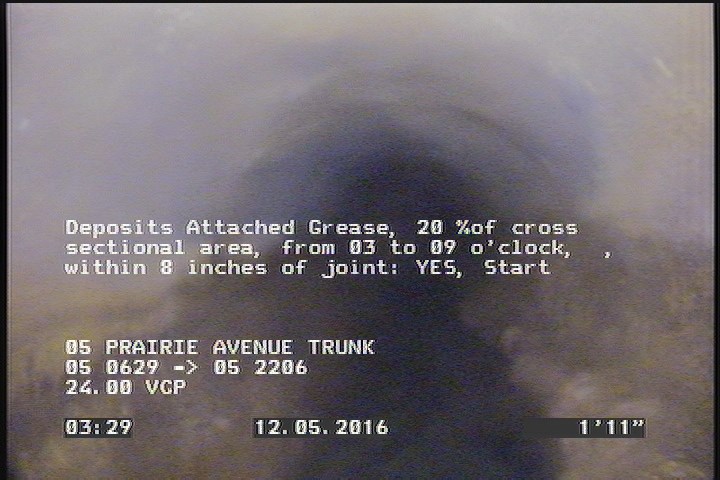

1.9 ft. - Deposits Attached Grease, 20 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

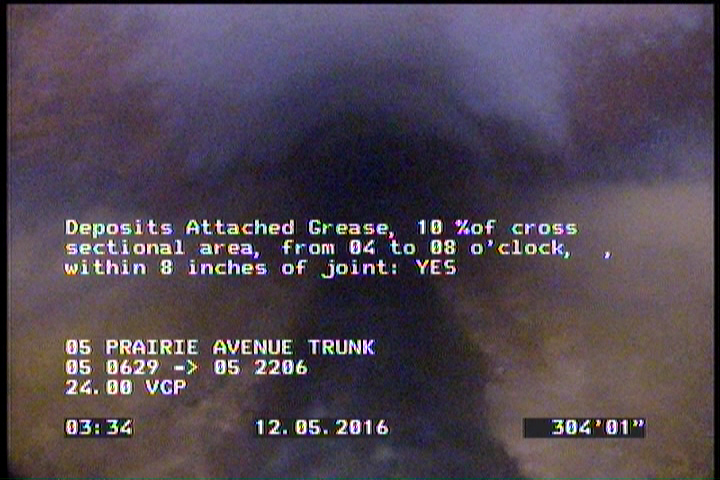

302.8 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 1.9 | DAGS | — |
| 0 | AMH | 05 0629 |
| 0 | MWM | — |
| 302.8 | DAGS | — |
| 302.8 | DAGS | — |
| 0 | MWL | — |
| 318.2 | AMH | 05 2206 |
| 0 | MGO | LATERAL AT MH 9 O CLOCK |
Properties (5)
- additional_info
- SC317674
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-12-05T03:24:00-08:00
- year_laid
- 26577
