Wastewater/Activity/PacpInspection/1.0Nov 9, 2016, 07:20 AM
02 1647_02 1646_08112016_232025.mp4
- Date
- 11/08/2016
- W/O
- 602593
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00235
- PipeID
- P04081
- Time
- 11:20 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3820
- Sewer Name
- 02 ATLANTIC AVENUE TRUNK
- City
- EAST LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_602593_TV02018_NOV2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 02 1647
- Downstream MH
- 02 1646
- Dir. of Survey
- Downstream
- Length Surveyed
- 272.2 ft.
- Total Length
- 272.2 ft.
- Structural Index
- 3
- Structural Quick
- 3J00
- Structural Rating
- 159
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 159
Observation photos (3)

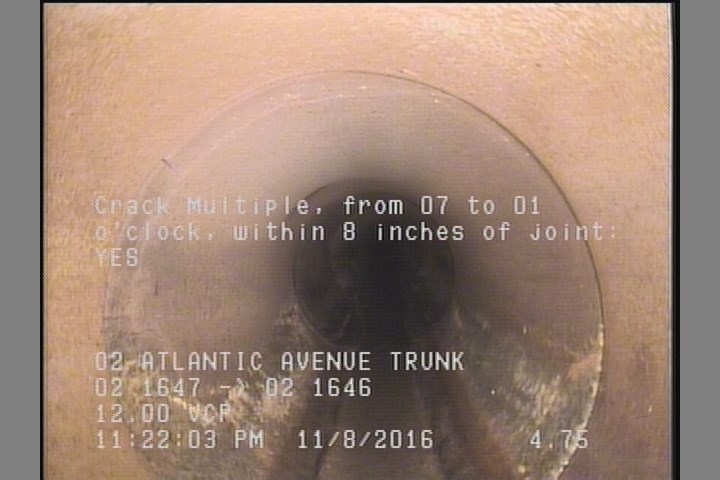

4.8 ft. - Crack Multiple, from 07 to 01 o'clock, within 8 inches of joint: YES

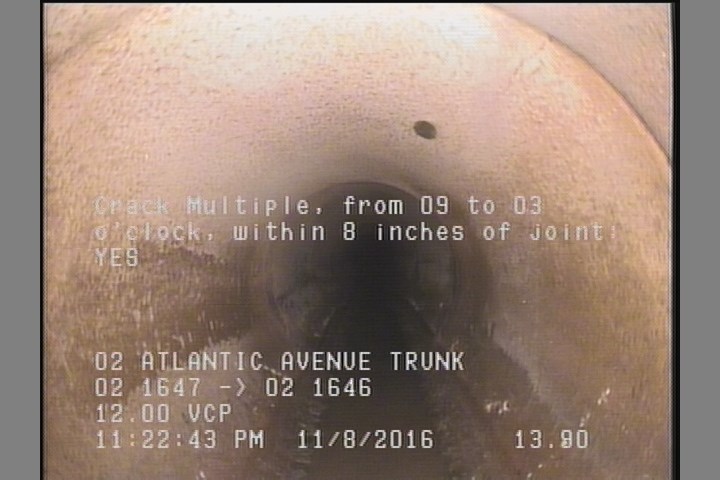

13.9 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

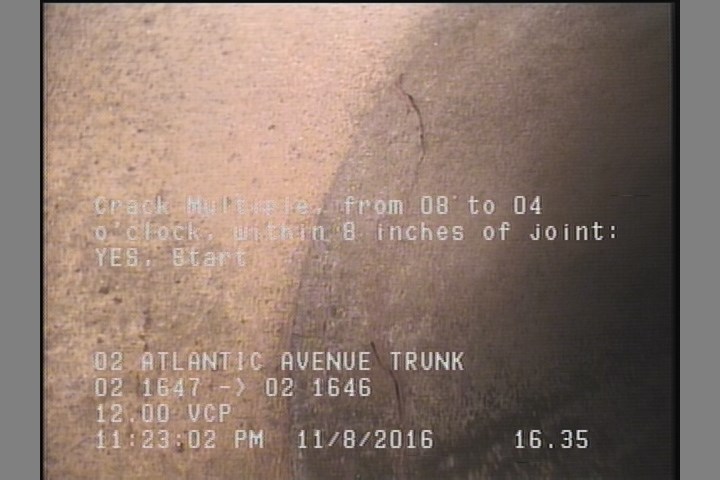

16.4 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 16.4 | CM | — |
| 272.2 | CM | — |
| 57.9 | TF | — |
| 220.7 | TF | — |
| 229.2 | TF | — |
| 0 | MWL | — |
| 13.9 | CM | — |
| 0 | MWM | — |
| 151.2 | TF | — |
| 0 | AMH | 02 1647 |
| 121.3 | TF | — |
| 100.3 | TF | — |
| 4.8 | CM | — |
| 272.2 | AMH | 02 1646 |
Properties (4)
- additional_info
- SC304569
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-11-08T23:20:14-08:00
