Wastewater/Activity/PacpInspection/1.0Nov 10, 2016, 09:09 AM
02 1626_02 1625_10112016_011026.mp4
- Date
- 11/10/2016
- W/O
- 602593
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00235
- PipeID
- P04063
- Time
- 1:09 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3821
- Sewer Name
- 02 ATLANTIC AVENUE TRUNK
- City
- EAST LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_602593_TV02018_NOV2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 02 1625
- Downstream MH
- 02 1626
- Dir. of Survey
- Upstream
- Length Surveyed
- 251.4 ft.
- Total Length
- 251.4 ft.
- Structural Index
- 3
- Structural Quick
- 3I00
- Structural Rating
- 150
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 150
Observation photos (2)

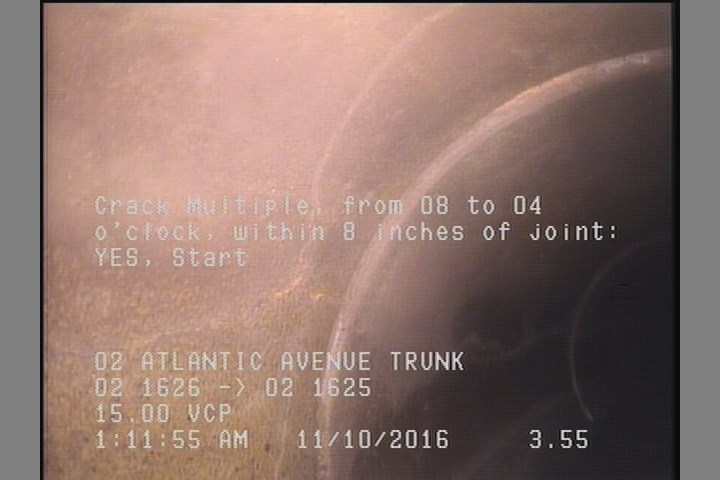

3.6 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

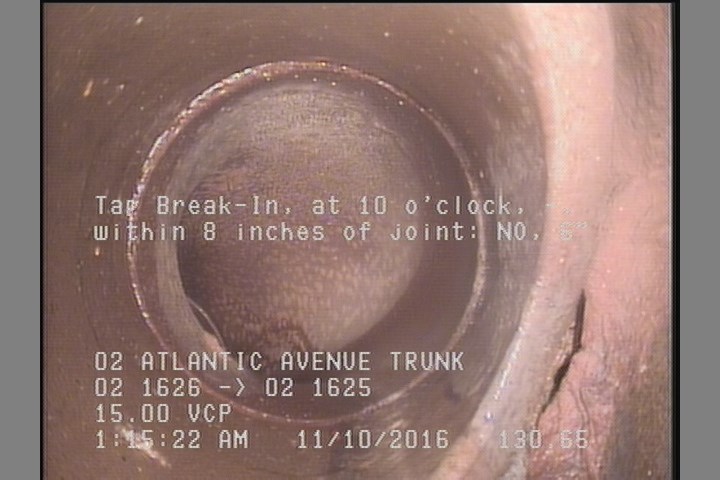

130.7 ft. - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 3.6 | CM | — |
| 251.4 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 31.3 | TF | — |
| 0 | MWL | — |
| 0 | AMH | 02 1625 |
| 180.4 | TF | — |
| 251.4 | CM | — |
| 251.4 | AMH | 02 1626 |
| 0 | MWM | — |
| 130.7 | TB | — |
| 79.8 | TF | — |
Properties (4)
- additional_info
- SC304570
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-11-10T01:09:42-08:00
