Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 9, 2016, 07:07 AM

  • 02 1648_02 1647_08112016_230723.mp4

Date
11/08/2016
W/O
602593
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00235
PipeID
P04082
Time
11:07 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3820
Sewer Name
02 ATLANTIC AVENUE TRUNK
City
EAST LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
09
Purpose
Routine Assessment
Project
WO_602593_TV02018_NOV2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
02 1648
Downstream MH
02 1647
Dir. of Survey
Downstream
Length Surveyed
282.8 ft.
Total Length
282.8 ft.
Structural Index
3
Structural Quick
3J00
Structural Rating
168
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
168
Pipe schematic from manhole 02 1648 to 02 1647
MH: 02 1648MH: 02 1647downstream0 ft. AMH - Upstream Manhole, Survey Begins - 02 16480 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MWM - Water Mark, 5 %of cross sectional area3.6 ft. CM - Crack Multiple, from 08 to 03 o'clock, within 8 inches of joint: YES7.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start61.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"100.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"142.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"148.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"224.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"264 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"272.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"282.7 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish282.8 ft. AMH - Downstream Manhole, Survey Ends - 02 1647

Observation photos (2)

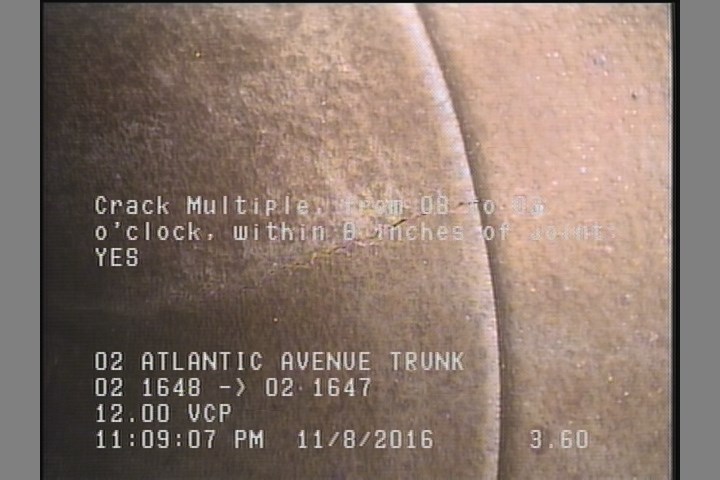

  • Crack Multiple, from 08 to 03 o'clock, within 8 inches of joint: YES

    3.6 ft. - Crack Multiple, from 08 to 03 o'clock, within 8 inches of joint: YES

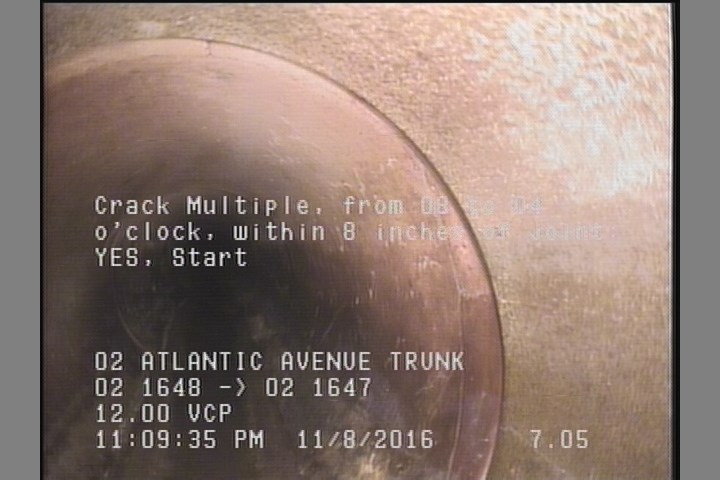

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    7.1 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P04082Work order 602593

Observations (14)

DistanceCodeObservation
3.6CM—
100.8TF—
0AMH02 1648
148.6TF—
142.9TF—
0MWL—
0MWM—
272.7TF—
61.9TF—
264TF—
282.8AMH02 1647
224.4TF—
282.7CM—
7.1CM—

Properties (3)

custom_field_two
3
customer
LACSD
datetime
2016-11-08T23:07:13-08:00
