Wastewater/Activity/PacpInspection/1.0Nov 10, 2016, 11:46 AM
02 1811_02 1810 _10112016_034645.mp4
- Date
- 11/10/2016
- W/O
- 602593
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00236
- PipeID
- P04158
- Time
- 3:46 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3821
- Sewer Name
- 02 ATLANTIC AVENUE RELIEF TRUNK
- City
- EAST LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_602593_TV02018_NOV2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 02 1811
- Downstream MH
- 02 1810
- Dir. of Survey
- Downstream
- Length Surveyed
- 466.9 ft.
- Total Length
- 466.9 ft.
- Structural Index
- 2
- Structural Quick
- 3211
- Structural Rating
- 7
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (2)

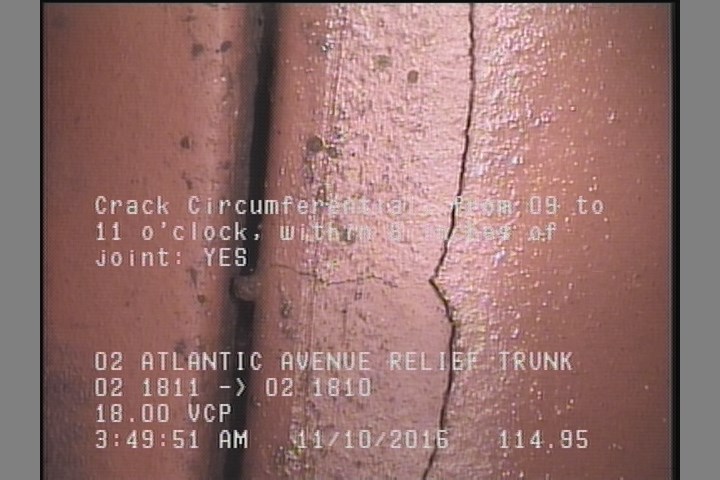

115 ft. - Crack Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES

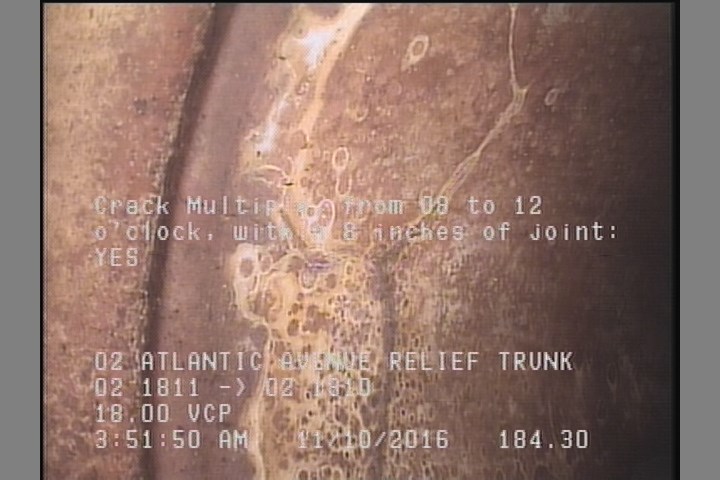

184.3 ft. - Crack Multiple, from 08 to 12 o'clock, within 8 inches of joint: YES
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 119.4 | CM | — |
| 115 | CC | — |
| 184.3 | CM | — |
| 466.9 | AMH | 02 1810 |
| 0 | MWL | — |
| 0 | AMH | 02 1811 |
Properties (4)
- additional_info
- SC304570
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-11-10T03:46:11-08:00
