Wastewater/Activity/PacpInspection/1.0Nov 14, 2016, 10:27 AM
02 1808_02 1807_14112016_022754.mp4
- Date
- 11/14/2016
- W/O
- 602593
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00236
- PipeID
- P04155
- Time
- 2:27 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3822
- Sewer Name
- 02 ATLANTIC AVENUE RELIEF TRUNK
- City
- EAST LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_602593_TV02018_NOV2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 02 1808
- Downstream MH
- 02 1807
- Dir. of Survey
- Downstream
- Length Surveyed
- 421 ft.
- Total Length
- 421 ft.
- Structural Index
- 3
- Structural Quick
- 3200
- Structural Rating
- 6
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (2)

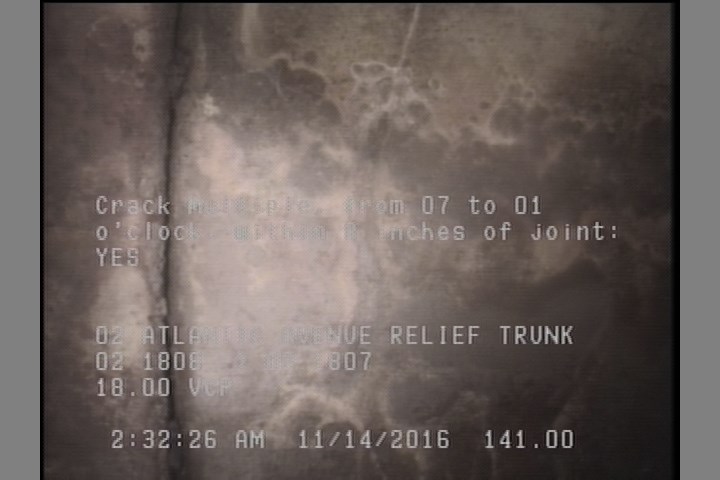

141 ft. - Crack Multiple, from 07 to 01 o'clock, within 8 inches of joint: YES

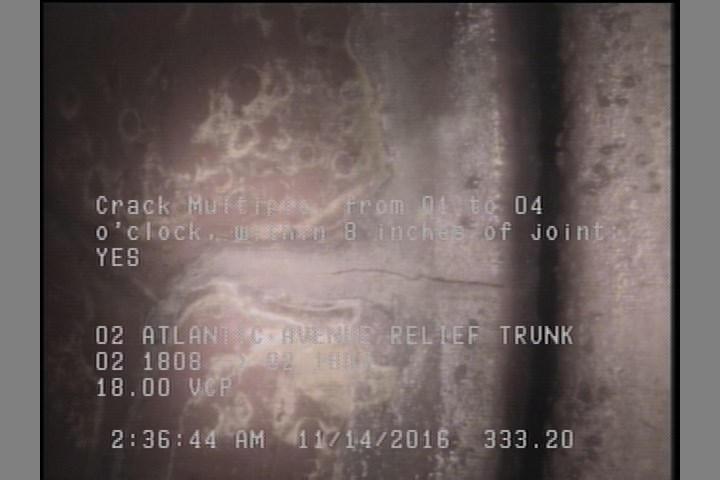

333.2 ft. - Crack Multiple, from 01 to 04 o'clock, within 8 inches of joint: YES
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 02 1808 |
| 0 | MWL | — |
| 333.2 | CM | — |
| 421 | AMH | 02 1807 |
| 141 | CM | — |
| 0 | MWM | — |
Properties (4)
- additional_info
- SC304571
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-11-14T02:27:38-08:00
