Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 9, 2016, 10:07 AM

  • 02 1640_02 1639_09112016_020829.mp4

Date
11/09/2016
W/O
602593
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00235
PipeID
P04074
Time
2:07 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3820
Sewer Name
02 ATLANTIC AVENUE TRUNK
City
EAST LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
12
Purpose
Routine Assessment
Project
WO_602593_TV02018_NOV2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
02 1639
Downstream MH
02 1640
Dir. of Survey
Upstream
Length Surveyed
263.7 ft.
Total Length
263.7 ft.
Structural Index
3
Structural Quick
3G00
Structural Rating
120
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
120
Pipe schematic from manhole 02 1639 to 02 1640
MH: 02 1639MH: 02 1640upstream0 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish0 ft. AMH - Upstream Manhole, Survey Ends - 02 164027.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"39.5 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"108.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"147.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"192.6 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"197.4 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start200.5 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES228.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"263.7 ft. MWL - Water Level, 5 %of cross sectional area263.7 ft. MWM - Water Mark, 5 %of cross sectional area263.7 ft. AMH - Downstream Manhole, Survey Begins - 02 1639

Observation photos (2)

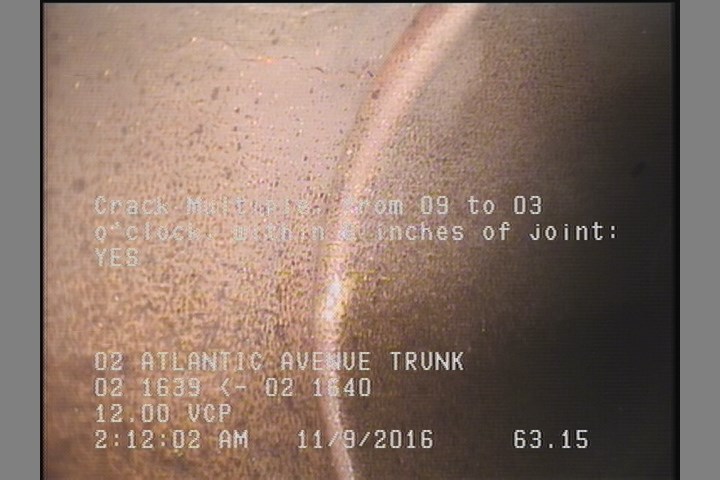

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    63.2 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

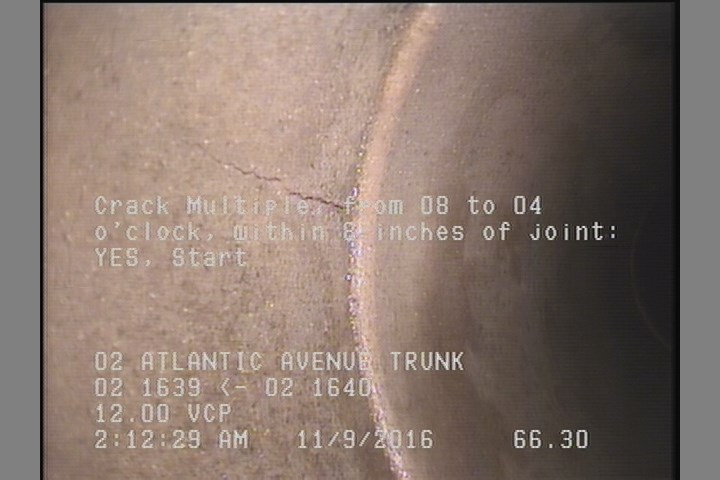

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    66.3 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P04074Work order 602593

Observations (13)

DistanceCodeObservation
0MWL—
263.7CM—
63.2CM—
34.8TF—
0MWM—
71.1TF—
235.9TF—
263.7AMH02 1640
224.2TFA—
66.3CM—
115.9TF—
0AMH02 1639
155TF—

Properties (4)

additional_info
SC304569
custom_field_two
3
customer
LACSD
datetime
2016-11-09T02:07:22-08:00
