Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 9, 2016, 08:43 AM

  • 02 1645_02 1644_09112016_004416.mp4

Date
11/09/2016
W/O
602593
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00235
PipeID
P04079
Time
12:43 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3820
Sewer Name
02 ATLANTIC AVENUE TRUNK
City
EAST LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
09
Purpose
Routine Assessment
Project
WO_602593_TV02018_NOV2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
02 1644
Downstream MH
02 1645
Dir. of Survey
Upstream
Length Surveyed
280.7 ft.
Total Length
280.7 ft.
Structural Index
3
Structural Quick
3J00
Structural Rating
165
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
165
Pipe schematic from manhole 02 1644 to 02 1645
MH: 02 1644MH: 02 1645upstream0 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Ends - 02 164569.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"108.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"150.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"192.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"231.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"271 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start273.5 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES274.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"280.7 ft. MWM - Water Mark, 5 %of cross sectional area280.7 ft. MWL - Water Level, 5 %of cross sectional area280.7 ft. AMH - Downstream Manhole, Survey Begins - 02 1644

Observation photos (2)

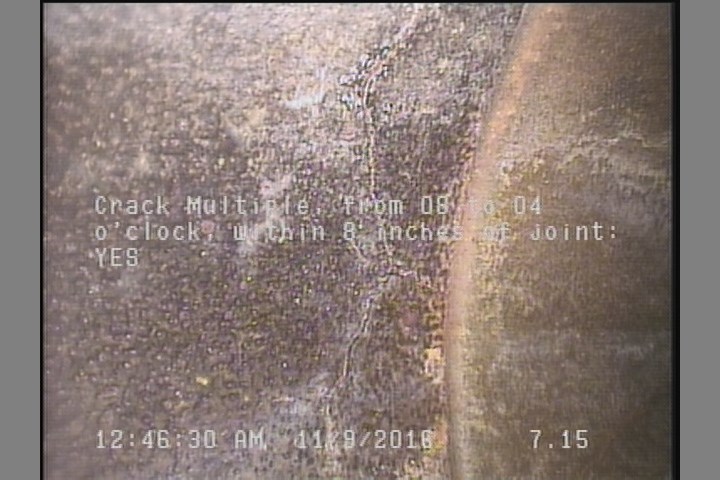

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    7.2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

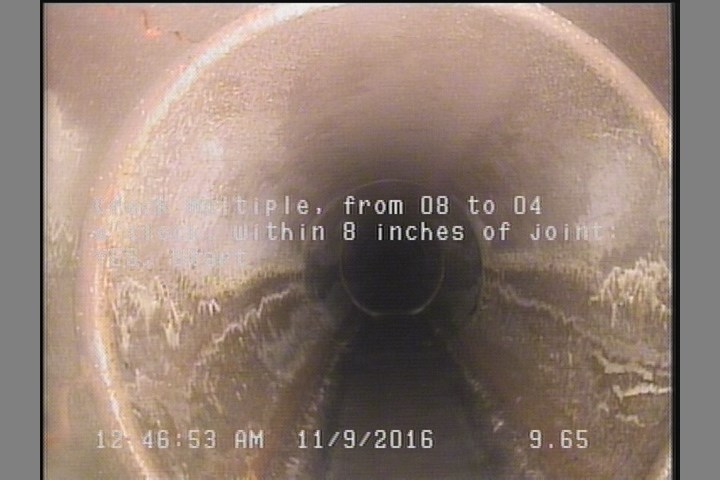

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    9.7 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P04079Work order 602593

Observations (14)

DistanceCodeObservation
9.7CM—
280.7CM—
88.2TFC—
172.4TFC—
0MWM—
0MWL—
130.6TF—
211.6TFC—
280.7MGOCONNECTION AT MH 9 O'CLOCK
7.2CM—
6.1TFC—
280.7AMH02 1645
48.9TFC—
0AMH02 1644

Properties (4)

additional_info
SC304569
custom_field_two
3
customer
LACSD
datetime
2016-11-09T00:43:49-08:00
