Wastewater/Activity/PacpInspection/1.0Nov 10, 2016, 07:46 AM
02 1624_02 1623_09112016_234709.mp4
- Date
- 11/09/2016
- W/O
- 602593
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00235
- PipeID
- P04644
- Time
- 11:46 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3821
- Sewer Name
- 02 ATLANTIC AVENUE TRUNK
- City
- EAST LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_602593_TV02018_NOV2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 02 1624
- Downstream MH
- 02 1623
- Dir. of Survey
- Downstream
- Length Surveyed
- 319.9 ft.
- Total Length
- 319.9 ft.
- Structural Index
- 3
- Structural Quick
- 413L
- Structural Rating
- 193
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 195
Observation photos (4)

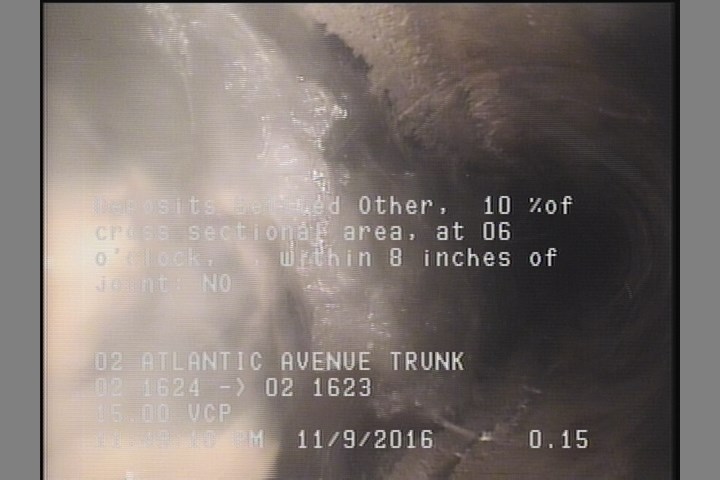

2.1 ft. - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: NO

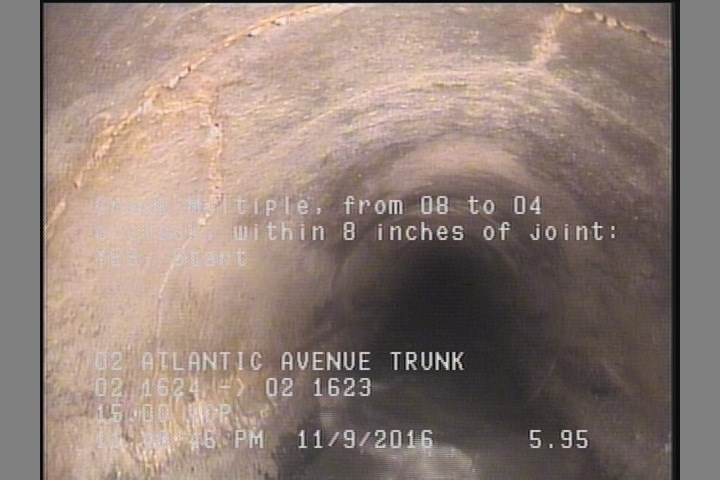

6 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

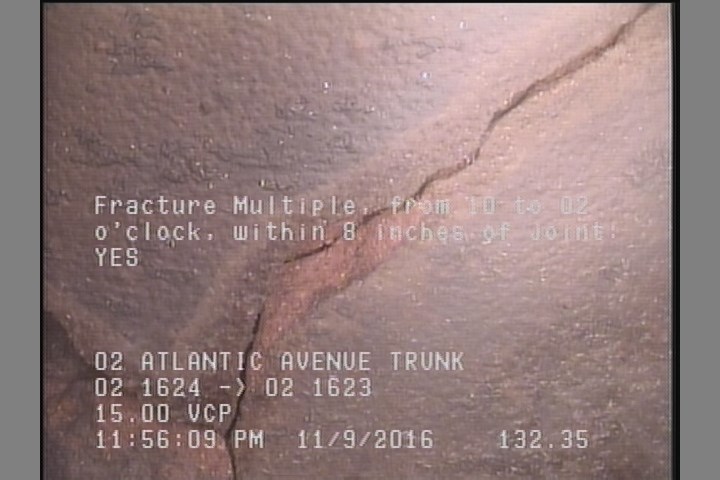

132.4 ft. - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

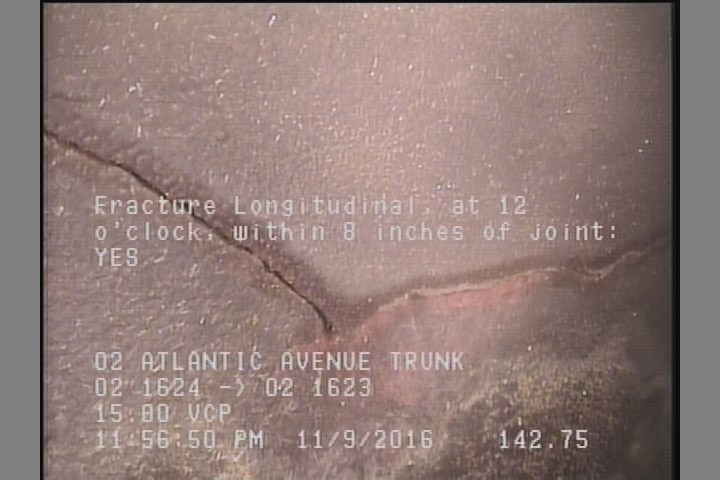

142.8 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 02 1624 |
| 2.1 | DSZ | — |
| 132.4 | FM | — |
| 313.8 | CM | — |
| 91.2 | TF | — |
| 142.8 | FL | — |
| 292.2 | TF | — |
| 115 | TF | — |
| 161.1 | TF | — |
| 319.9 | AMH | 02 1623 |
| 6 | CM | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 240.7 | TF | — |
Properties (4)
- additional_info
- SC304570
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-11-09T23:46:34-08:00
