Wastewater/Activity/PacpInspection/1.0Dec 7, 2016, 07:57 AM
05 2162_05 2161 _12072016_000607.mp4
- Date
- 12/06/2016
- W/O
- 602286
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00509
- PipeID
- P07304
- Time
- 11:57 PM
- Certificate
- U-507-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3933
- Sewer Name
- 05 PRAIRIE AVENUE TRUNK
- City
- HAWTHORNE, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 13
- Purpose
- Routine Assessment
- Project
- WO_602286_TV05190_NOV2016
- Sewer Type
- Siphon
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 48 in.
- Width
- 48 in.
- Upstream MH
- 05 2162
- Downstream MH
- 05 2161
- Dir. of Survey
- Downstream
- Length Surveyed
- 2 ft.
- Total Length
- 2 ft.
- Structural Index
- 1
- Structural Quick
- 1100
- Structural Rating
- 1
- O&M Index
- 4
- O&M Quick
- 5121
- O&M Rating
- 7
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (2)

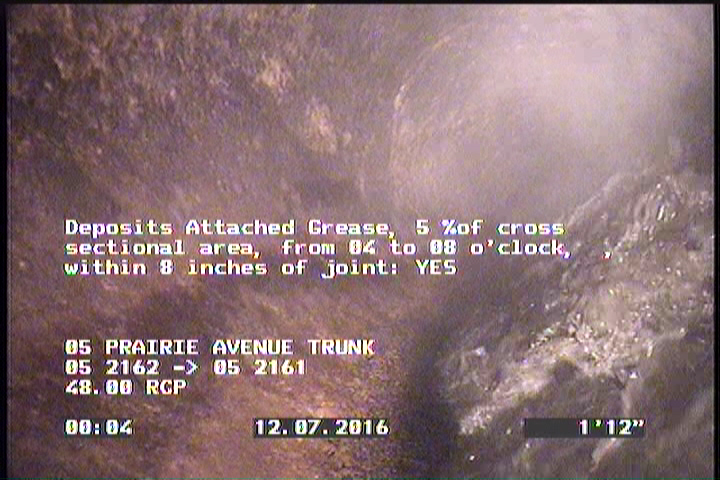

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES

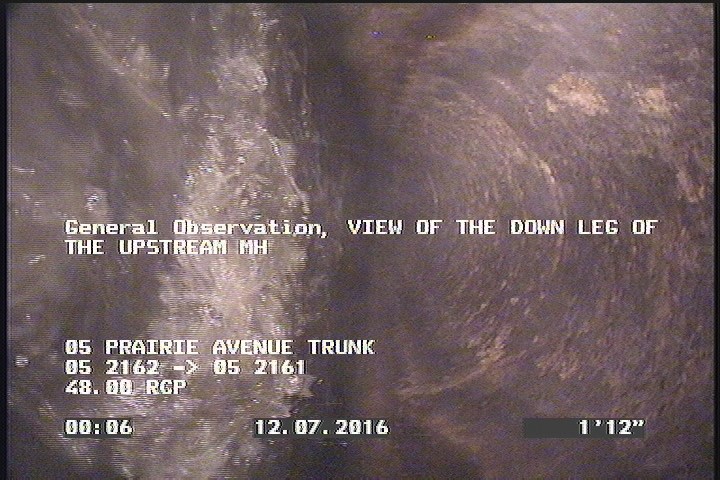

2 ft. - General Observation - VIEW OF THE DOWN LEG OF THE UPSTREAM MH
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 2 | SRI | — |
| 2 | DAGS | — |
| 2 | MGO | MAG.H.C. START |
| 2 | MSA | DUE TO SIPHON |
| 0 | AMH | 05 2162 |
| 0 | MWL | — |
| 0 | MWM | — |
| 2 | MGO | VIEW OF THE DOWN LEG OF THE UPSTREAM MH |
Properties (5)
- additional_info
- SC317677
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-12-06T23:57:00-08:00
- year_laid
- 26616
