Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 23, 2016, 11:11 AM

  • 04 0083_04 0082_23022016_031131.mp4

Date
02/23/2016
W/O
552531
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00415
PipeID
P11821
Time
3:11 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3264
Sewer Name
04 SHERMAN TRUNK
City
WEST HOLLYWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 04
Page No.
01
Purpose
Routine Assessment
Project
WO_552531_TV04009_FEB2016
Sewer Type
GRAVITY
Material
Vitrified Clay Pipe
Lining Method
Segmented Panel
Shape
Circular
Height
12 in.
Upstream MH
04 0083
Downstream MH
04 0082
Dir. of Survey
Downstream
Length Surveyed
265.8 ft.
Total Length
265.8 ft.
Structural Index
3
Structural Quick
3I00
Structural Rating
156
O&M Index
2
O&M Quick
2J12
O&M Rating
108
Overall Index
2
Overall Quick
—
Overall Rating
264
Pipe schematic from manhole 04 0083 to 04 0082
MH: 04 0083MH: 04 0082downstream0 ft. AMH - Upstream Manhole, Survey Begins - 04 0083, CONNECTION NODE0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start6.6 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start8.6 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: NO, 6"13.9 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"50.3 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"58.7 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: NO, 6"105.2 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: NO, 6"123.5 ft. RFJ - Roots Fine Joint, from 07 to 09 o'clock, within 8 inches of joint: YESR125.2 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: NO, 6"155.8 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"163.7 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"200.3 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"200.3 ft. RFC - Roots Fine Connection, at 03 o'clock, within 8 inches of joint: YES203.5 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 6"247.1 ft. TBA - Tap Break-In Active, at 03 o'clock, -, within 8 inches of joint: NO, 6"252.1 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"264.5 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish264.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish265.8 ft. AMH - Downstream Manhole, Survey Ends - 04 0082

Observation photos (4)

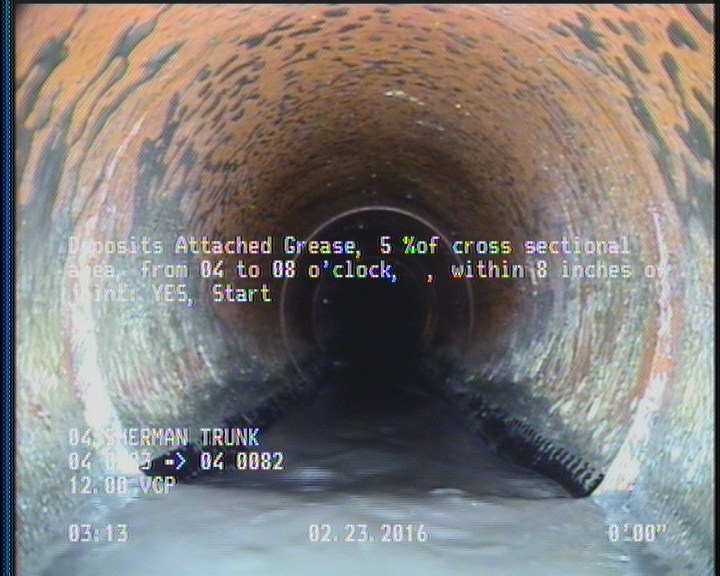

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    0 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

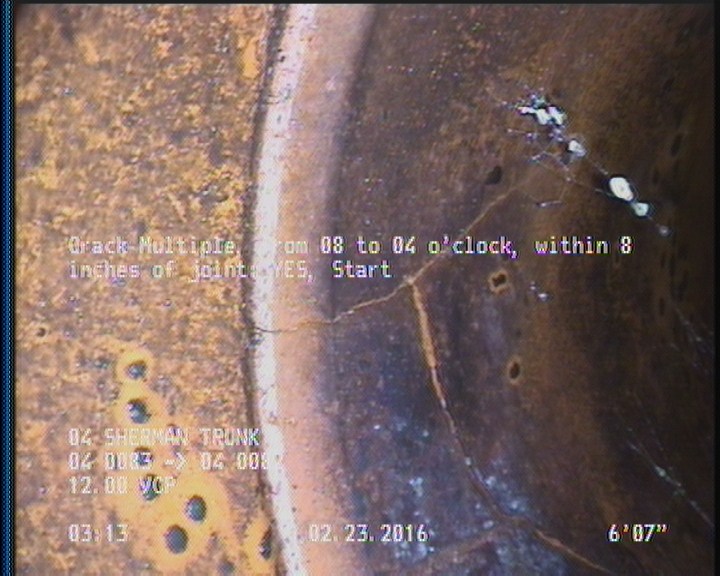

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    6.6 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

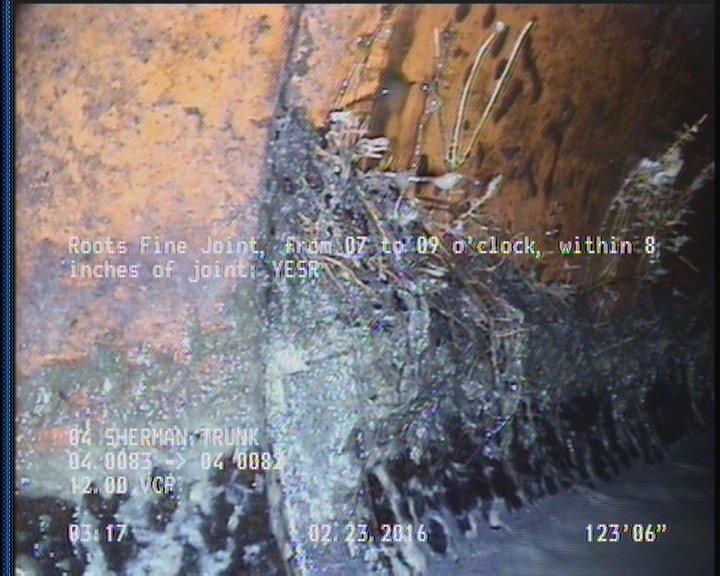

  • Roots Fine Joint, from 07 to 09 o'clock, within 8 inches of joint: YESR

    123.5 ft. - Roots Fine Joint, from 07 to 09 o'clock, within 8 inches of joint: YESR

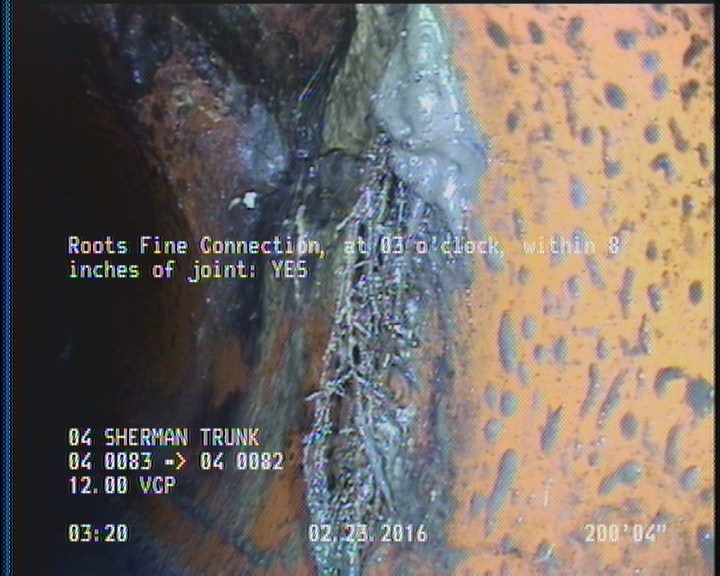

  • Roots Fine Connection, at 03 o'clock, within 8 inches of joint: YES

    200.3 ft. - Roots Fine Connection, at 03 o'clock, within 8 inches of joint: YES

All inspections of P11821Work order 552531

Observations (22)

DistanceCodeObservation
163.7TFA—
200.3TBA—
105.2TFA—
264.5CM—
265.8AMH04 0082
252.1TFA—
264.5DAGS—
0AMH04 0083, CONNECTION NODE
200.3RFC—
50.3TFA—
58.7TFA—
0MWL—
123.5RFJ—
13.9TFC—
203.5TFC—
6.6CM—
8.6TFA—
0MWM—
247.1TBA—
0DAGS—
155.8TFA—
125.2TFA—

Properties (4)

additional_info
SC225487
custom_field_two
3
customer
LACSD
datetime
2016-02-23T03:11:09-08:00
