Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 23, 2016, 11:50 AM

  • 04 0084_04 0083A_23022016_035107.mp4

Date
02/23/2016
W/O
552531
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00415
PipeID
P11823
Time
3:50 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3264
Sewer Name
04 SHERMAN TRUNK
City
WEST HOLLYWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 04
Page No.
01
Purpose
Routine Assessment
Project
WO_552531_TV04009_FEB2016
Sewer Type
GRAVITY
Material
Vitrified Clay Pipe
Lining Method
Segmented Panel
Shape
Circular
Height
12 in.
Upstream MH
04 0083A
Downstream MH
04 0084
Dir. of Survey
Upstream
Length Surveyed
132.3 ft.
Total Length
132.3 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2D00
O&M Rating
52
Overall Index
2
Overall Quick
—
Overall Rating
52
Pipe schematic from manhole 04 0083A to 04 0084
MH: 04 0083AMH: 04 0084upstream0 ft. AMH - Upstream Manhole, Survey Ends - 04 00840 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK1.6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish1.6 ft. MGO - General Observation - COCKROACHES IN MANHOLE64.4 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: NO, 6"107 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"109.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"130.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start132.3 ft. MWM - Water Mark, 20 %of cross sectional area132.3 ft. MGO - General Observation - COCKROACHES IN MANHOLE132.3 ft. MWL - Water Level, 5 %of cross sectional area132.3 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 2 O'CLOCK132.3 ft. AMH - Downstream Manhole, Survey Begins - 04 0083A

Observation photos (3)

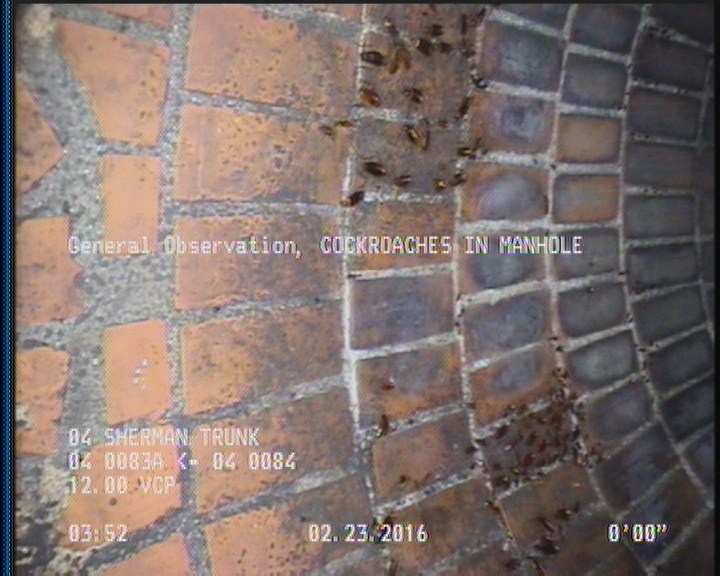

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

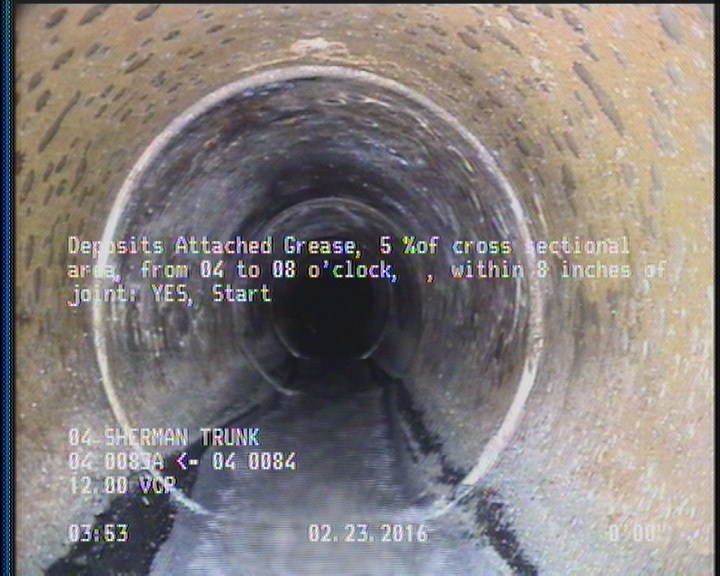

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

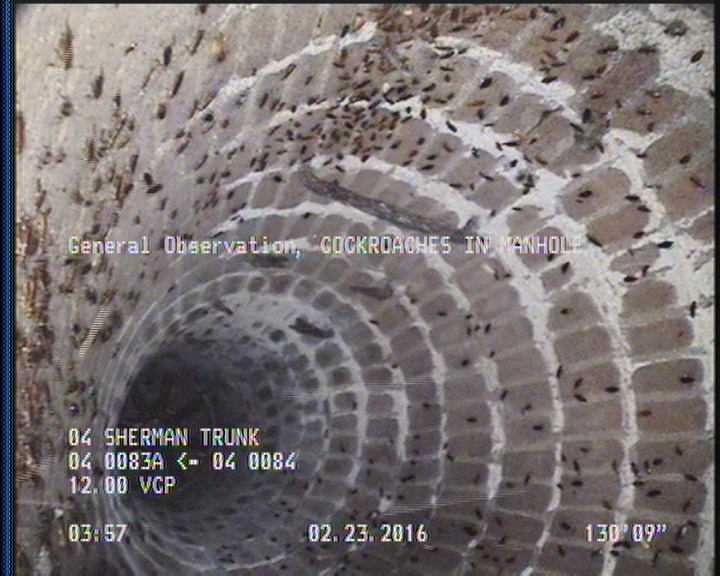

  • General Observation - COCKROACHES IN MANHOLE

    130.7 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P11823Work order 552531

Observations (13)

DistanceCodeObservation
25.3TFC—
0MWM—
67.9TFC—
130.7DAGS—
132.3AMH04 0084
0MGOCOCKROACHES IN MANHOLE
132.3MGOACTIVE CONNECTION AT MH 9 O'CLOCK
0MWL—
0MGOACTIVE CONNECTION AT MH 2 O'CLOCK
2DAGS—
22.8TFC—
130.7MGOCOCKROACHES IN MANHOLE
0AMH04 0083A

Properties (4)

additional_info
SC225487
custom_field_two
4
customer
LACSD
datetime
2016-02-23T03:50:18-08:00
