Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 23, 2016, 11:59 AM

  • 04 0085_04 0084_23022016_035929.mp4

Date
02/23/2016
W/O
552531
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00415
PipeID
P11824
Time
3:59 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3264
Sewer Name
04 SHERMAN TRUNK
City
WEST HOLLYWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 04
Page No.
01
Purpose
Routine Assessment
Project
WO_552531_TV04009_FEB2016
Sewer Type
GRAVITY
Material
Vitrified Clay Pipe
Lining Method
Segmented Panel
Shape
Circular
Height
12 in.
Upstream MH
04 0084
Downstream MH
04 0085
Dir. of Survey
Upstream
Length Surveyed
81 ft.
Total Length
81 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2B00
O&M Rating
30
Overall Index
2
Overall Quick
—
Overall Rating
30
Pipe schematic from manhole 04 0084 to 04 0085
MH: 04 0084MH: 04 0085upstream0 ft. AMH - Upstream Manhole, Survey Ends - 04 00850 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK1.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish79 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start81 ft. MGO - General Observation - COCKROACHES IN MANHOLE81 ft. AMH - Downstream Manhole, Survey Begins - 04 008481 ft. MWL - Water Level, 5 %of cross sectional area81 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK81 ft. MWM - Water Mark, 20 %of cross sectional area

Observation photos (2)

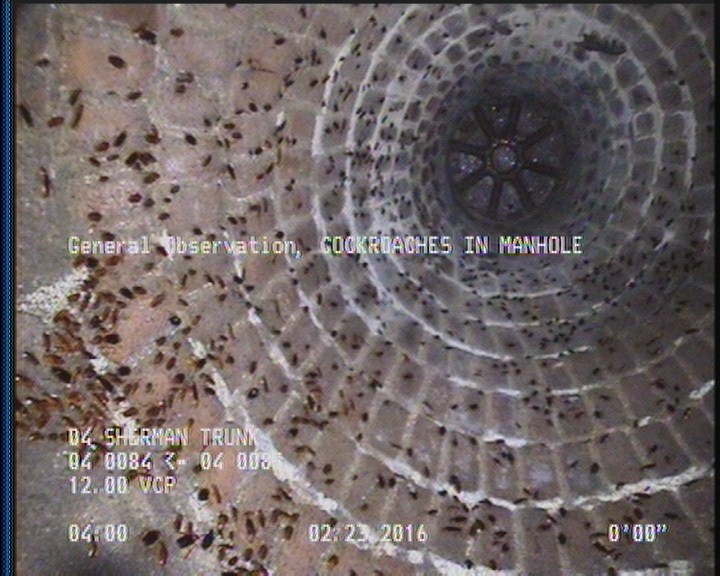

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

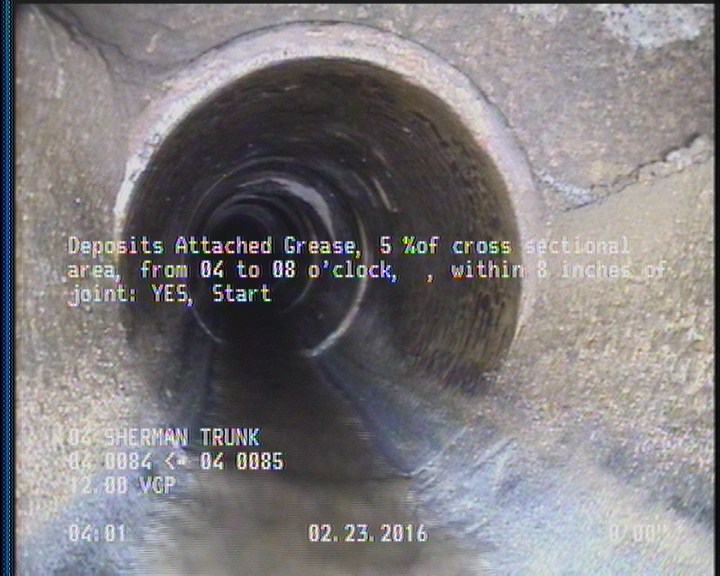

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P11824Work order 552531

Observations (10)

DistanceCodeObservation
2DAGS—
0MGOCOCKROACHES IN MANHOLE
81AMH04 0085
79.3DAGS—
0AMH04 0084
0MWL—
0MGOACTIVE CONNECTION AT MH 9 O'CLOCK
81MGOACTIVE CONNECTION AT MH 9 O'CLOCK
81MGOACTIVE CONNECTION AT MH 3 O'CLOCK
0MWM—

Properties (4)

additional_info
SC225487
custom_field_two
4
customer
LACSD
datetime
2016-02-23T03:59:12-08:00
