Wastewater/Activity/PacpInspection/1.0Feb 4, 2016, 12:25 PM
D 0166_D 0165_20160204_053716_.mp4
- Date
- 02/04/2016
- W/O
- 552384
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00157
- PipeID
- P10042
- Time
- 4:25 AM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3135
- Sewer Name
- D JOINT OUTFALL D - UNIT 6 RELIEF
- City
- LAWNDALE, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 17
- Purpose
- Routine Assessment
- Project
- WO_552384_TV05145_FEB2016
- Sewer Type
- GRAVITY
- Material
- Reinforced Concrete Pipe
- Lining Method
- Segmented Panel
- Shape
- Circular
- Height
- 39 in.
- Upstream MH
- D 0166
- Downstream MH
- D 0165
- Dir. of Survey
- Downstream
- Length Surveyed
- 154.5 ft.
- Total Length
- 154.5 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 412E
- O&M Rating
- 66
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 66
Observation photos (1)

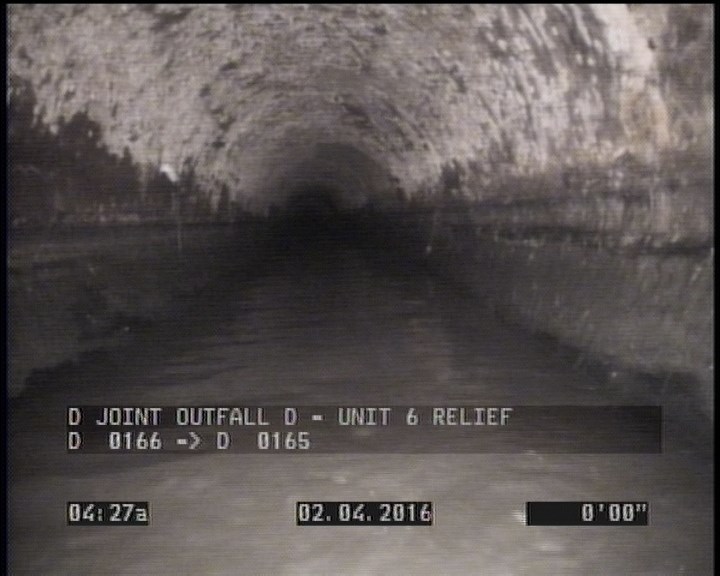

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 2 | DAGS | — |
| 2 | MGO | MAGNESIUM H.O. START |
| 0 | AMH | D 0166 |
| 154.5 | MGO | LATERAL AT MH 9 OCLOCK |
| 154.5 | DAGS | — |
| 154.5 | AMH | D 0165 |
| 0 | MWM | — |
Properties (5)
- additional_info
- SC225519
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-02-04T04:25:00-08:00
- year_laid
- 19820204
