Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 2, 2016, 06:19 AM

  • D 0171_D 0170_20160201_233909_.mp4

Date
02/01/2016
W/O
552384
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00157
PipeID
P10047
Time
10:19 PM
Certificate
U-507-03-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3132
Sewer Name
D JOINT OUTFALL D - UNIT 6 RELIEF
City
LAWNDALE, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
16
Purpose
Routine Assessment
Project
WO_552384_TV05145_FEB2016
Sewer Type
GRAVITY
Material
Reinforced Concrete Pipe
Lining Method
Segmented Panel
Shape
Circular
Height
39 in.
Upstream MH
D 0171
Downstream MH
D 0170
Dir. of Survey
Downstream
Length Surveyed
611.2 ft.
Total Length
611.2 ft.
Structural Index
2
Structural Quick
2100
Structural Rating
2
O&M Index
2
O&M Quick
2W00
O&M Rating
238
Overall Index
2
Overall Quick
—
Overall Rating
240
Pipe schematic from manhole D 0171 to D 0170
MH: D 0171MH: D 0170downstream0 ft. AMH - Upstream Manhole, Survey Begins - D 01710 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MGO - General Observation - LATERAL AT MH 9 OCLOCK2 ft. MGO - General Observation - MAGNESIUM H.O. START10.5 ft. CL - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: NO10.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start607.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish611.2 ft. AMH - Downstream Manhole, Survey Ends - D 0170

Observation photos (4)

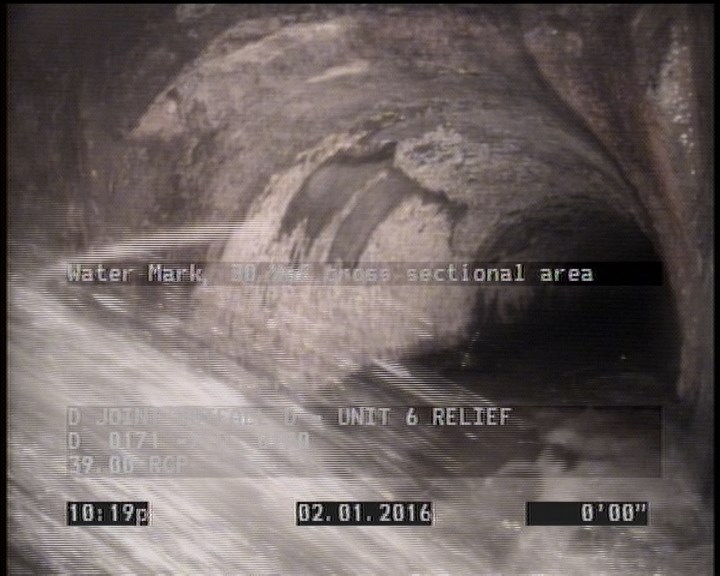

  • Water Mark, 30 %of cross sectional area

    0 ft. - Water Mark, 30 %of cross sectional area

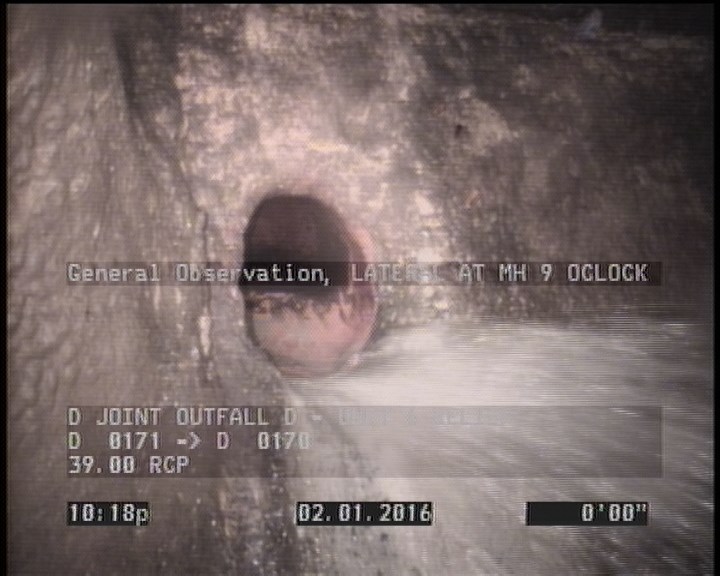

  • General Observation - LATERAL AT MH 9 OCLOCK

    0 ft. - General Observation - LATERAL AT MH 9 OCLOCK

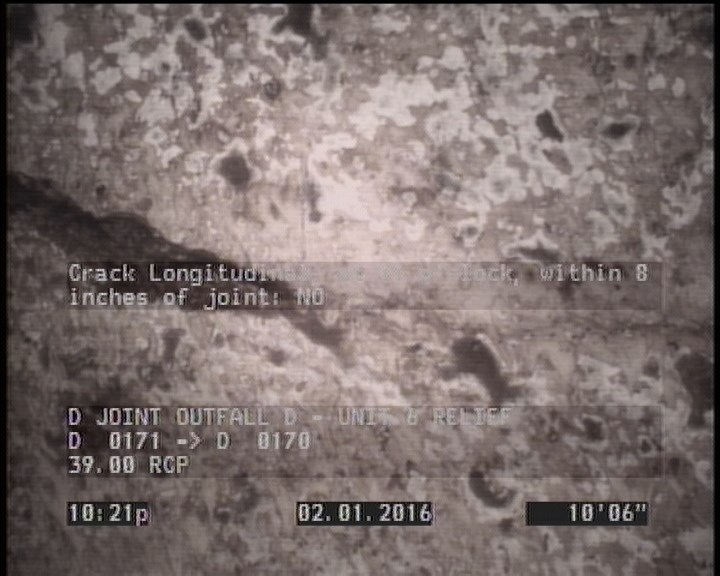

  • Crack Longitudinal, at 11 o'clock, within 8 inches of joint: NO

    10.5 ft. - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: NO

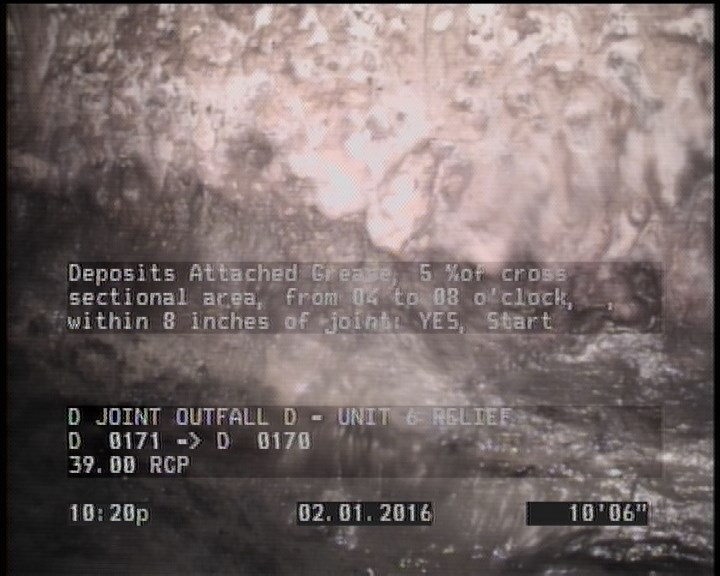

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    10.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P10047Work order 552384

Observations (9)

DistanceCodeObservation
0AMHD 0171
10.5CL—
611.2AMHD 0170
0MWM—
0MWL—
0MGOLATERAL AT MH 9 OCLOCK
607.5DAGS—
2MGOMAGNESIUM H.O. START
10.5DAGS—

Properties (5)

additional_info
SC225519
custom_field_two
4
customer
LACSD
datetime
2016-02-01T22:19:00-08:00
year_laid
19820204
