Wastewater/Activity/PacpInspection/1.0Feb 1, 2016, 11:25 AM
D 0173_D 0172_20160201_050934_.mp4
- Date
- 02/01/2016
- W/O
- 552384
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00157
- PipeID
- P10049
- Time
- 3:25 AM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3131
- Sewer Name
- D JOINT OUTFALL D - UNIT 6 RELIEF
- City
- HAWTHORNE, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 16
- Purpose
- Routine Assessment
- Project
- WO_552384_TV05145_FEB2016
- Sewer Type
- GRAVITY
- Material
- Reinforced Concrete Pipe
- Lining Method
- Segmented Panel
- Shape
- Circular
- Height
- 39 in.
- Upstream MH
- D 0173
- Downstream MH
- D 0172
- Dir. of Survey
- Downstream
- Length Surveyed
- 578.9 ft.
- Total Length
- 578.9 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2V00
- O&M Rating
- 226
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 226
Observation photos (2)

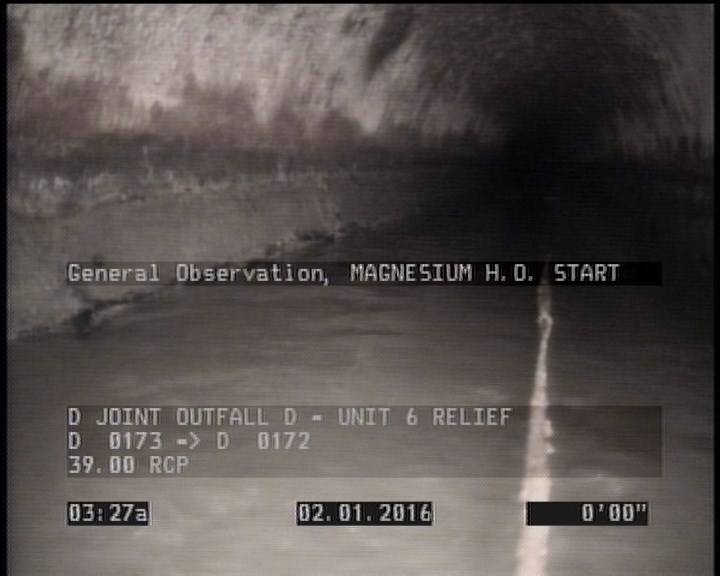

2 ft. - General Observation - MAGNESIUM H.O. START

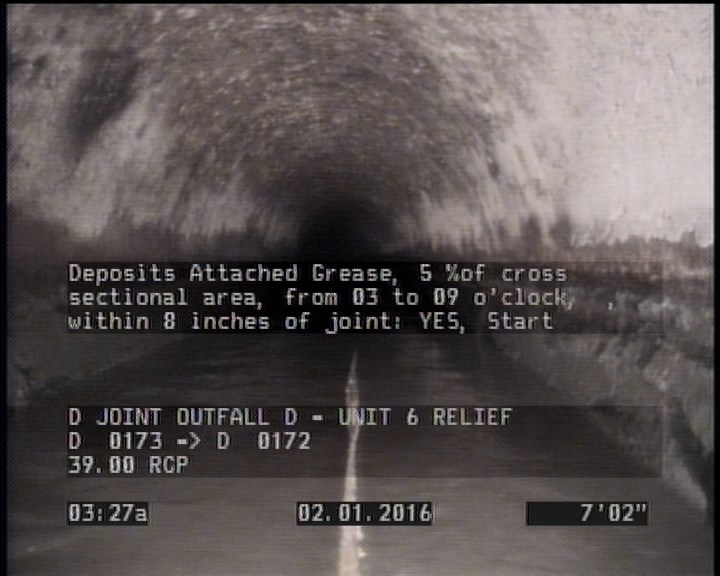

7.2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 2 | MGO | MAGNESIUM H.O. START |
| 0 | MWM | — |
| 578.9 | AMH | D 0172 |
| 0 | AMH | D 0173 |
| 7.2 | DAGS | — |
| 571 | DAGS | — |
| 0 | MWL | — |
Properties (5)
- additional_info
- SC225518
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-02-01T03:25:00-08:00
- year_laid
- 19820204
