Wastewater/Activity/PacpInspection/1.0Mar 2, 2016, 09:19 AM
21 1128_21 1127_20020101_044515.mp4
- Date
- 03/02/2016
- W/O
- 552368
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00780
- PipeID
- P16222
- Time
- 1:19 AM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3214
- Sewer Name
- 21 POMONA BOULEVARD INTERCEPTOR TRUNK
- City
- POMONA, CA
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 14
- Purpose
- Routine Assessment
- Project
- WO_552368_TV21019_FEB2016
- Sewer Type
- GRAVITY
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 33 in.
- Upstream MH
- 21 1128
- Downstream MH
- 21 1127
- Dir. of Survey
- Downstream
- Length Surveyed
- 312.5 ft.
- Total Length
- 312.5 ft.
- Structural Index
- 1
- Structural Quick
- 1H00
- Structural Rating
- 44
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 1
- Overall Quick
- —
- Overall Rating
- 48
Observation photos (3)

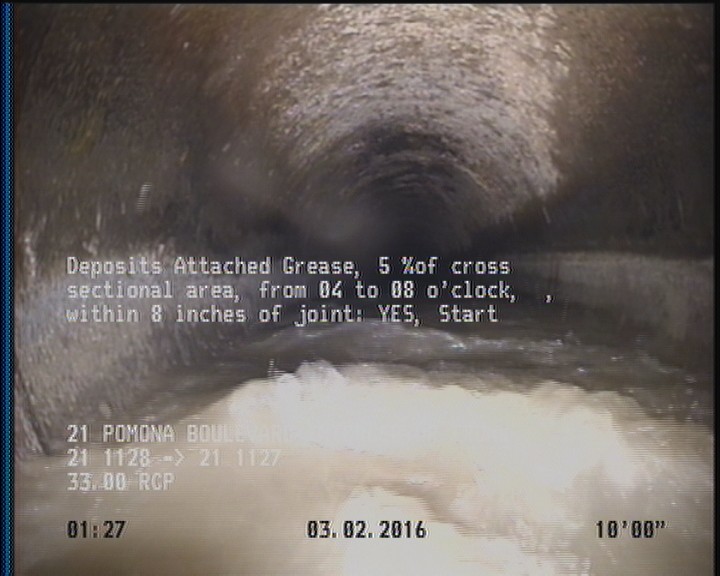

9.9 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

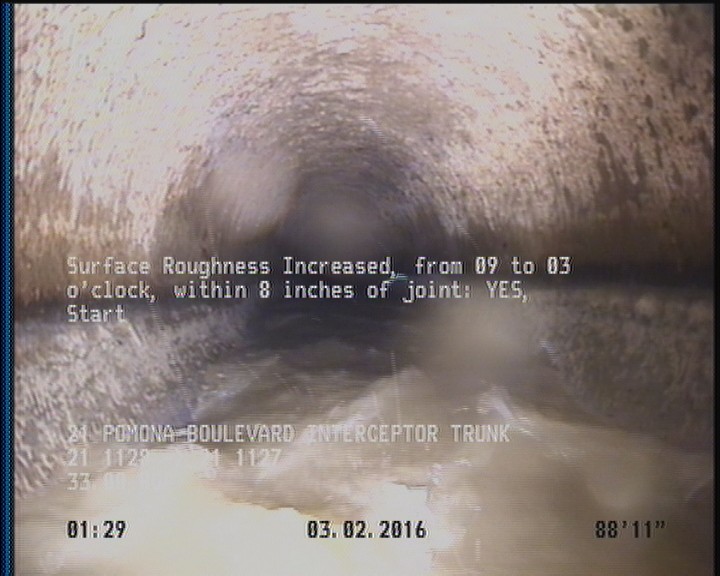

88.9 ft. - Surface Roughness Increased, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

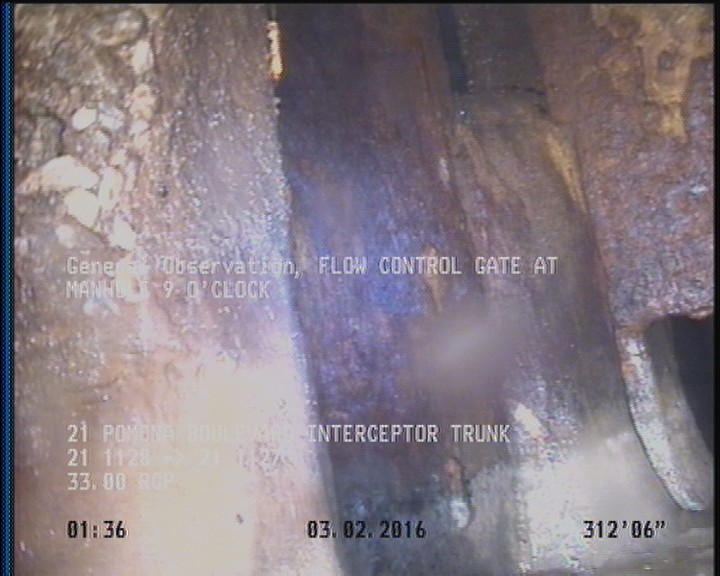

312.5 ft. - General Observation - FLOW CONTROL GATE AT MANHOLE 9 O'CLOCK
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 88.9 | SRI | — |
| 0 | MWL | — |
| 9.9 | DAGS | — |
| 0 | AMH | 21 1128 |
| 312.5 | MGO | FLOW CONTROL GATE AT MANHOLE 9 O'CLOCK |
| 0.1 | MGO | Magnesium hydroxide coating start |
| 307.7 | SRI | — |
| 312.5 | AMH | 21 1127 |
| 312 | MGO | FLOW CONTROL GATE AT MANHOLE |
| 307.7 | DAGS | — |
| 0 | MWM | — |
Properties (5)
- additional_info
- SC305303
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-03-02T01:19:00-08:00
- year_laid
- 19840209
