Wastewater/Activity/PacpInspection/1.0Feb 24, 2016, 10:01 AM
21 1130_21 1129_20160224_031848.mp4
- Date
- 02/24/2016
- W/O
- 552368
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00780
- PipeID
- P16224
- Time
- 2:01 AM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3206
- Sewer Name
- 21 POMONA BOULEVARD INTERCEPTOR TRUNK
- City
- POMONA, CA
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 14
- Purpose
- Routine Assessment
- Project
- WO_552368_TV21019_FEB2016
- Sewer Type
- GRAVITY
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 33 in.
- Upstream MH
- 21 1130
- Downstream MH
- 21 1129
- Dir. of Survey
- Downstream
- Length Surveyed
- 263.8 ft.
- Total Length
- 263.8 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 412I
- O&M Rating
- 135
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 135
Observation photos (5)

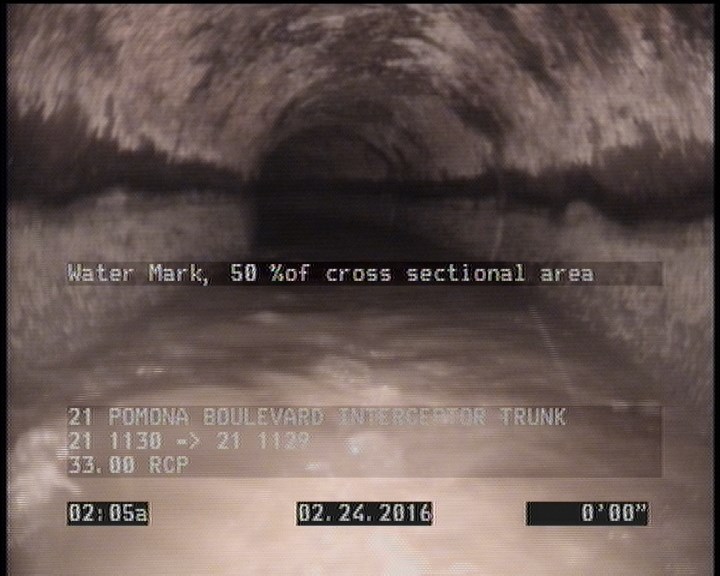

0 ft. - Water Mark, 50 %of cross sectional area

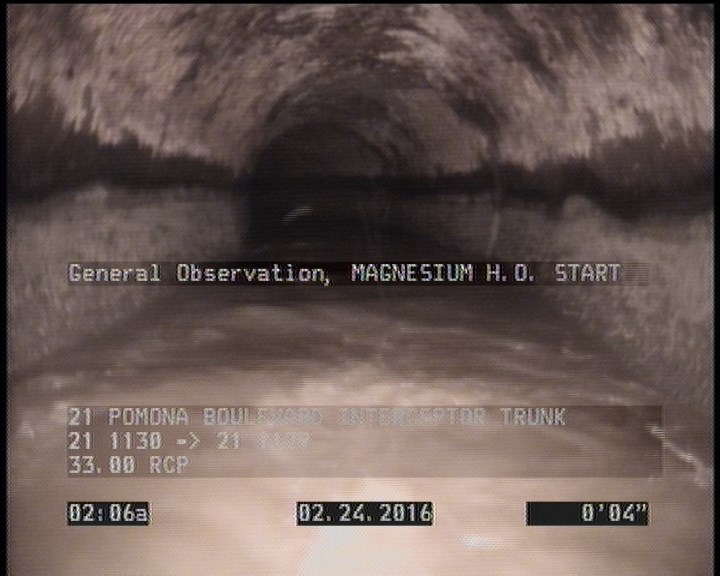

0.1 ft. - General Observation - MAGNESIUM H.O. START 60%

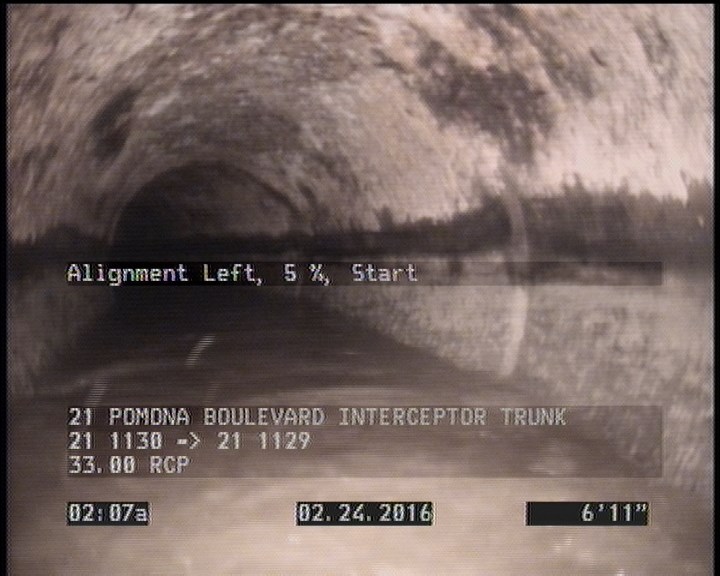

7 ft. - Alignment Left, 5 %, Start

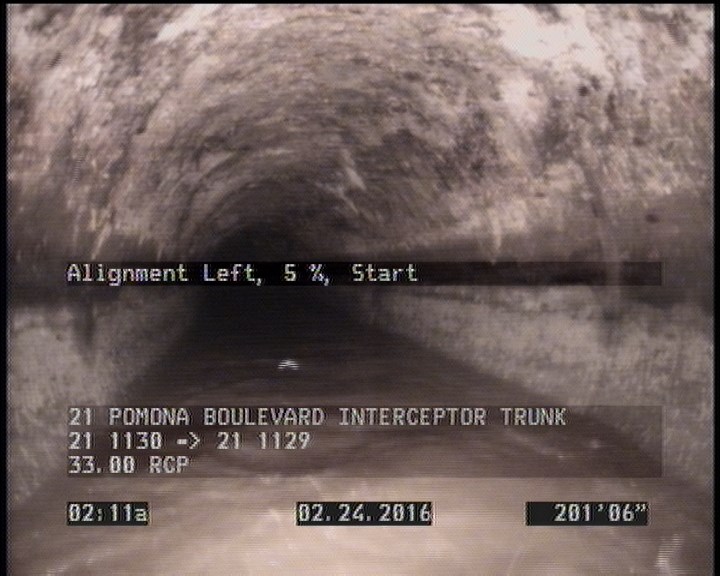

201.5 ft. - Alignment Left, 5 %, Start

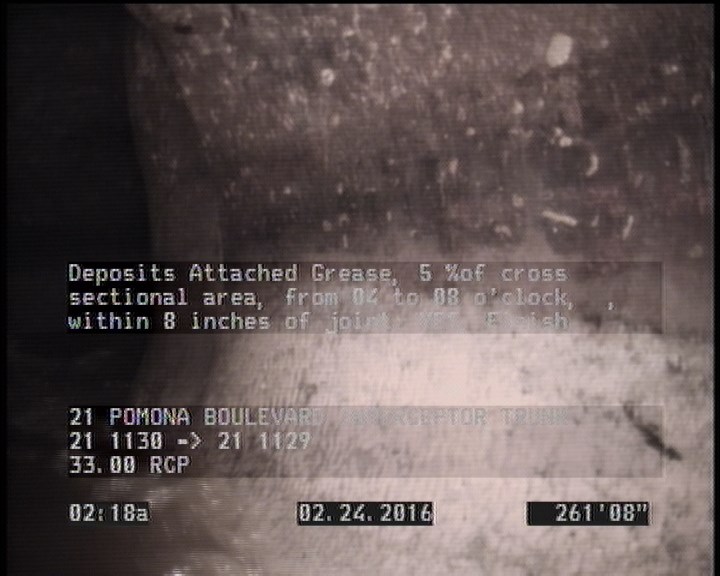

261.7 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 90.3 | LL | — |
| 263.8 | MGO | LATERAL AT MH 9 OCLOCK |
| 201.5 | LL | — |
| 0 | MWM | — |
| 261.7 | DAGS | — |
| 0 | AMH | 21 1130 |
| 0.1 | MGO | MAGNESIUM H.O. START 60% |
| 7 | DAGS | — |
| 0 | MWL | — |
| 263.8 | AMH | 21 1129 |
| 261.7 | LL | — |
| 7 | LL | — |
Properties (5)
- additional_info
- SC225544
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-02-24T02:01:22-08:00
- year_laid
- 19840209
