Wastewater/Activity/PacpInspection/1.0Feb 18, 2016, 07:22 PM
21 1151_21 1150_20160218_124200.mp4
- Date
- 02/18/2016
- W/O
- 552368
- Weather
- Dry
- Operator/Surveyor
- N./ZAHREDDINE
- Sewer ID
- Z00780
- PipeID
- P16245
- Time
- 11:22 AM
- Certificate
- U-109-7948
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3183
- Sewer Name
- 21 POMONA BOULEVARD INTERCEPTOR TRUNK
- City
- POMONA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 15
- Purpose
- Routine Assessment
- Project
- WO_552368_TV21019_FEB2016
- Sewer Type
- GRAVITY
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Upstream MH
- 21 1151
- Downstream MH
- 21 1150
- Dir. of Survey
- Downstream
- Length Surveyed
- 493.4 ft.
- Total Length
- 493.4 ft.
- Structural Index
- 3
- Structural Quick
- 4123
- Structural Rating
- 10
- O&M Index
- 3
- O&M Quick
- 4111
- O&M Rating
- 5
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 15
Observation photos (4)

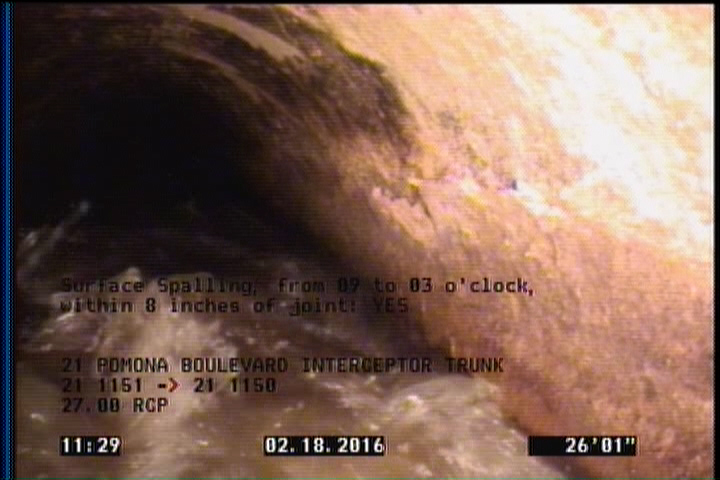

26.1 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES

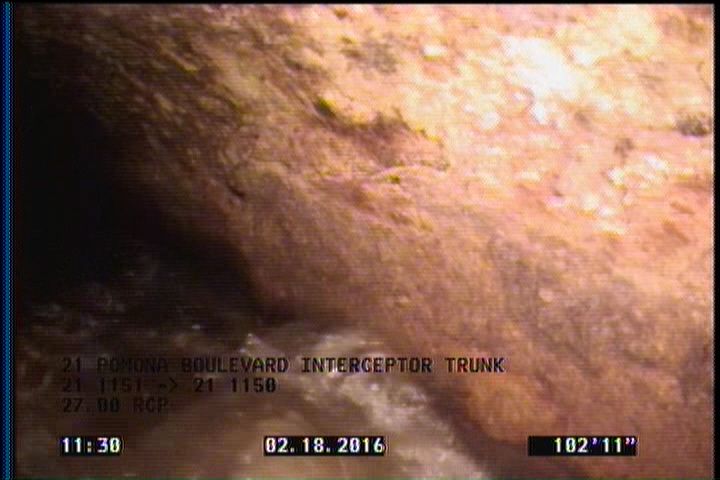

102.9 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: NO

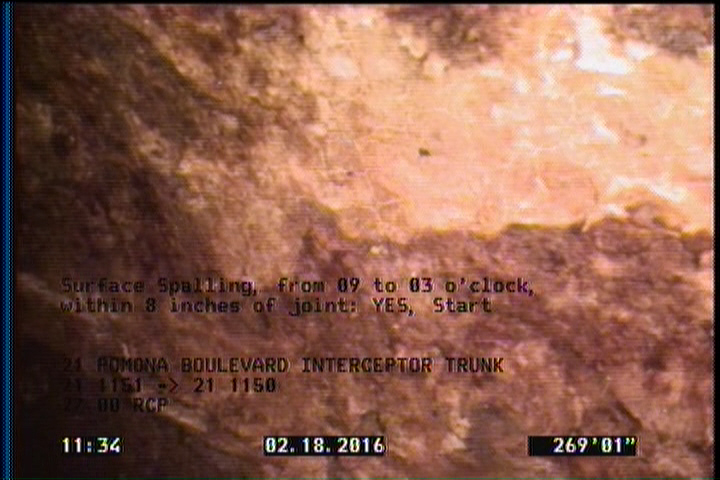

269 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

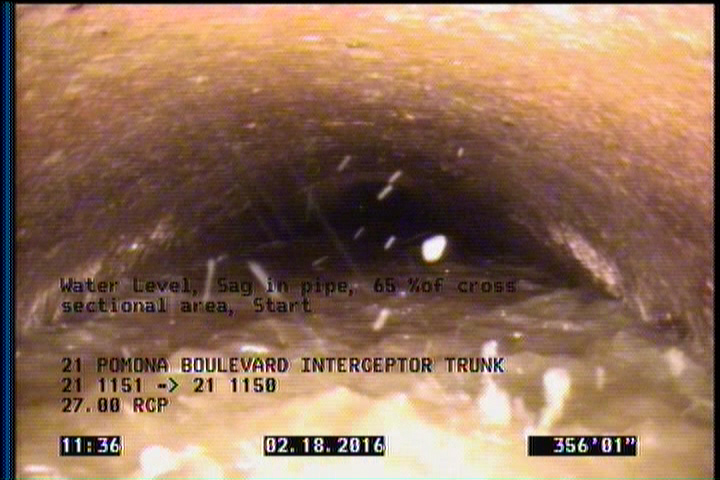

356.1 ft. - Water Level, Sag in pipe, 65 %of cross sectional area, Start
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 2 | MGO | MAGNEZIUM H.O COATING 40% start |
| 493.3 | VC | — |
| 418.2 | MWLS | — |
| 356.1 | MWLS | — |
| 102.9 | SSS | — |
| 0 | MWM | — |
| 26.1 | SSS | — |
| 0 | AMH | 21 1151 |
| 493.3 | SSS | — |
| 269 | SSS | — |
| 0 | MWL | — |
| 490.8 | MGO | MAGNEZIUM H.O COATING 40% finish |
| 493.4 | AMH | 21 1150 |
Properties (5)
- additional_info
- SC224998
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-02-18T11:22:39-08:00
- year_laid
- 19841228
