Wastewater/Activity/PacpInspection/1.0Feb 17, 2016, 10:45 AM
H 0614_H 0549_20160217_024611.mp4
- Date
- 02/17/2016
- W/O
- 552365
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00191
- PipeID
- P11032
- Time
- 2:45 AM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3149
- Sewer Name
- H JOINT OUTFALL H - UNIT 8H
- City
- BALDWIN PARK, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 24
- Purpose
- Routine Assessment
- Project
- WO_552365_TV15175_FEB2016
- Sewer Type
- GRAVITY
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 39 in.
- Upstream MH
- H 0614
- Downstream MH
- H 0549
- Dir. of Survey
- Downstream
- Length Surveyed
- 333.6 ft.
- Total Length
- 333.6 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2L00
- O&M Rating
- 130
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 130
Observation photos (1)

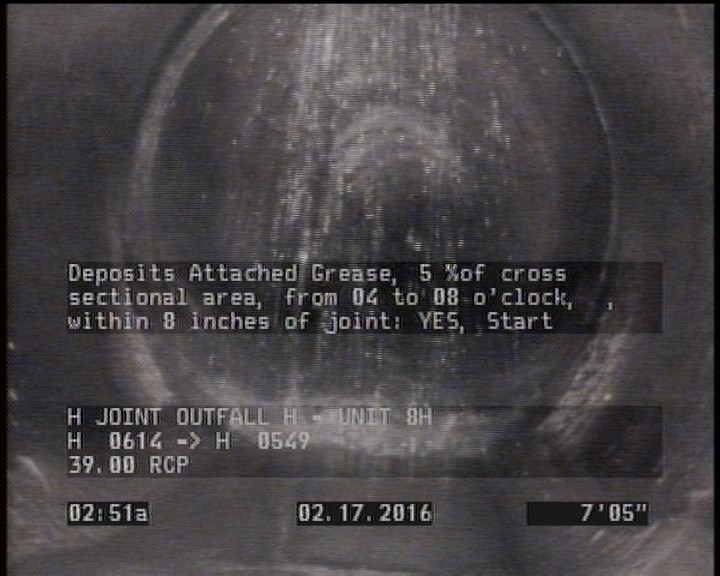

7.4 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 158.8 | TFC | — |
| 333.6 | AMH | H 0549 |
| 330.4 | DAGS | — |
| 0 | MGO | LATERAL AT MH 3 OCLOCK |
| 7.4 | DAGS | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 332.8 | MGO | LATERAL AT MH 9 OCLOCK |
| 9.3 | TFA | — |
| 0 | AMH | H 0614 |
| 2 | MGO | MAGNESIUM H.O. START |
Properties (4)
- additional_info
- SC225536
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-02-17T02:45:00-08:00
