Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 25, 2016, 09:00 AM

  • 21 0941_21 0940_20160225_021504.mp4

Date
02/25/2016
W/O
552362
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00760
PipeID
P16034
Time
1:00 AM
Certificate
U-507-03-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3207
Sewer Name
21 CLAREMONT OUTFALL TRUNK
City
CLAREMONT, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 21
Page No.
10
Purpose
Routine Assessment
Project
WO_552362_TV210004_FEB2016
Sewer Type
GRAVITY
Material
NRCP
Shape
Circular
Height
12 in.
Upstream MH
21 0941
Downstream MH
21 0940
Dir. of Survey
Downstream
Length Surveyed
368.6 ft.
Total Length
368.6 ft.
Structural Index
3
Structural Quick
3N21
Structural Rating
221
O&M Index
1
O&M Quick
1100
O&M Rating
1
Overall Index
3
Overall Quick
—
Overall Rating
222
Pipe schematic from manhole 21 0941 to 21 0940
MH: 21 0941MH: 21 0940downstream0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 21 09410 ft. MWM - Water Mark, 15 %of cross sectional area2 ft. MGO - General Observation - MAG COAT THROUGHOUT PIPE 45%2 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start80.8 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"123.3 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"205.9 ft. TR - Tap Rehabilitated, at 10 o'clock, -, within 8 inches of joint: NO, 4"224.3 ft. CL - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: NO305.6 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"318.1 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 4"328.9 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"366 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish368.6 ft. AMH - Downstream Manhole, Survey Ends - 21 0940368.6 ft. MGO - General Observation - CONNECTION AT MH 9 OCLOCK368.6 ft. VC - Vermin Cockroach

Observation photos (3)

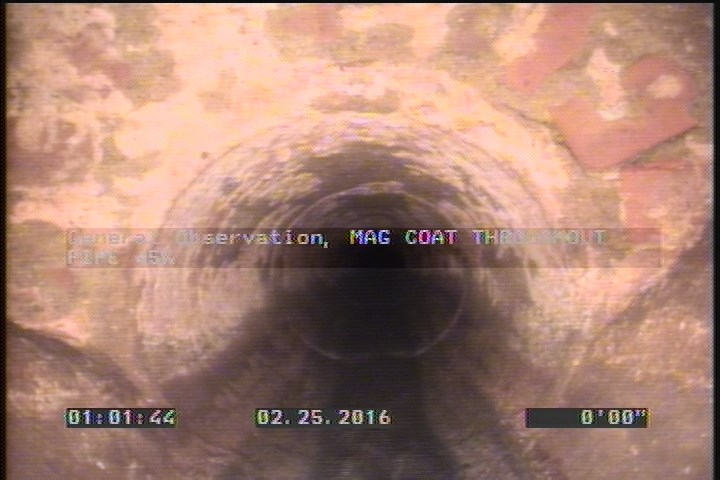

  • General Observation - MAG COAT THROUGHOUT PIPE 45%

    2 ft. - General Observation - MAG COAT THROUGHOUT PIPE 45%

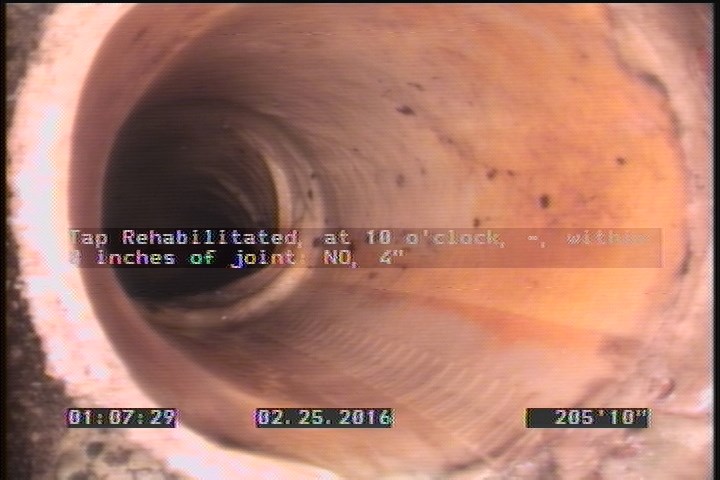

  • Tap Rehabilitated, at 10 o'clock, -, within 8 inches of joint: NO, 4"

    205.9 ft. - Tap Rehabilitated, at 10 o'clock, -, within 8 inches of joint: NO, 4"

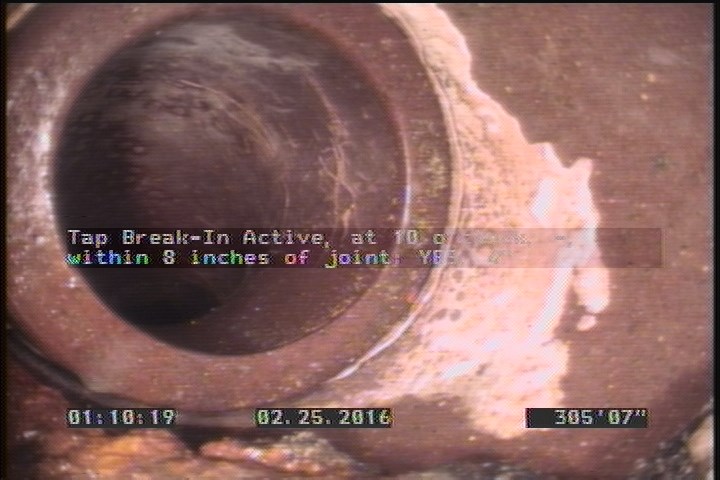

  • Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"

    305.6 ft. - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"

All inspections of P16034Work order 552362

Observations (16)

DistanceCodeObservation
366SAV—
2MGOMAG COAT THROUGHOUT PIPE 45%
368.6AMH21 0940
0MWL—
123.3TBA—
368.6MGOCONNECTION AT MH 9 OCLOCK
368.6VC—
0AMH21 0941
2SAV—
80.8TBA—
205.9TR—
0MWM—
224.3CL—
318.1TFC—
305.6TBA—
328.9TBA—

Properties (4)

additional_info
SC225545
custom_field_two
3
customer
LACSD
datetime
2016-02-25T01:00:51-08:00
