Wastewater/Activity/PacpInspection/1.0Feb 25, 2016, 07:31 AM
21 0943_21 0942_20160225_004035.mp4
- Date
- 02/24/2016
- W/O
- 552362
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00760
- PipeID
- P16036
- Time
- 11:31 PM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3207
- Sewer Name
- 21 CLAREMONT OUTFALL TRUNK
- City
- CLAREMONT, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 07
- Purpose
- Routine Assessment
- Project
- WO_552362_TV210004_FEB2016
- Sewer Type
- GRAVITY
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Upstream MH
- 21 0943
- Downstream MH
- 21 0942
- Dir. of Survey
- Downstream
- Length Surveyed
- 188.1 ft.
- Total Length
- 188.1 ft.
- Structural Index
- 3
- Structural Quick
- 3D00
- Structural Rating
- 75
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 77
Observation photos (5)

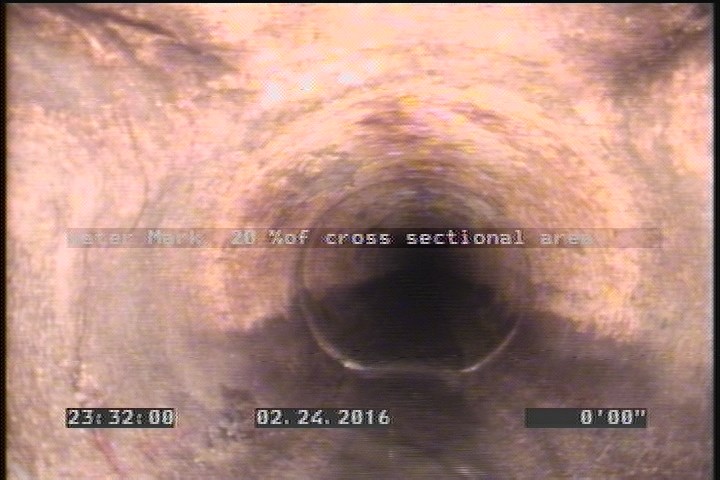

0 ft. - Water Mark, 20 %of cross sectional area

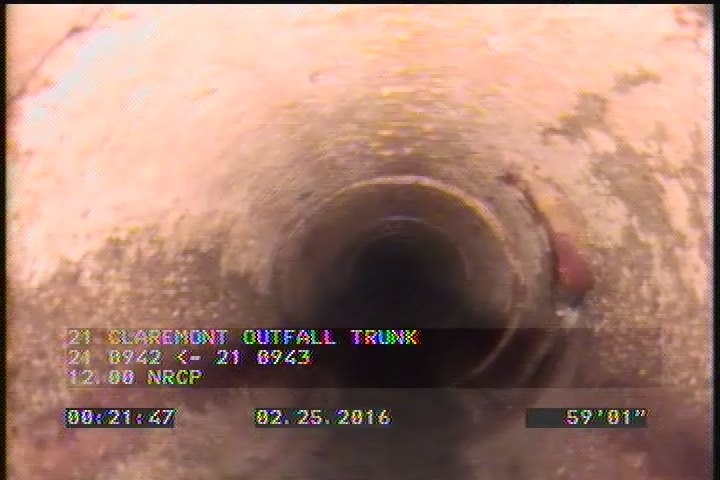

59 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

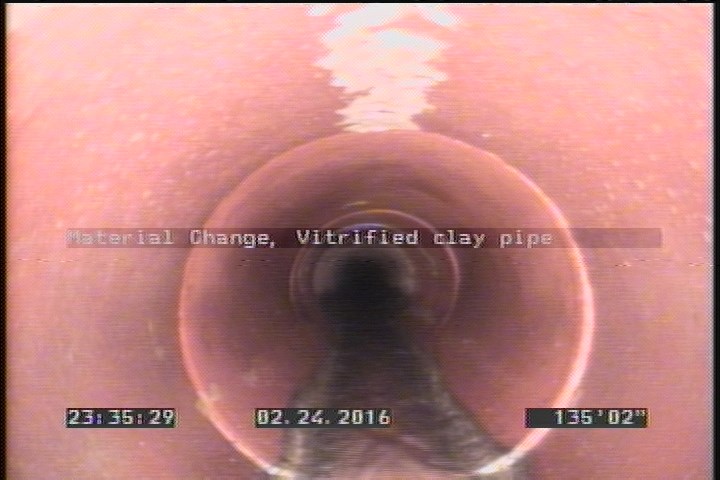

135.1 ft. - Material Change, Vitrified clay pipe

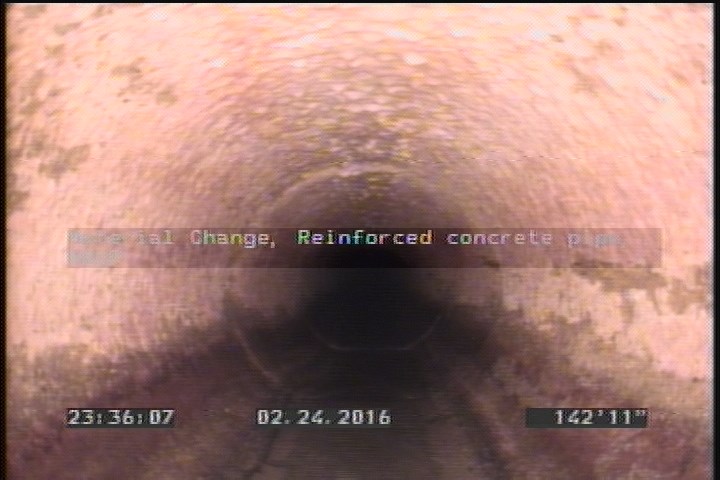

142.9 ft. - Material Change, Reinforced concrete pipe - NRCP

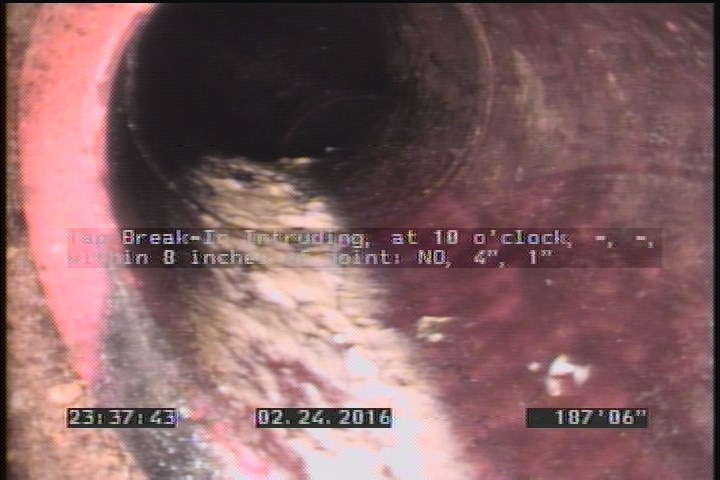

187.5 ft. - Tap Break-In Intruding, at 10 o'clock, -, -, within 8 inches of joint: NO, 4", 1"
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 187.5 | TBI | — |
| 188.1 | MSA | DUE TO INTRUDING LATERAL |
| 0 | MGO | CONNECTION AT MH 9 OCLOCK |
| 142.9 | MMC | NRCP |
| 135.1 | MMC | — |
| 0 | MWL | — |
| 186 | SAV | — |
| 0 | AMH | 21 0943 |
| 59 | SAV | — |
| 0 | MWM | — |
| 2 | MGO | MAG COAT THROUGHOUT PIPE 45% |
Properties (4)
- additional_info
- SC225545
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-02-24T23:31:23-08:00
