Wastewater/Activity/PacpInspection/1.0Feb 25, 2016, 08:18 AM
21 0943_21 0942_20160225_013320.mp4
- Date
- 02/25/2016
- W/O
- 552362
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00760
- PipeID
- P16036
- Time
- 12:18 AM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3207
- Sewer Name
- 21 CLAREMONT OUTFALL TRUNK
- City
- CLAREMONT, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 07
- Purpose
- V
- Project
- WO_552362_TV210004_FEB2016
- Sewer Type
- GRAVITY
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Upstream MH
- 21 0942
- Downstream MH
- 21 0943
- Dir. of Survey
- Upstream
- Length Surveyed
- 335.8 ft.
- Total Length
- 335.8 ft.
- Structural Index
- 3
- Structural Quick
- 3J00
- Structural Rating
- 171
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 173
Observation photos (5)

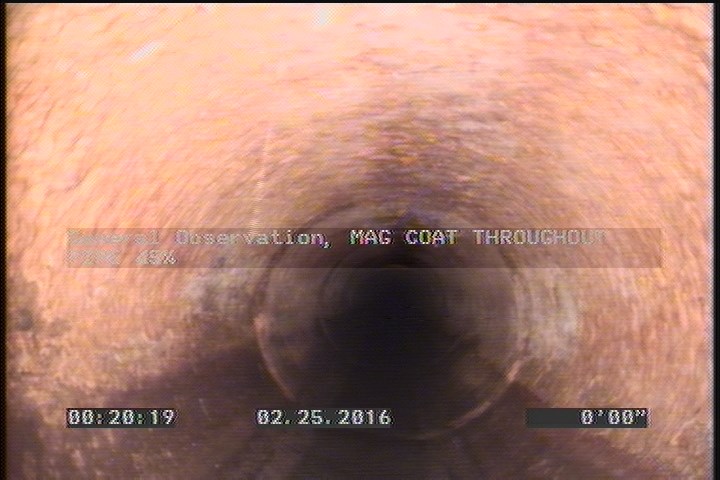

2 ft. - General Observation - MAG COAT THROUGHOUT PIPE 45%

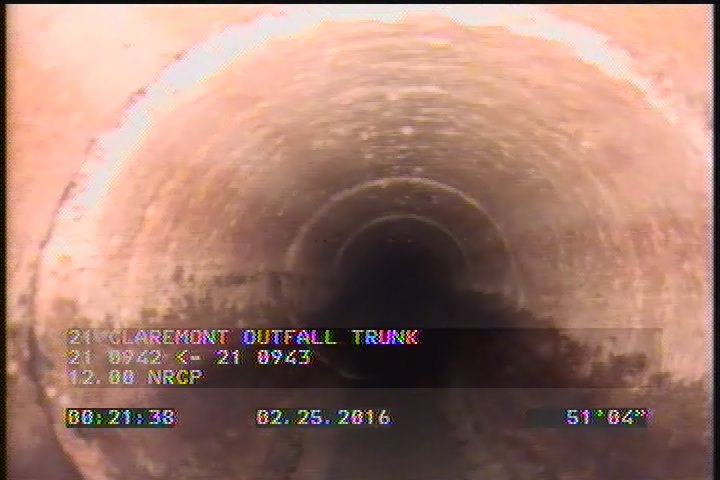

51 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

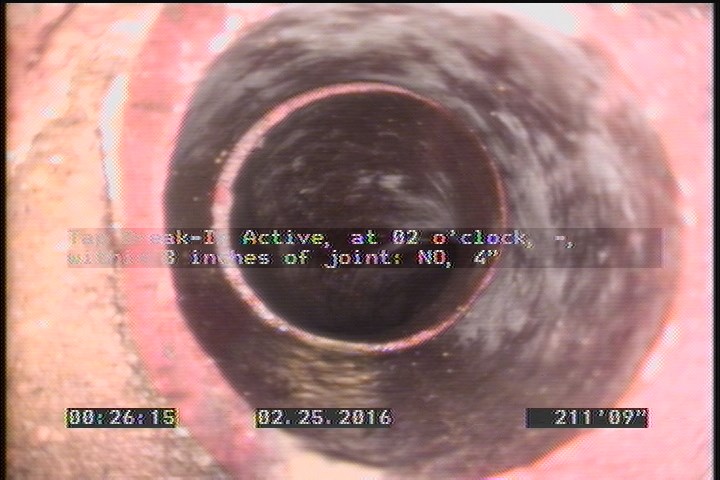

211.7 ft. - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"

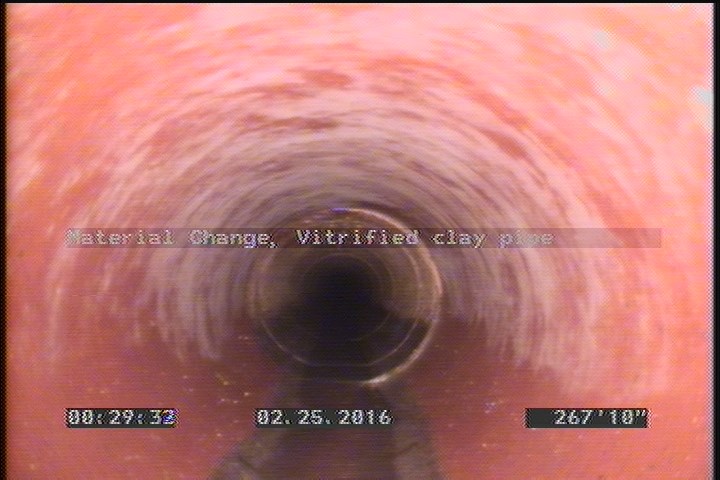

267.8 ft. - Material Change, Vitrified clay pipe

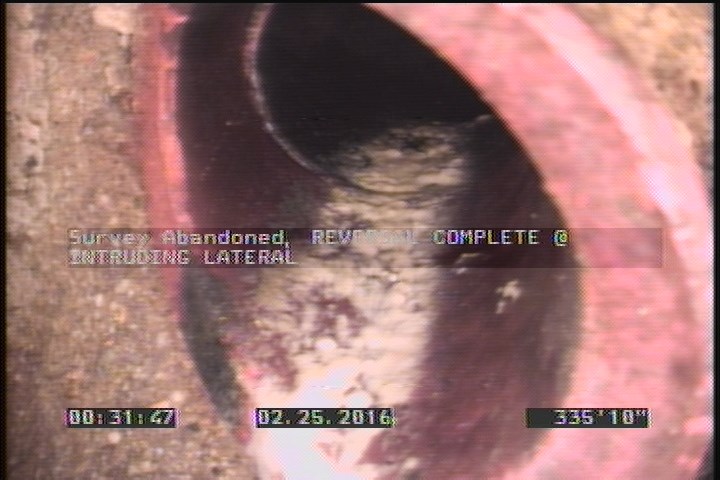

335.8 ft. - Survey Abandoned - REVERSAL COMPLETE @ INTRUDING LATERAL
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 266.3 | TFA | — |
| 335 | SAV | — |
| 0 | MWL | — |
| 211.7 | TBA | — |
| 0 | MGO | — |
| 2 | MGO | MAG COAT THROUGHOUT PIPE 45% |
| 51 | SAV | — |
| 267.8 | MMC | — |
| 0 | AMH | 21 0942 |
| 0 | MWM | — |
| 335.8 | MSA | REVERSAL COMPLETE @ INTRUDING LATERAL |
| 166.8 | TBA | — |
| 61.5 | TBI | — |
| 123.3 | TBA | — |
| 271.9 | MMC | NRCP |
Properties (4)
- additional_info
- SC225545
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-02-25T00:18:40-08:00
