Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 16, 2016, 11:30 AM

  • 02 1160_02 1159 _16112016_033517.mp4

Date
11/16/2016
W/O
602603
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00351
PipeID
P02944
Time
3:30 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3825
Sewer Name
02 GARFIELD AVENUE EXTENSION TRUNK
City
MONTEBELLO
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
09
Purpose
Routine Assessment
Project
WO_602603_TV02060_NOV2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
02 1159
Downstream MH
02 1160
Dir. of Survey
Upstream
Length Surveyed
41 ft.
Total Length
41 ft.
Structural Index
4
Structural Quick
4131
Structural Rating
7
O&M Index
4
O&M Quick
4131
O&M Rating
7
Overall Index
4
Overall Quick
—
Overall Rating
14
Pipe schematic from manhole 02 1159 to 02 1160
MH: 02 1159MH: 02 1160upstream0 ft. MSA - Survey Abandoned - CAM BLKD BY DEBRIS0 ft. DSZ - Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: NO0.6 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES3.1 ft. MCU - Camera Underwater10.4 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES24.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"41 ft. MWL - Water Level, 15 %of cross sectional area41 ft. AMH - Downstream Manhole, Survey Begins - 02 115941 ft. MWM - Water Mark, 20 %of cross sectional area41 ft. MGO - Reversal Inspection

Observation photos (3)

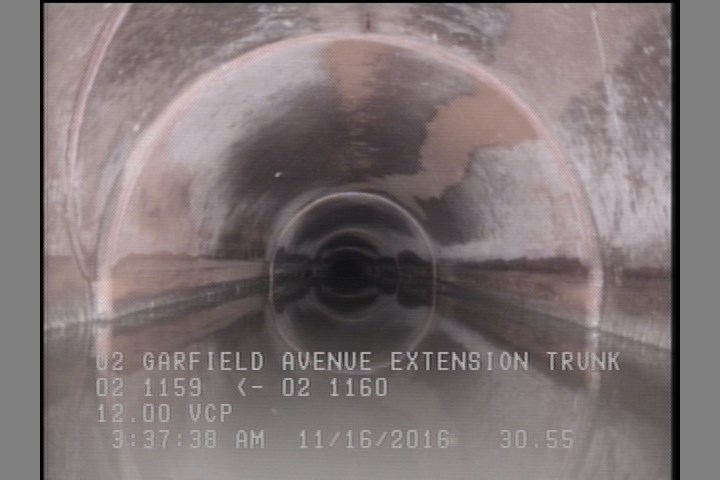

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    30.6 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

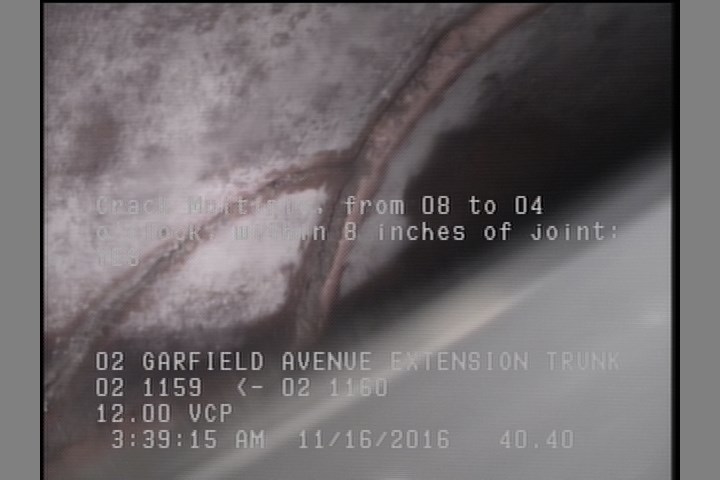

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    40.4 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

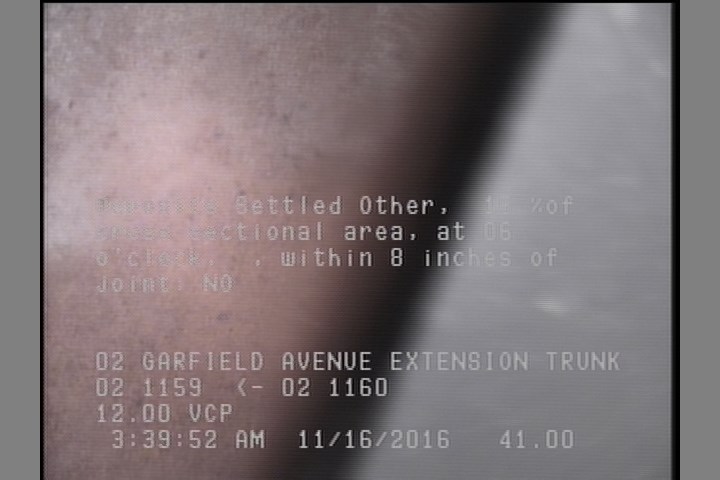

  • Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: NO

    41 ft. - Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: NO

All inspections of P02944Work order 602603

Observations (10)

DistanceCodeObservation
41MSACAM BLKD BY DEBRIS
0MWL—
41DSZ—
40.4CM—
0AMH02 1159
16.2TFC—
37.9MCU—
0MWM—
30.6FM—
0MGO—

Properties (5)

additional_info
SC304574
custom_field_two
5
customer
LACSD
datetime
2016-11-16T03:30:01-08:00
sewer_category
SS
