Wastewater/Activity/PacpInspection/1.0Nov 16, 2016, 06:31 AM
02 1164_02 1163_15112016_223157.mp4
- Date
- 11/15/2016
- W/O
- 602603
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00351
- PipeID
- P02948
- Time
- 10:31 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3825
- Sewer Name
- 02 GARFIELD AVENUE EXTENSION TRUNK
- City
- MONTEBELLO
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_602603_TV02060_NOV2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 10 in.
- Width
- 10 in.
- Upstream MH
- 02 1164
- Downstream MH
- 02 1163
- Dir. of Survey
- Downstream
- Length Surveyed
- 234.6 ft.
- Total Length
- 234.7 ft.
- Structural Index
- 3
- Structural Quick
- 3G21
- Structural Rating
- 122
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 122
Observation photos (4)

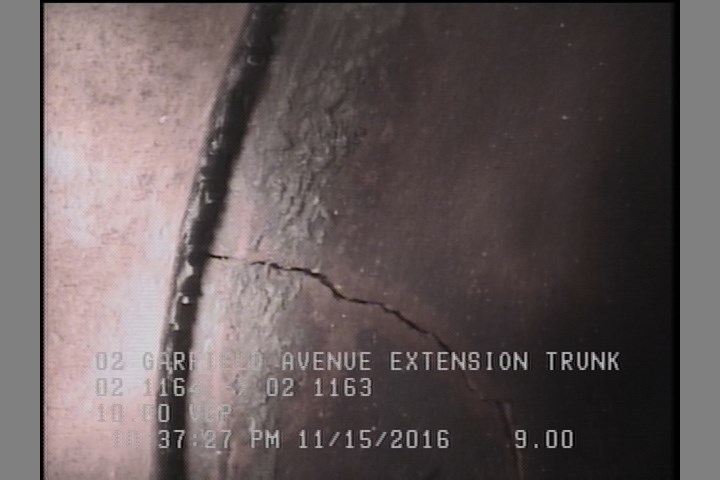

9 ft. - Crack Spiral, from 07 to 10 o'clock, within 8 inches of joint: YES

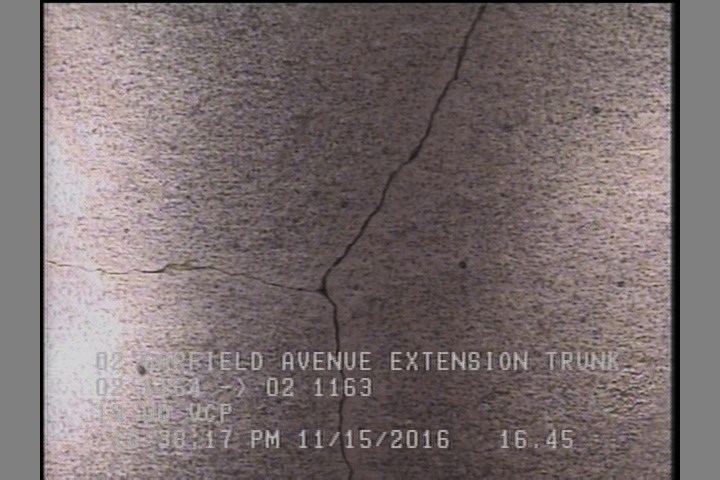

16.4 ft. - Crack Multiple, from 09 to 11 o'clock, within 8 inches of joint: YES

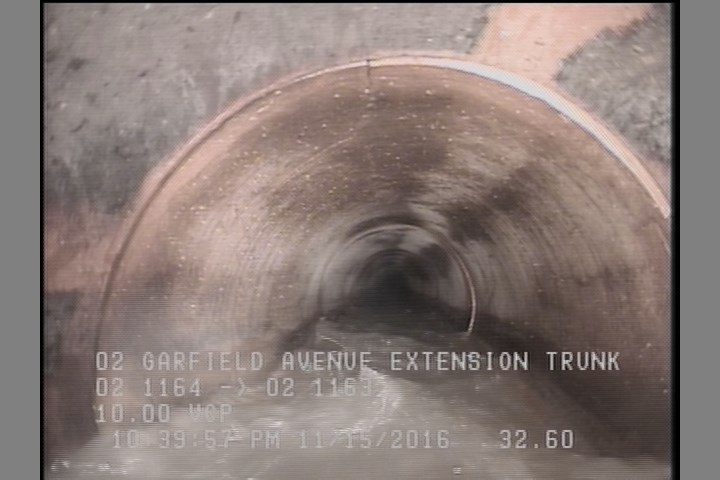

32.6 ft. - Crack Multiple, from 08 to 03 o'clock, within 8 inches of joint: YES, Start

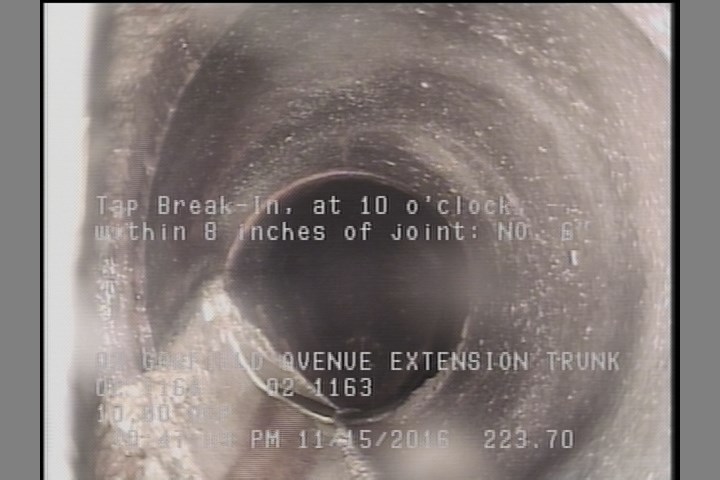

223.7 ft. - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 228.3 | TFC | — |
| 229.5 | CM | — |
| 130.8 | TF | — |
| 32.6 | CM | — |
| 31.6 | TF | — |
| 16.4 | CM | — |
| 234.7 | AMH | 02 1164 |
| 223.7 | TB | — |
| 0 | MGO | CAPPED LATERAL 3 O'CLOCK @ MH |
| 9 | CS | — |
| 182.7 | TFC | — |
| 0 | AMH | 02 1164 |
| 0 | MWL | — |
| 79.5 | TF | — |
| 0 | MWM | — |
Properties (5)
- additional_info
- SC304574
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-11-15T22:31:14-08:00
- sewer_category
- Gravity
