Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 16, 2016, 11:14 AM

  • 02 1159_02 1158_16112016_031437.mp4

Date
11/16/2016
W/O
602603
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00351
PipeID
P02943
Time
3:14 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3825
Sewer Name
02 GARFIELD AVENUE EXTENSION TRUNK
City
MONTEBELLO
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
09
Purpose
Routine Assessment
Project
WO_602603_TV02060_NOV2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Width
10 in.
Upstream MH
02 1159
Downstream MH
02 1158
Dir. of Survey
Downstream
Length Surveyed
240.9 ft.
Total Length
240.9 ft.
Structural Index
3
Structural Quick
3F21
Structural Rating
107
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
107
Pipe schematic from manhole 02 1159 to 02 1158
MH: 02 1159MH: 02 1158downstream0 ft. AMH - Upstream Manhole, Survey Begins - 02 11590 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area3.2 ft. CL - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES10.7 ft. CM - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES49.4 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES78.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"79.5 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES82.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start126.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"174.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"225.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"240.9 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish240.9 ft. AMH - Downstream Manhole, Survey Ends - 02 1158

Observation photos (5)

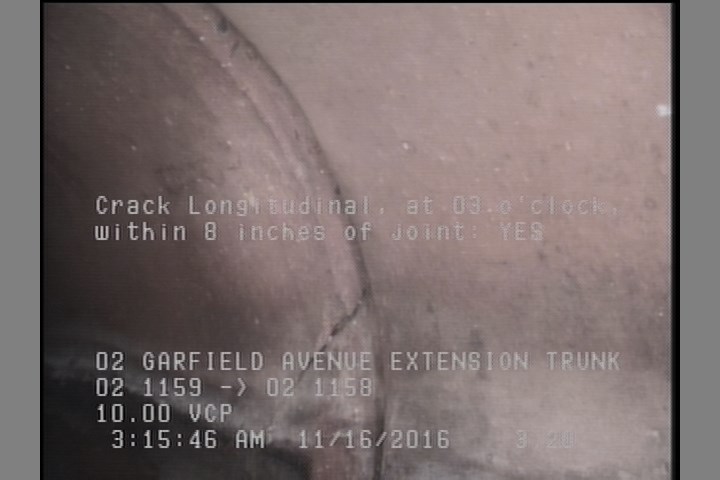

  • Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

    3.2 ft. - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

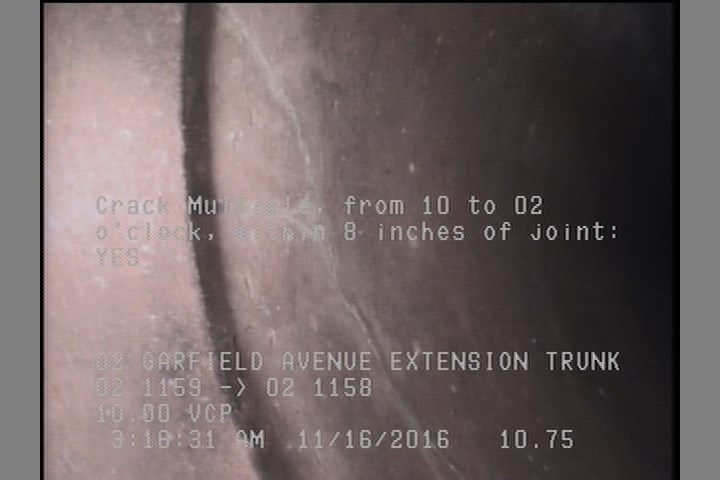

  • Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

    10.7 ft. - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

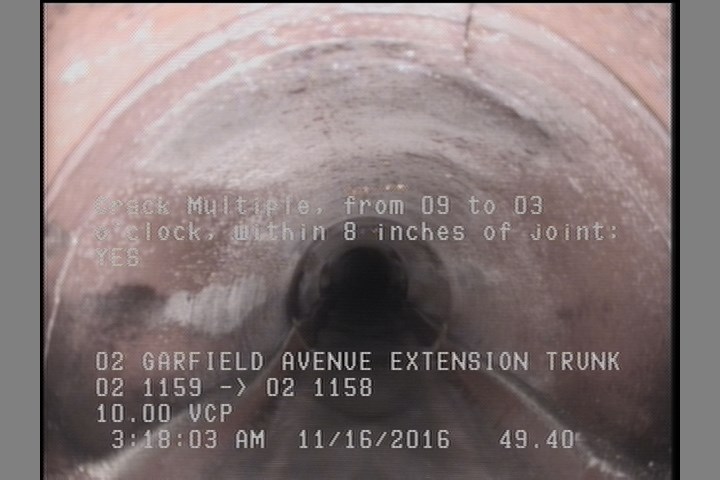

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    49.4 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

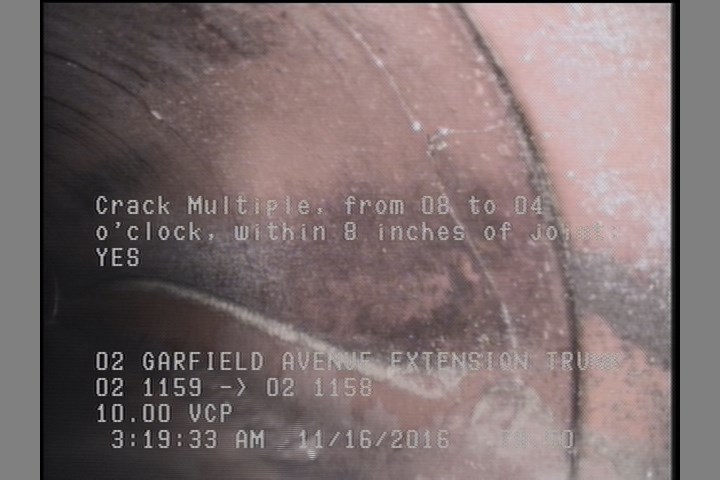

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    79.5 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

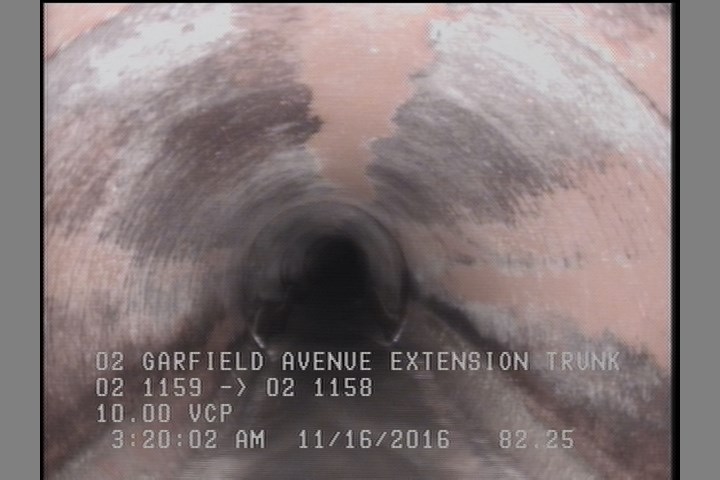

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    82.3 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P02943Work order 602603

Observations (14)

DistanceCodeObservation
10.7CM—
126.6TFC—
174.7TFC—
79.5CM—
240.9CM—
0AMH02 1159
240.9AMH02 1158
78.4TFC—
82.3CM—
0MWL—
0MWM—
49.4CM—
225.3TFC—
3.2CL—

Properties (5)

additional_info
SC304574
custom_field_two
3
customer
LACSD
datetime
2016-11-16T03:14:13-08:00
sewer_category
Gravity
