Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 16, 2016, 09:38 AM

  • 02 1166_02 1165_16112016_013839.mp4

Date
11/16/2016
W/O
602603
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00351
PipeID
P02950
Time
1:38 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3825
Sewer Name
02 GARFIELD AVENUE EXTENSION TRUNK
City
MONTEBELLO
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
09
Purpose
Routine Assessment
Project
WO_602603_TV02060_NOV2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Width
10 in.
Upstream MH
02 1165
Downstream MH
02 1166
Dir. of Survey
Upstream
Length Surveyed
224.4 ft.
Total Length
224.5 ft.
Structural Index
3
Structural Quick
3E21
Structural Rating
98
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
98
Pipe schematic from manhole 02 1165 to 02 1166
MH: 02 1165MH: 02 1166upstream0 ft. AMH - Upstream Manhole, Survey Ends - 02 11661.2 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK1.2 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK4.5 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish128.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"157.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start159.9 ft. CL - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES173.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"177.3 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES224.5 ft. MWL - Water Level, 20 %of cross sectional area224.5 ft. AMH - Downstream Manhole, Survey Begins - 02 1165224.5 ft. MWM - Water Mark, 20 %of cross sectional area

Observation photos (2)

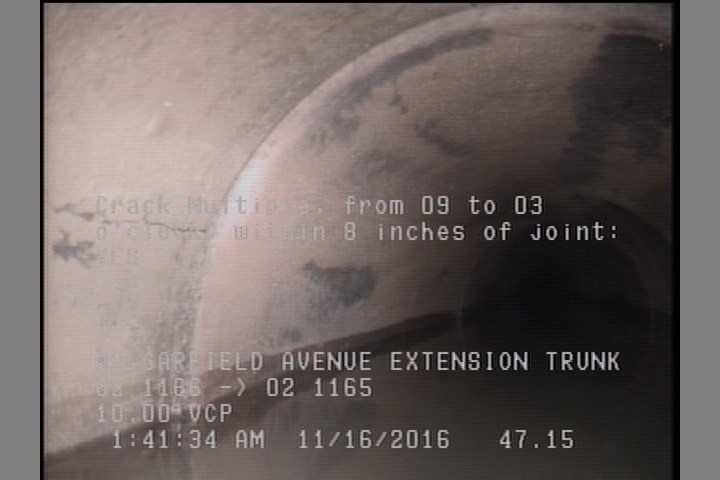

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    47.2 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

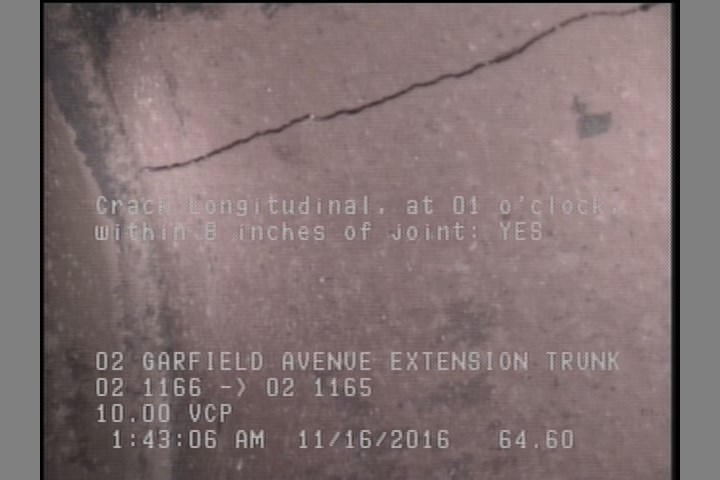

  • Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

    64.6 ft. - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

All inspections of P02950Work order 602603

Observations (12)

DistanceCodeObservation
47.2CM—
220CM—
64.6CL—
0MWL—
50.9TFC—
0AMH02 1165
67.2CM—
223.3MGOCONNECTION AT MH 3 O'CLOCK
223.3MGOCONNECTION AT MH 9 O'CLOCK
224.5AMH02 1166
96.1TFC—
0MWM—

Properties (5)

additional_info
SC304574
custom_field_two
3
customer
LACSD
datetime
2016-11-16T01:38:13-08:00
sewer_category
Gravity
