Wastewater/Activity/PacpInspection/1.0Dec 6, 2016, 07:22 AM
02 2249_02 2248 _12052016_232617.mp4
- Date
- 12/05/2016
- W/O
- 602592
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00353
- PipeID
- P04569
- Time
- 11:22 PM
- Certificate
- U-507-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3931
- Sewer Name
- 02 TRACT #5445 RELIEF TRUNK
- City
- LOS ANGELES, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 13
- Purpose
- V
- Project
- WO_602592_TV02117_NOV2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 02 2249
- Downstream MH
- 02 2248
- Dir. of Survey
- Downstream
- Length Surveyed
- 2 ft.
- Total Length
- 2 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 4
- O&M Quick
- 5121
- O&M Rating
- 7
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (1)

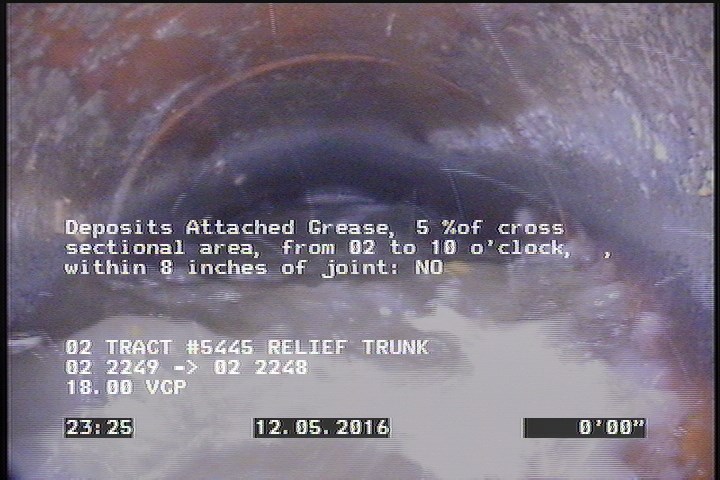

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 02 to 10 o'clock, , within 8 inches of joint: NO
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 2 | MSA | DUE TO SIPHON |
| 0 | MWL | — |
| 2 | MGO | VIEW OF THE DOWN LEG OF THE UPSTREAM MH |
| 2 | DAGS | — |
| 0 | MGO | LATERAL AT MH 9 O CLOCK |
| 0 | AMH | 02 2249 |
| 0 | MWM | — |
Properties (5)
- additional_info
- SC317675
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-12-05T23:22:00-08:00
- sewer_category
- Siphon
