Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 30, 2016, 09:39 AM

  • 02 1454A_02 1454_11302016_014608.mp4

Date
11/30/2016
W/O
602592
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00307
PipeID
P04696
Time
1:39 AM
Certificate
U-507-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3927
Sewer Name
02 TRACT #5445 TRUNK
City
LOS ANGELES, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
13
Purpose
Routine Assessment
Project
WO_602592_TV02117_NOV2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
02 1454
Downstream MH
02 1454A
Dir. of Survey
Upstream
Length Surveyed
162.9 ft.
Total Length
162.9 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
2
Pipe schematic from manhole 02 1454 to 02 1454A
MH: 02 1454MH: 02 1454Aupstream0 ft. AMH - Upstream Manhole, Survey Ends - 02 1454A0 ft. MGO - General Observation - HEAVY DEBRIS AT MANHOLE1.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish102.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 4"107.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 4"145.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"155.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start162.9 ft. MWL - Water Level, 10 %of cross sectional area162.9 ft. AMH - Downstream Manhole, Survey Begins - 02 1454162.9 ft. MGO - General Observation - LATERAL AT MH 9 O CLOCK162.9 ft. MWM - Water Mark, 25 %of cross sectional area

Observation photos (1)

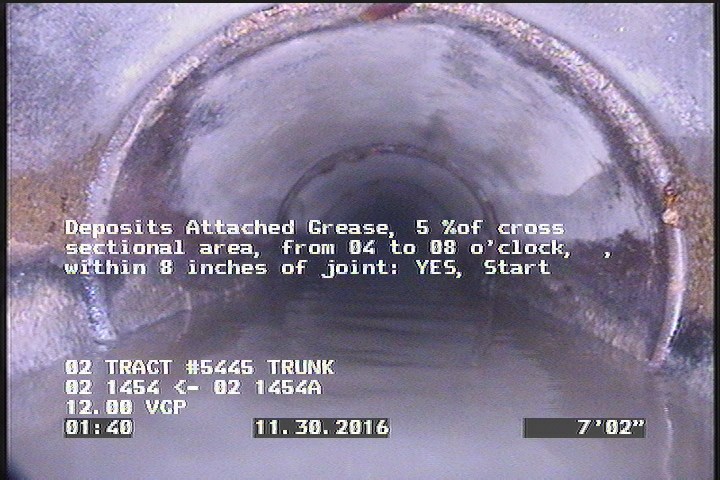

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    7.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P04696Work order 602592

Observations (11)

DistanceCodeObservation
0MWL—
0AMH02 1454
162.9AMH02 1454A
55.3TF—
7.1DAGS—
0MGOLATERAL AT MH 9 O CLOCK
161DAGS—
17.5TFC—
60.4TF—
0MWM—
162.9MGOHEAVY DEBRIS AT MANHOLE

Properties (5)

additional_info
SC317670
custom_field_two
4
customer
LACSD
datetime
2016-11-30T01:39:00-08:00
sewer_category
Gravity
