Wastewater/Activity/PacpInspection/1.0Nov 30, 2016, 10:12 AM
02 2248_02 2247 _11302016_022302.mp4
- Date
- 11/30/2016
- W/O
- 602592
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00353
- PipeID
- P03018
- Time
- 2:12 AM
- Certificate
- U-507-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3927
- Sewer Name
- 02 TRACT #5445 RELIEF TRUNK
- City
- LOS ANGELES, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 13
- Purpose
- Routine Assessment
- Project
- WO_602592_TV02117_NOV2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 02 2248
- Downstream MH
- 02 2247
- Dir. of Survey
- Downstream
- Length Surveyed
- 329.9 ft.
- Total Length
- 329.9 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (1)

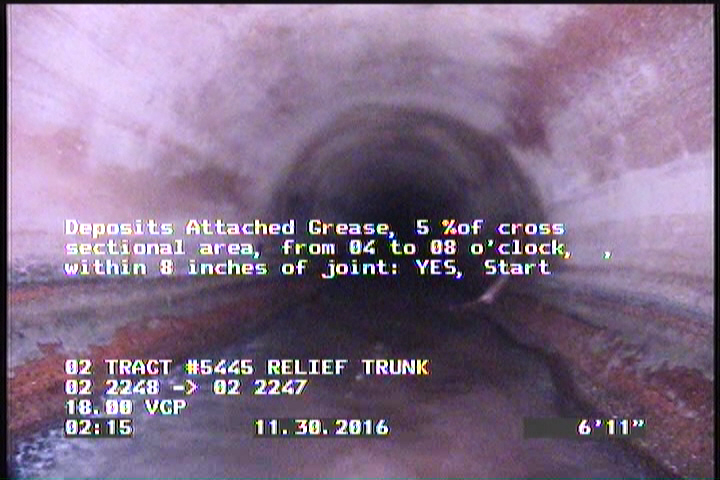

7 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 329.9 | AMH | 02 2247 |
| 326.9 | DAGS | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 0 | AMH | 02 2248 |
| 7 | DAGS | — |
Properties (5)
- additional_info
- SC317670
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-11-30T02:12:00-08:00
- sewer_category
- Gravity
