Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 4, 2016, 10:34 AM

  • 01 0005_01 0004_04112016_033516.mp4

Date
11/04/2016
W/O
602591
Weather
Dry
Operator/Surveyor
R.VARGAS
Sewer ID
Z00209
PipeID
P00669
Time
3:34 AM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3872
Sewer Name
01 HOOPER AVENUE-COMPTON CREEK TRUNK
City
COMPTON
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
16
Purpose
Routine Assessment
Project
WO_602591_TV01050_NOV2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
33 in.
Width
33 in.
Upstream MH
01 0004
Downstream MH
01 0005
Dir. of Survey
Upstream
Length Surveyed
427.2 ft.
Total Length
427.2 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
3
O&M Quick
3121
O&M Rating
5
Overall Index
3
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole 01 0004 to 01 0005
MH: 01 0004MH: 01 0005upstream0 ft. AMH - Upstream Manhole, Survey Ends - 01 00051.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish24.1 ft. OBN - Obstacles Construction Debris, 20 %of cross sectional area, from 04 to 08 o'clock, Finish326.4 ft. OBN - Obstacles Construction Debris, 20 %of cross sectional area, from 04 to 08 o'clock, Start - NOT VISIBLE424.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start427.2 ft. MGO - General Observation - ROACHES IN MH427.2 ft. MGO - General Observation - LINING CIPP427.2 ft. AMH - Downstream Manhole, Survey Begins - 01 0004427.2 ft. MWM - Water Mark, 20 %of cross sectional area427.2 ft. MWL - Water Level, 15 %of cross sectional area

Observation photos (1)

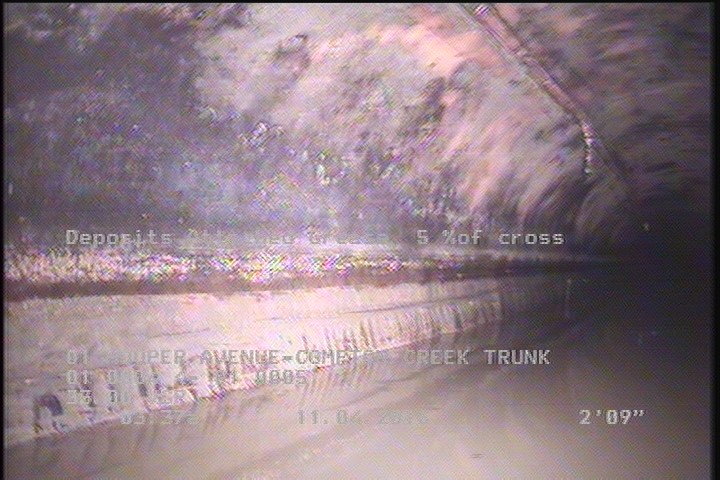

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2.8 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P00669Work order 602591

Observations (10)

DistanceCodeObservation
0MGOROACHES IN MH
403.1OBN—
427.2AMH01 0005
425.5DAGS—
0MGOLINING CIPP
2.8DAGS—
0AMH01 0004
100.8OBNNOT VISIBLE
0MWM—
0MWL—

Properties (5)

additional_info
SC305202
custom_field_two
4
customer
LACSD
datetime
2016-11-04T03:34:48-07:00
sewer_category
Gravity
