Wastewater/Activity/PacpInspection/1.0Nov 4, 2016, 10:04 AM
01 0004_01 0003_04112016_030451.mp4
- Date
- 11/04/2016
- W/O
- 602591
- Weather
- Dry
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z00209
- PipeID
- P00668
- Time
- 3:04 AM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3872
- Sewer Name
- 01 HOOPER AVENUE-COMPTON CREEK TRUNK
- City
- COMPTON
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 16
- Purpose
- Routine Assessment
- Project
- WO_602591_TV01050_NOV2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 33 in.
- Width
- 33 in.
- Upstream MH
- 01 0003
- Downstream MH
- 01 0004
- Dir. of Survey
- Upstream
- Length Surveyed
- 441.6 ft.
- Total Length
- 441.6 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (1)

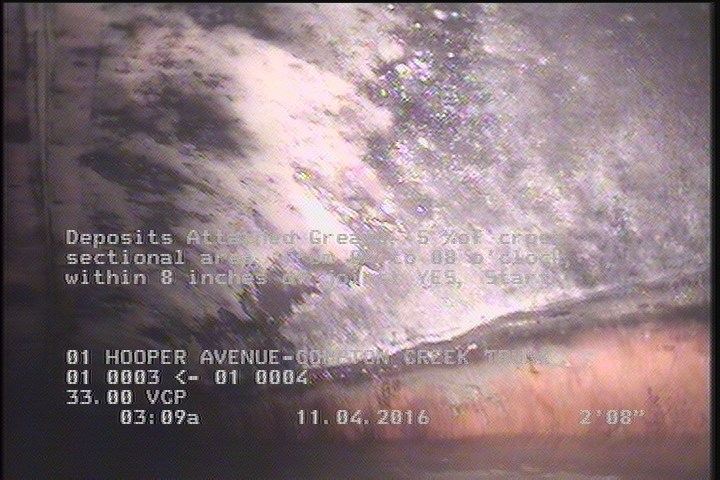

2.7 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 2.7 | DAGS | — |
| 0 | MGO | ROACHES IN MH |
| 0 | AMH | 01 0003 |
| 437.9 | DAGS | — |
| 0 | MWL | — |
| 441.6 | MGO | ROACHES IN MH |
| 0 | MWM | — |
| 441.6 | AMH | 01 0004 |
Properties (5)
- additional_info
- SC305202
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-11-04T03:04:31-07:00
- sewer_category
- Gravity
