Wastewater/Activity/PacpInspection/1.0Nov 2, 2016, 06:25 AM
01 0016_01 0015_01112016_232633.mp4
- Date
- 11/01/2016
- W/O
- 602591
- Weather
- Dry
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z00209
- PipeID
- P00681
- Time
- 11:25 PM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3870
- Sewer Name
- 01 HOOPER AVENUE-COMPTON CREEK TRUNK
- City
- COMPTON
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 16
- Purpose
- Routine Assessment
- Project
- WO_602591_TV01050_NOV2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 27 in.
- Width
- 27 in.
- Upstream MH
- 01 0016
- Downstream MH
- 01 0015
- Dir. of Survey
- Downstream
- Length Surveyed
- 390.8 ft.
- Total Length
- 390.8 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2111
- O&M Rating
- 3
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 3
Observation photos (2)

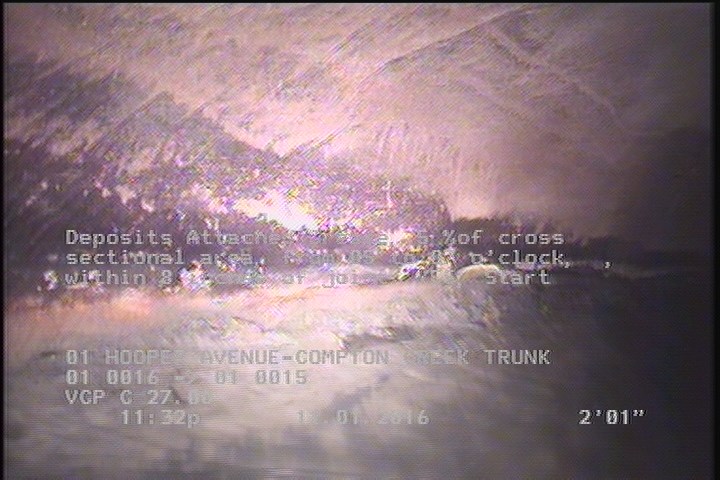

2.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

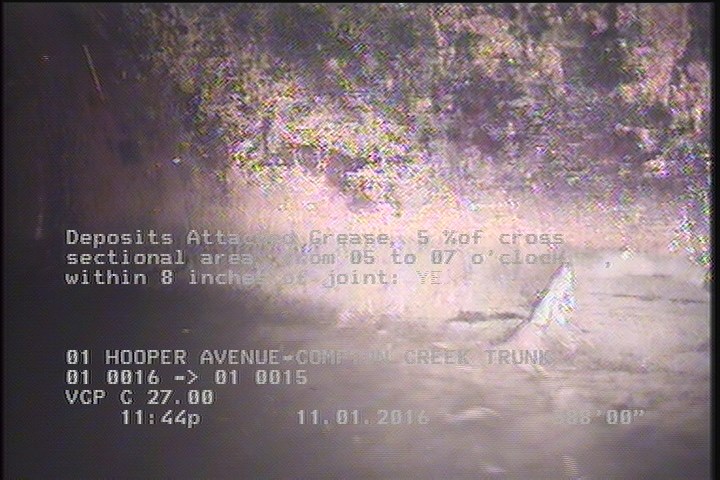

388 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 388 | VC | — |
| 0 | MWL | — |
| 390.8 | MGO | LATERAL AT MH 3 OCLOCK ACTIVE |
| 0 | MWM | — |
| 0 | MGO | ROACHES IN MH |
| 390.8 | MGO | LATERAL AT MH 9 OCLOCK MADE |
| 0 | MGO | LINING CIPP |
| 390.8 | AMH | 01 0015 |
| 2.1 | DAGS | — |
| 0 | AMH | 01 0016 |
| 388 | DAGS | — |
Properties (5)
- additional_info
- SC301950
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-11-01T23:25:53-07:00
- sewer_category
- Gravity
