Wastewater/Activity/PacpInspection/1.0Nov 8, 2016, 11:55 PM
02 1986_02 1121_08112016_015343.mp4
- Date
- 11/08/2016
- W/O
- 602268
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00351
- PipeID
- P02901
- Time
- 3:55 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3818
- Sewer Name
- 02 GARFIELD AVENUE EXTENSION TRUNK
- City
- MONTEBELLO
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 14
- Purpose
- Routine Assessment
- Project
- WO_602268_TV02061_NOV2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 02 1121
- Downstream MH
- 02 1986
- Dir. of Survey
- Upstream
- Length Surveyed
- 266.9 ft.
- Total Length
- 266.9 ft.
- Structural Index
- 3
- Structural Quick
- 3I00
- Structural Rating
- 156
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 156
Observation photos (2)

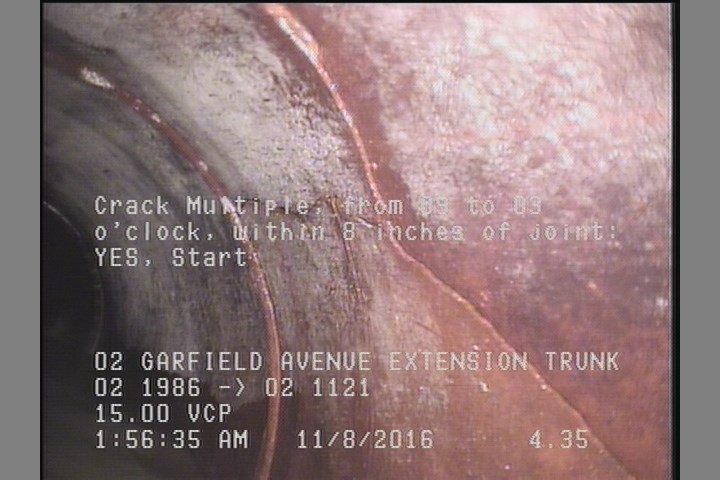

4.4 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

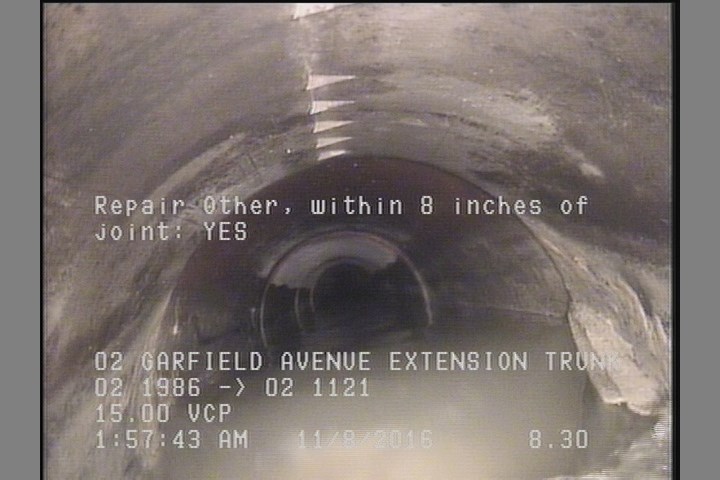

8.3 ft. - Repair Other, within 8 inches of joint: YES
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | MGO | CONNECTION AT MH 9 O'CLOCK CAPPED |
| 4.4 | CM | — |
| 0 | MWM | — |
| 266.9 | AMH | 02 1986 |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK CAPPED |
| 0 | MWL | — |
| 0 | AMH | 02 1121 |
| 8.3 | RPZ | — |
| 264.8 | CM | — |
Properties (5)
- additional_info
- SC304567
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-11-08T15:55:26-08:00
- sewer_category
- Gravity
