Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 7, 2016, 12:24 PM

  • 02 1134_02 1133_07112016_042501.mp4

Date
11/07/2016
W/O
602268
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00351
PipeID
P02916
Time
4:24 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3817
Sewer Name
02 GARFIELD AVENUE EXTENSION TRUNK
City
MONTEBELLO
Loc. details
Alley
Location Code
H
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
13
Purpose
Routine Assessment
Project
WO_602268_TV02061_NOV2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
02 1134
Downstream MH
02 1133
Dir. of Survey
Downstream
Length Surveyed
338.3 ft.
Total Length
338.3 ft.
Structural Index
3
Structural Quick
3L00
Structural Rating
201
O&M Index
1
O&M Quick
1200
O&M Rating
2
Overall Index
3
Overall Quick
—
Overall Rating
203
Pipe schematic from manhole 02 1134 to 02 1133
MH: 02 1134MH: 02 1133downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 02 11340.1 ft. MWM - Water Mark, 20 %of cross sectional area5 ft. CM - Crack Multiple, from 08 to 05 o'clock, within 8 inches of joint: YES, Start41 ft. RFL - Roots Fine Lateral, at 02 o'clock41 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"44.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"68.1 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"91.8 ft. RFL - Roots Fine Lateral, at 02 o'clock91.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"94.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"121.5 ft. TB - Tap Break-In, at 12 o'clock, -, within 8 inches of joint: NO, 6"137.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"140.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"187.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"190.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"238.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"244.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"268.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"295.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"338.3 ft. MGO - General Observation - CONNECTION AT MH 12 O'CLOCK338.3 ft. AMH - Downstream Manhole, Survey Ends - 02 1133338.3 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK338.3 ft. CM - Crack Multiple, from 08 to 05 o'clock, within 8 inches of joint: YES, Finish

Observation photos (5)

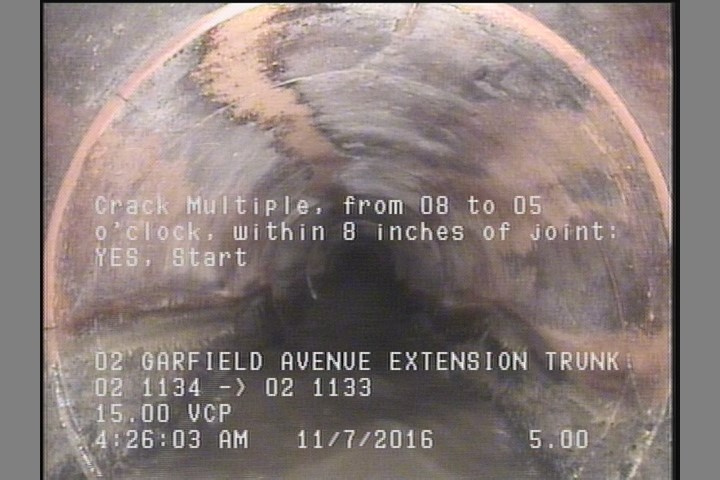

  • Crack Multiple, from 08 to 05 o'clock, within 8 inches of joint: YES, Start

    5 ft. - Crack Multiple, from 08 to 05 o'clock, within 8 inches of joint: YES, Start

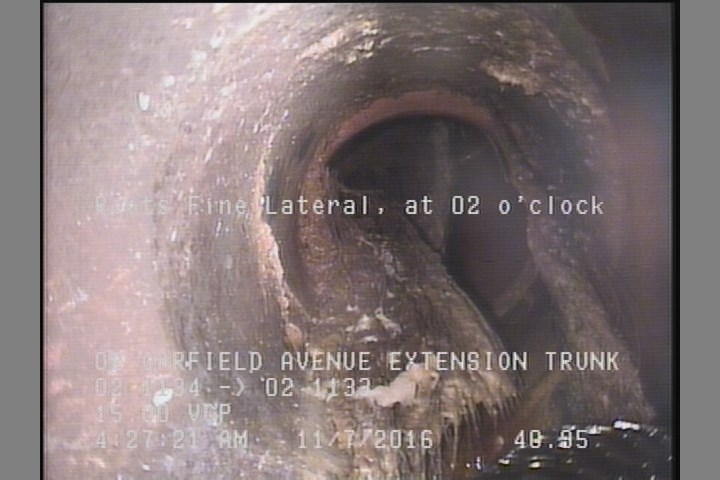

  • Roots Fine Lateral, at 02 o'clock

    41 ft. - Roots Fine Lateral, at 02 o'clock

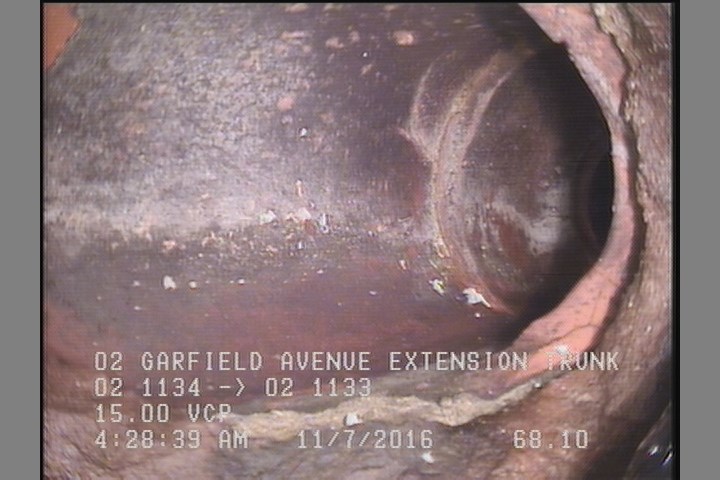

  • Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"

    68.1 ft. - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"

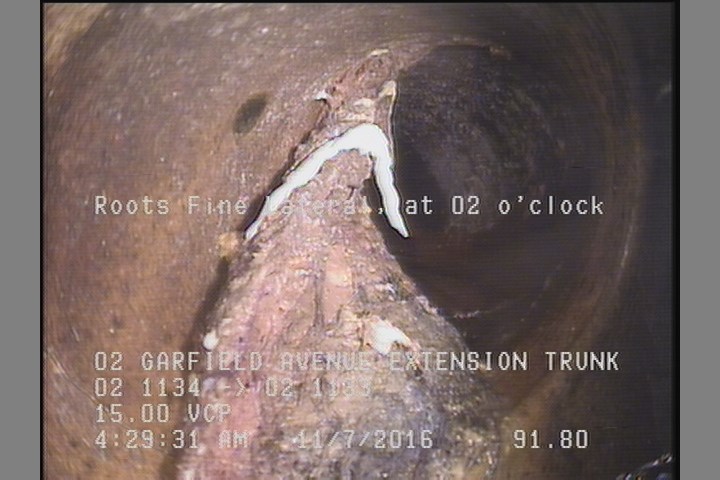

  • Roots Fine Lateral, at 02 o'clock

    91.8 ft. - Roots Fine Lateral, at 02 o'clock

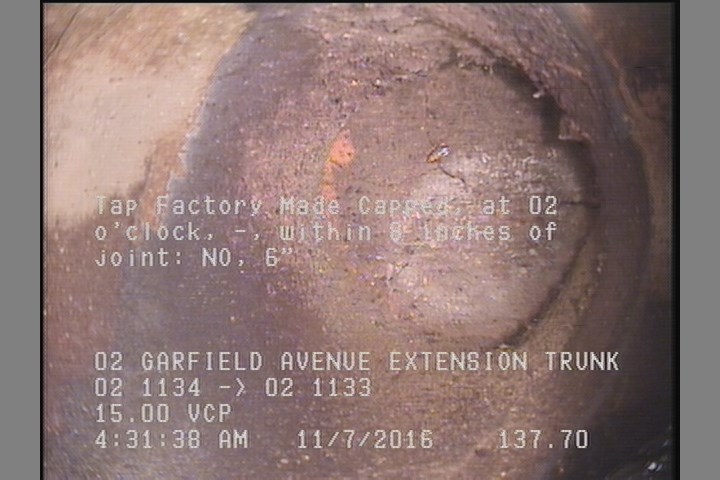

  • Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"

    137.7 ft. - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"

All inspections of P02916Work order 602268

Observations (24)

DistanceCodeObservation
338.3MGOCONNECTION AT MH 12 O'CLOCK
0.1MWM—
68.1TB—
338.3AMH02 1133
268.2TFC—
140.7TFC—
187.8TF—
190.2TFC—
91.8RFL—
0MWL—
0AMH02 1134
94.5TFC—
121.5TB—
295.1TF—
238.7TFC—
137.7TFC—
91.8TF—
41RFL—
338.3MGOCONNECTION AT MH 9 O'CLOCK
244.9TF—
5CM—
44.1TF—
41TF—
338.3CM—

Properties (5)

additional_info
SC304566
custom_field_two
3
customer
LACSD
datetime
2016-11-07T04:24:00-08:00
sewer_category
Gravity
