Wastewater/Activity/PacpInspection/1.0Nov 4, 2016, 07:35 AM
02 1138_02 1137_11042016_003555.mp4
- Date
- 11/04/2016
- W/O
- 602268
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00351
- PipeID
- P02921
- Time
- 12:35 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3907
- Sewer Name
- 02 GARFIELD AVENUE EXTENSION TRUNK
- City
- MONTEBELLO
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 13
- Purpose
- Routine Assessment
- Project
- WO_602268_TV02061_NOV2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 02 1138
- Downstream MH
- 02 1137
- Dir. of Survey
- Downstream
- Length Surveyed
- 295.1 ft.
- Total Length
- 295.1 ft.
- Structural Index
- 3
- Structural Quick
- 3J00
- Structural Rating
- 165
- O&M Index
- 2
- O&M Quick
- 412K
- O&M Rating
- 120
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 285
Observation photos (4)

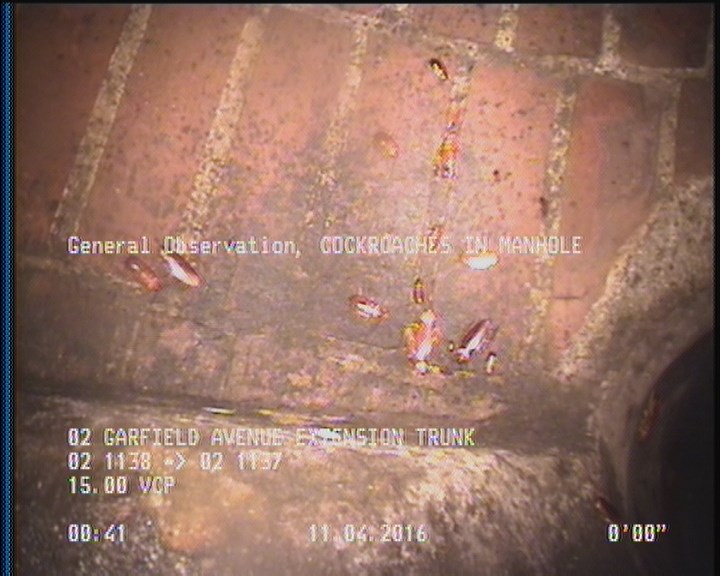

0 ft. - General Observation - COCKROACHES IN MANHOLE

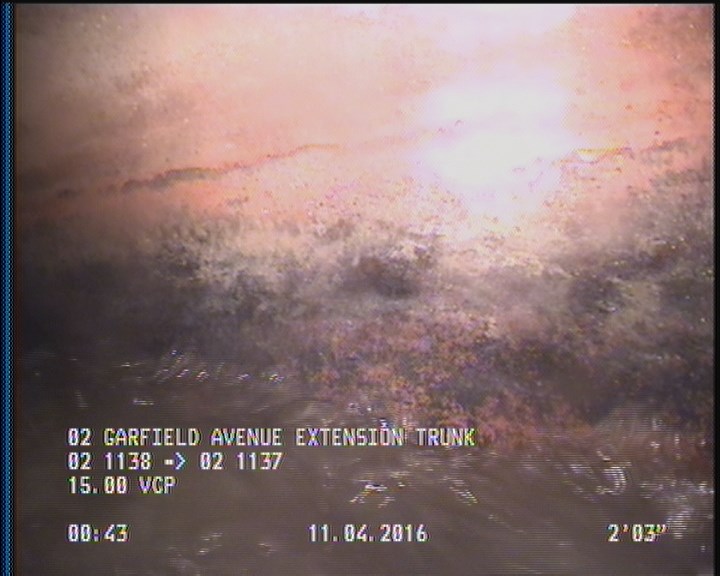

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

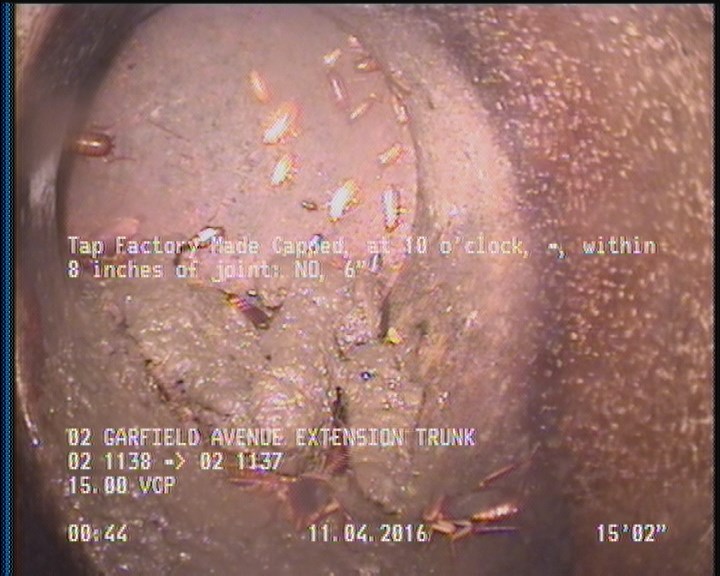

15.2 ft. - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"

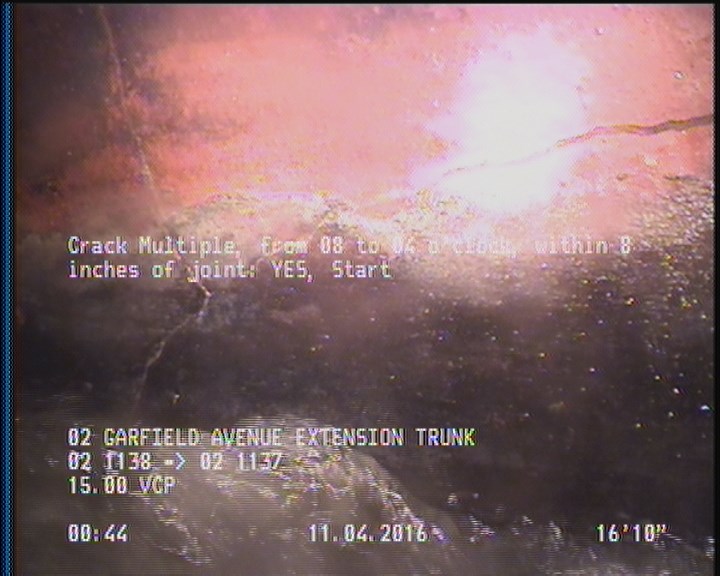

16.8 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 293.8 | DAGS | — |
| 293.8 | CM | — |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 16.8 | CM | — |
| 214.7 | TFC | — |
| 0 | AMH | 02 1138 |
| 295.1 | AMH | 02 1137 |
| 0 | MWM | — |
| 63.3 | TFC | — |
| 162.7 | TFC | — |
| 0 | MWL | — |
| 2 | DAGS | — |
| 15.2 | TFC | — |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 114.9 | TFC | — |
Properties (5)
- additional_info
- SC306345
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-11-04T00:35:44-07:00
- sewer_category
- Gravity
