Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 4, 2016, 05:50 AM

  • 02 1142_02 2108_11032016_231224.mp4

Date
11/03/2016
W/O
602268
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00351
PipeID
P02926
Time
10:50 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3907
Sewer Name
02 GARFIELD AVENUE EXTENSION TRUNK
City
MONTEBELLO
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
13
Purpose
Routine Assessment
Project
WO_602268_TV02061_NOV2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
02 1142
Downstream MH
02 2108
Dir. of Survey
Downstream
Length Surveyed
8.1 ft.
Total Length
8.1 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
3
O&M Quick
4122
O&M Rating
8
Overall Index
3
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole 02 1142 to 02 2108
MH: 02 1142MH: 02 2108downstream0 ft. AMH - Upstream Manhole, Survey Begins - 02 11420 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MWL - Water Level, 50 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start6.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish8.1 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 4 O'CLOCK8.1 ft. MGO - General Observation - COCKROACHES IN MANHOLE8.1 ft. AMH - Downstream Manhole, Survey Ends - 02 2108

Observation photos (3)

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

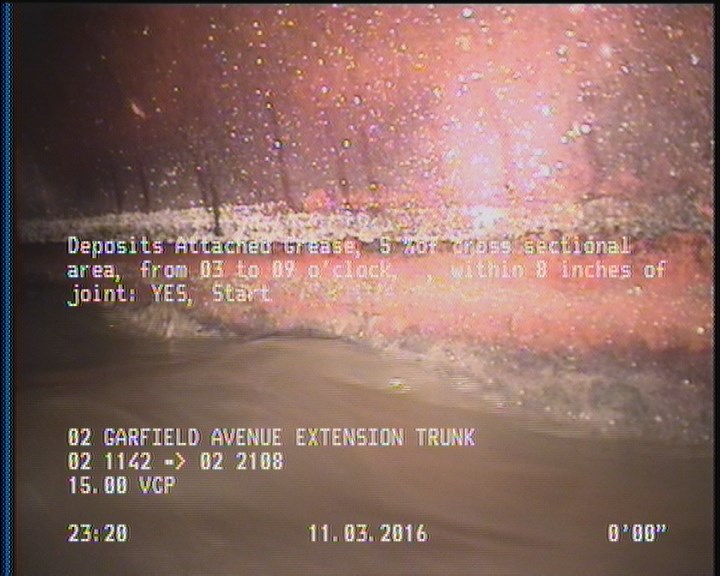

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

  • General Observation - COCKROACHES IN MANHOLE

    8.1 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P02926Work order 602268

Observations (9)

DistanceCodeObservation
8.1MGOACTIVE CONNECTION AT MH 4 O'CLOCK
6.3DAGS—
0AMH02 1142
0MWM—
2DAGS—
8.1MGOCOCKROACHES IN MANHOLE
0MGOCOCKROACHES IN MANHOLE
0MWL—
8.1AMH02 2108

Properties (5)

additional_info
SC306345
custom_field_two
4
customer
LACSD
datetime
2016-11-03T22:50:53-07:00
sewer_category
Gravity
