Wastewater/Activity/PacpInspection/1.0Nov 4, 2016, 06:39 AM
02 1141_02 1140_11032016_234008.mp4
- Date
- 11/03/2016
- W/O
- 602268
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00351
- PipeID
- P02924
- Time
- 11:39 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3907
- Sewer Name
- 02 GARFIELD AVENUE EXTENSION TRUNK
- City
- MONTEBELLO
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 13
- Purpose
- Routine Assessment
- Project
- WO_602268_TV02061_NOV2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 02 1141
- Downstream MH
- 02 1140
- Dir. of Survey
- Downstream
- Length Surveyed
- 317.5 ft.
- Total Length
- 317.5 ft.
- Structural Index
- 3
- Structural Quick
- 3K00
- Structural Rating
- 186
- O&M Index
- 2
- O&M Quick
- 412L
- O&M Rating
- 133
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 319
Observation photos (6)

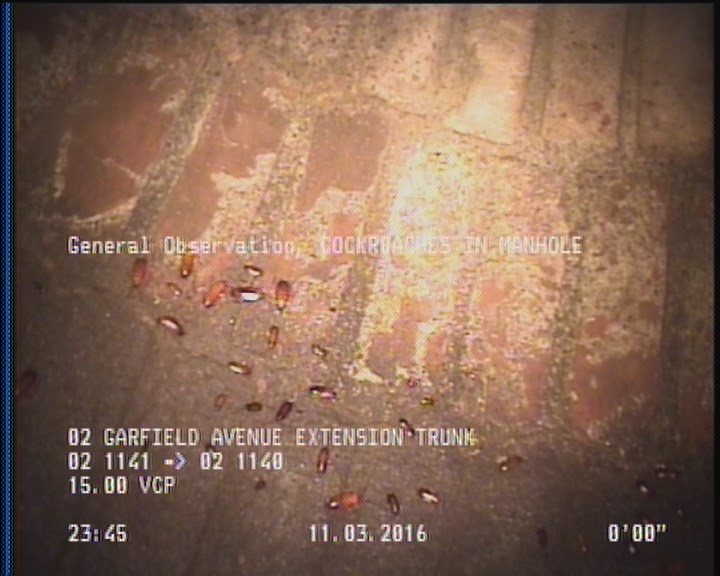

0 ft. - General Observation - COCKROACHES IN MANHOLE

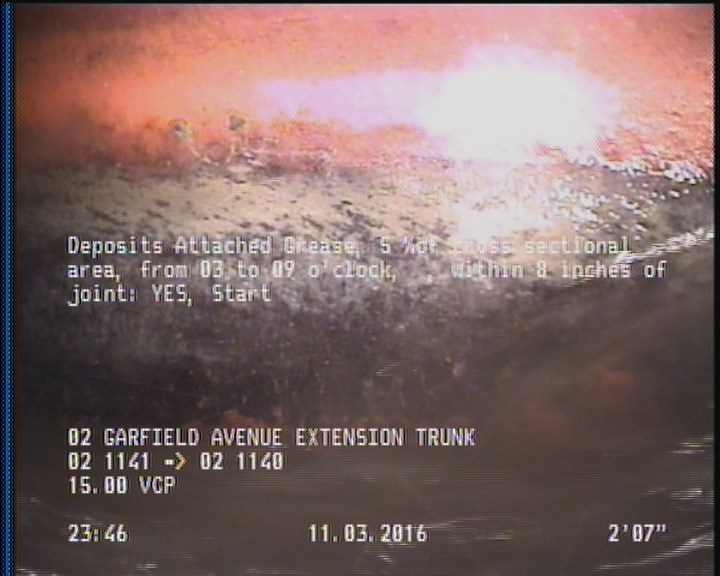

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

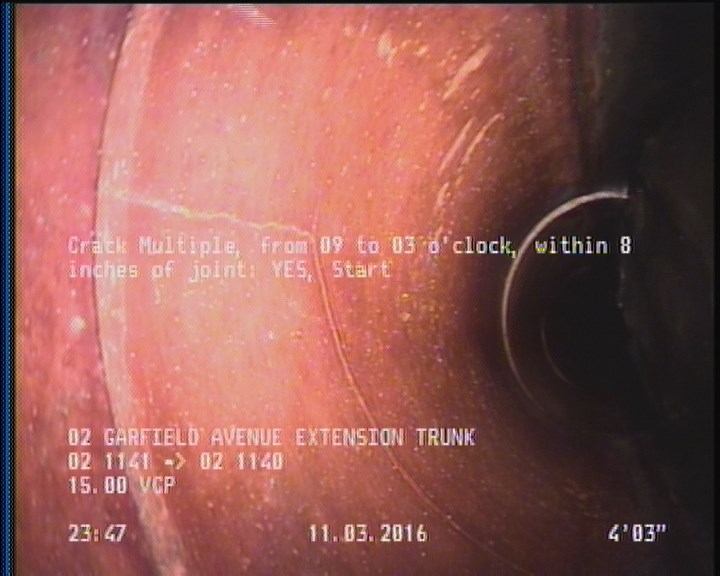

4.2 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

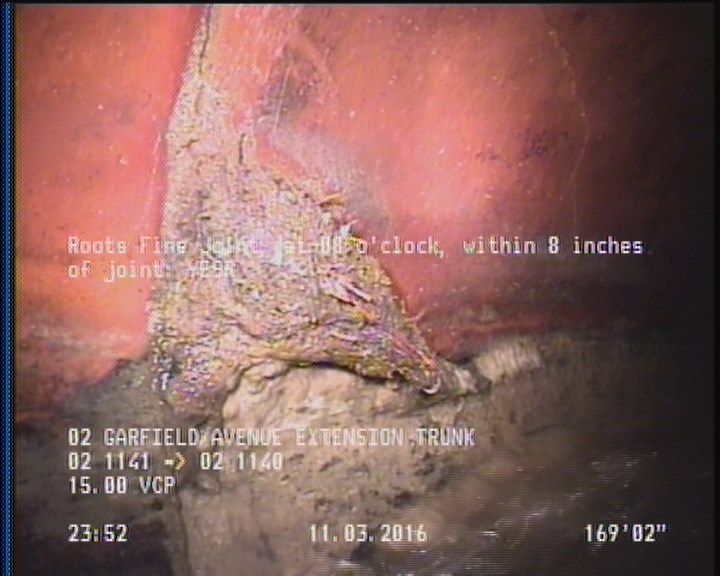

169.2 ft. - Roots Fine Joint, at 08 o'clock, within 8 inches of joint: YESR

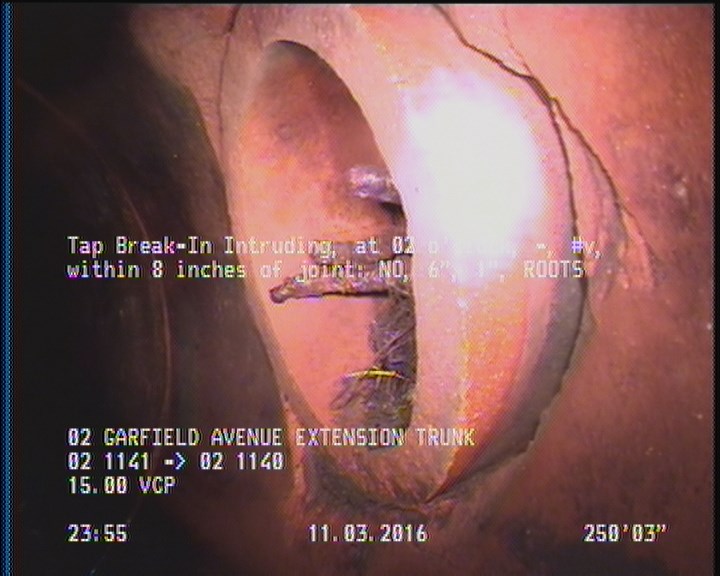

250.2 ft. - Tap Break-In Intruding, at 02 o'clock, -, #v, within 8 inches of joint: NO, 6", 1" - ROOTS

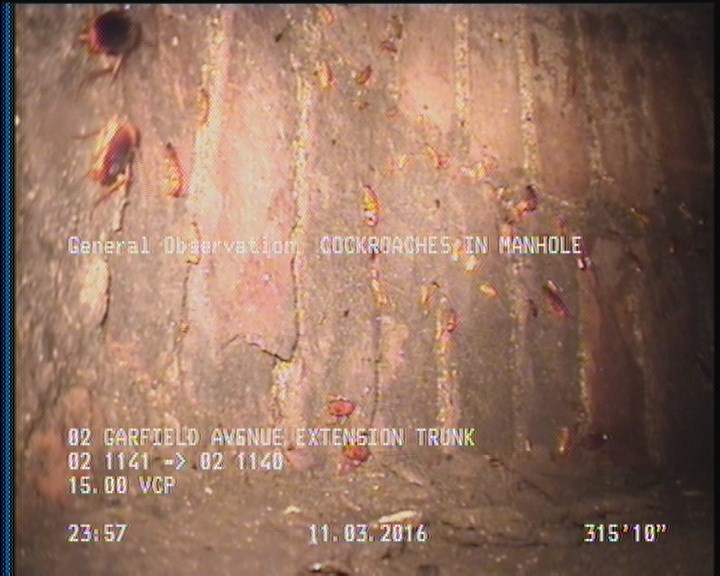

315.9 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (20)
| Distance | Code | Observation |
|---|---|---|
| 128.4 | TFC | — |
| 0 | MWL | — |
| 317.5 | MGO | CAPPED CONNECTION AT MH 3 O'CLOCK |
| 315.9 | DAGS | — |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 0 | AMH | 02 1141 |
| 250.2 | TBI | ROOTS |
| 74.7 | TBA | — |
| 2 | DAGS | — |
| 77.7 | TFC | — |
| 315.9 | MGO | COCKROACHES IN MANHOLE |
| 317.5 | MGO | ACTIVE CONNECTION AT MH 10 O'CLOCK |
| 229.9 | TFC | — |
| 317.5 | AMH | 02 1140 |
| 178.7 | TFC | — |
| 4.2 | CM | — |
| 169.2 | RFJ | — |
| 0 | MWM | — |
| 315.9 | CM | — |
| 26.2 | TFC | — |
Properties (5)
- additional_info
- SC306345
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-11-03T23:39:52-07:00
- sewer_category
- Gravity
