Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 7, 2016, 11:40 AM

  • 02 1990_02 1135_07112016_034414.mp4

Date
11/07/2016
W/O
602268
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00351
PipeID
P02918
Time
3:40 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3817
Sewer Name
02 GARFIELD AVENUE EXTENSION TRUNK
City
MONTEBELLO
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
13
Purpose
Routine Assessment
Project
WO_602268_TV02061_NOV2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
02 1135
Downstream MH
02 1990
Dir. of Survey
Upstream
Length Surveyed
79.7 ft.
Total Length
79.7 ft.
Structural Index
3
Structural Quick
3B00
Structural Rating
45
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
45
Pipe schematic from manhole 02 1135 to 02 1990
MH: 02 1135MH: 02 1990upstream0 ft. AMH - Upstream Manhole, Survey Ends - 02 19900 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish0 ft. MGO - General Observation - CONNECTION AT MH 12 O'CLOCK59.8 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start64.5 ft. CM - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES71.9 ft. CM - Crack Multiple, from 11 to 02 o'clock, within 8 inches of joint: YES75.6 ft. CM - Crack Multiple, from 12 to 03 o'clock, within 8 inches of joint: YES79.7 ft. AMH - Downstream Manhole, Survey Begins - 02 113579.7 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK79.7 ft. MWM - Water Mark, 25 %of cross sectional area79.7 ft. MWL - Water Level, 10 %of cross sectional area

Observation photos (4)

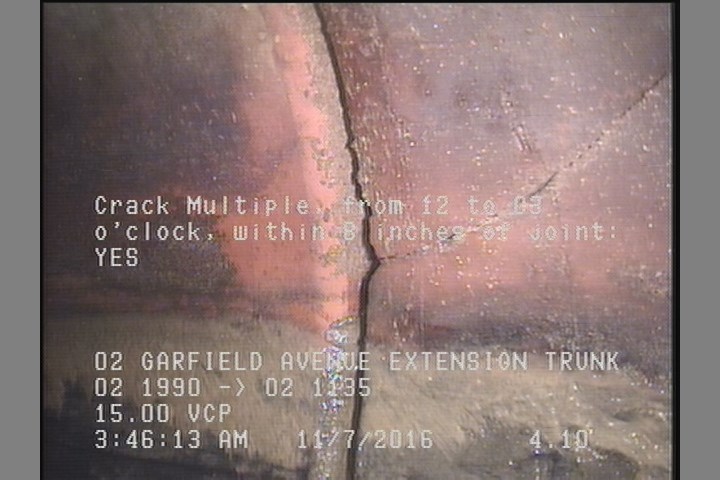

  • Crack Multiple, from 12 to 03 o'clock, within 8 inches of joint: YES

    4.1 ft. - Crack Multiple, from 12 to 03 o'clock, within 8 inches of joint: YES

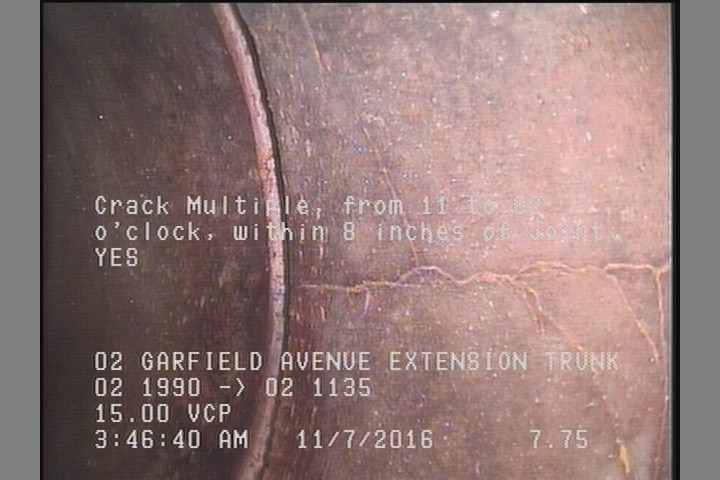

  • Crack Multiple, from 11 to 02 o'clock, within 8 inches of joint: YES

    7.8 ft. - Crack Multiple, from 11 to 02 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

    15.2 ft. - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

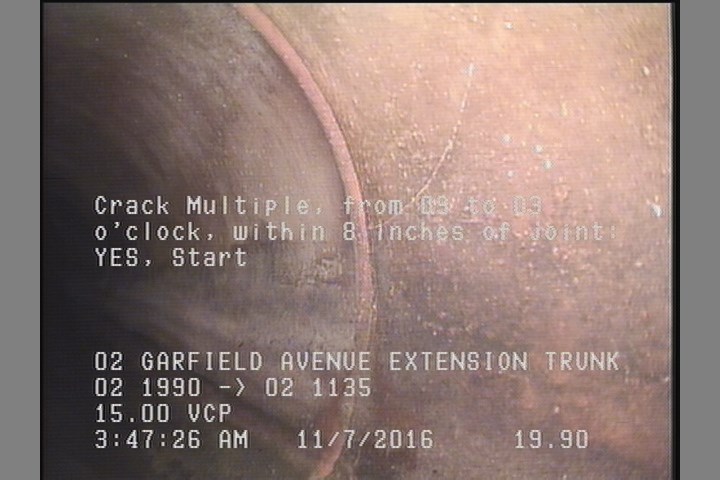

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    19.9 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P02918Work order 602268

Observations (11)

DistanceCodeObservation
79.7AMH02 1990
7.8CM—
0AMH02 1135
0MGOCONNECTION AT MH 9 O'CLOCK
0MWM—
4.1CM—
15.2CM—
79.7CM—
79.7MGOCONNECTION AT MH 12 O'CLOCK
19.9CM—
0MWL—

Properties (4)

custom_field_two
3
customer
LACSD
datetime
2016-11-07T03:40:47-08:00
sewer_category
Gravity
